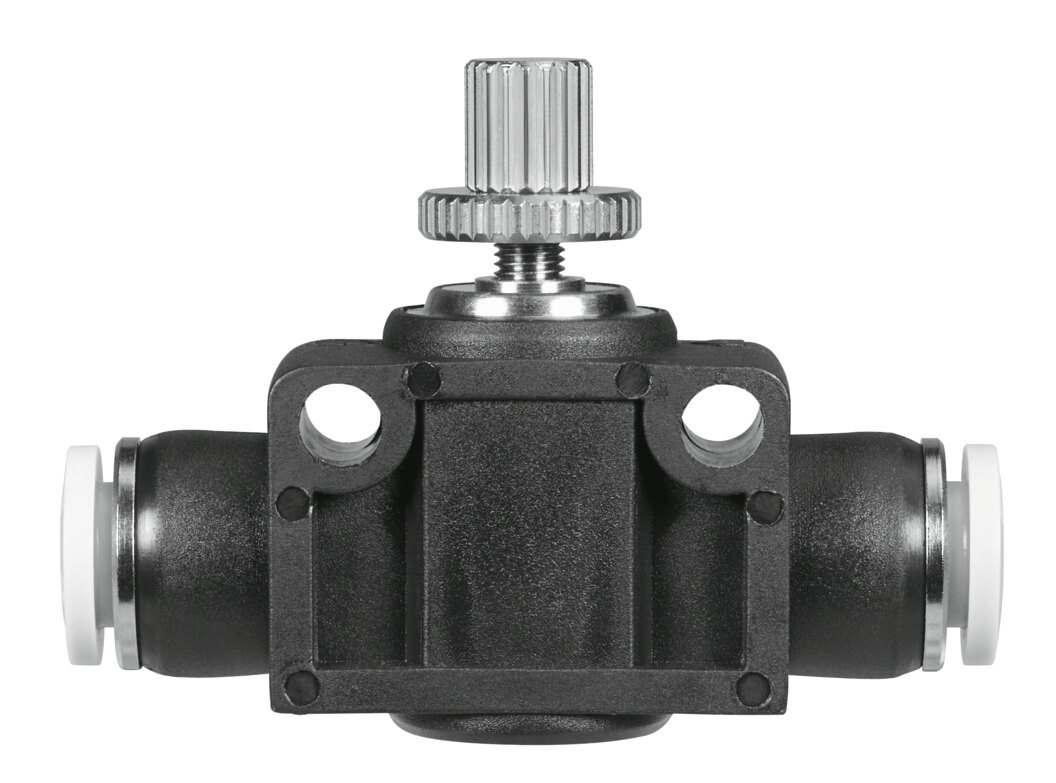

One-way flow control valve QB-1/4, 597.46 l/min GR-QB-1/4-U - Festo 534682
The GR-QB-1/4-U one-way flow control valve throttles the air flow in one direction, adjustably. Main values: port QB-1/4, nominal flow in flow control direction 597.46 l/min, operating pressure -0.951 to 7.998 bar. In the non-return direction, 635.593 to 699.153 l/min pass unthrottled. Weight 27 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
597.46 l/min standard nominal flow rate in flow control direction: the GR-QB-1/4-U one-way flow control valve throttles the air flow in one direction, adjustably. In the non-return direction, 635.593 to 699.153 l/min pass unthrottled.
Benefits
- Flow rate: standard nominal flow rate in flow control direction 597.46 l/min, in non-return direction 635.593 to 699.153 l/min
- Pressure range: -0.951 to 7.998 bar operating pressure
- Connections: QB-1/4
- Paint compatibility: LABS conformity VDMA24364 zone III
- Materials: housing reinforced PBT, seals NBR
- Temperature: 0 to 60 °C ambient temperature
Applications
Used for speed control of pneumatic actuators. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: with through-hole. Lubricated operation possible, then required.
Technical data
| Type | GR-QB-1/4-U |
|---|---|
| Festo part number | 534682 |
| Valve function | One-way flow control function |
| Pneumatic connection, port 1 | QB-1/4 |
| Pneumatic connection, port 2 | QB-1/4 |
| Type of actuation | Manual |
| Adjustment component | Slotted screw |
| Type of mounting | With through-hole |
| Standard nominal flow rate in flow control direction | 597.46 l/min |
| Standard nominal flow rate in non-return direction | 635.593 to 699.153 l/min |
| Operating pressure | -0.951 to 7.998 bar |
| Ambient temperature | 0 to 60 °C |
| Material housing | Reinforced PBT |
| Mounting position | Any |
| Standard flow rate in flow control direction (6 to 0 bar) | 991.5 l/min |
| Standard flow rate in non-return direction (6 to 0 bar) | 1347.458 to 1360.169 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Medium temperature | 0 to 60 °C |
| Product weight | 28.35 g |
| Material screw-in stud | Nickel-plated brass |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material release ring | POM |
| Material knurled head | Nickel-plated brass |
| Material adjusting screw | Nickel-plated brass |
| Weight (shipping) | 27 g |
| Weight | 0.027 kg |
| Manufacturer | Festo |
| Hersteller-Nr | GR-QB-1/4-U |
| EAN | 4052568342210 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Seal material | NBR |
| Medium | Compressed air |
| Function | Throttle check valve function |
| Actuation type | Manually |
| Series | GR |
| Betriebsdruck max [bar] | 7 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
