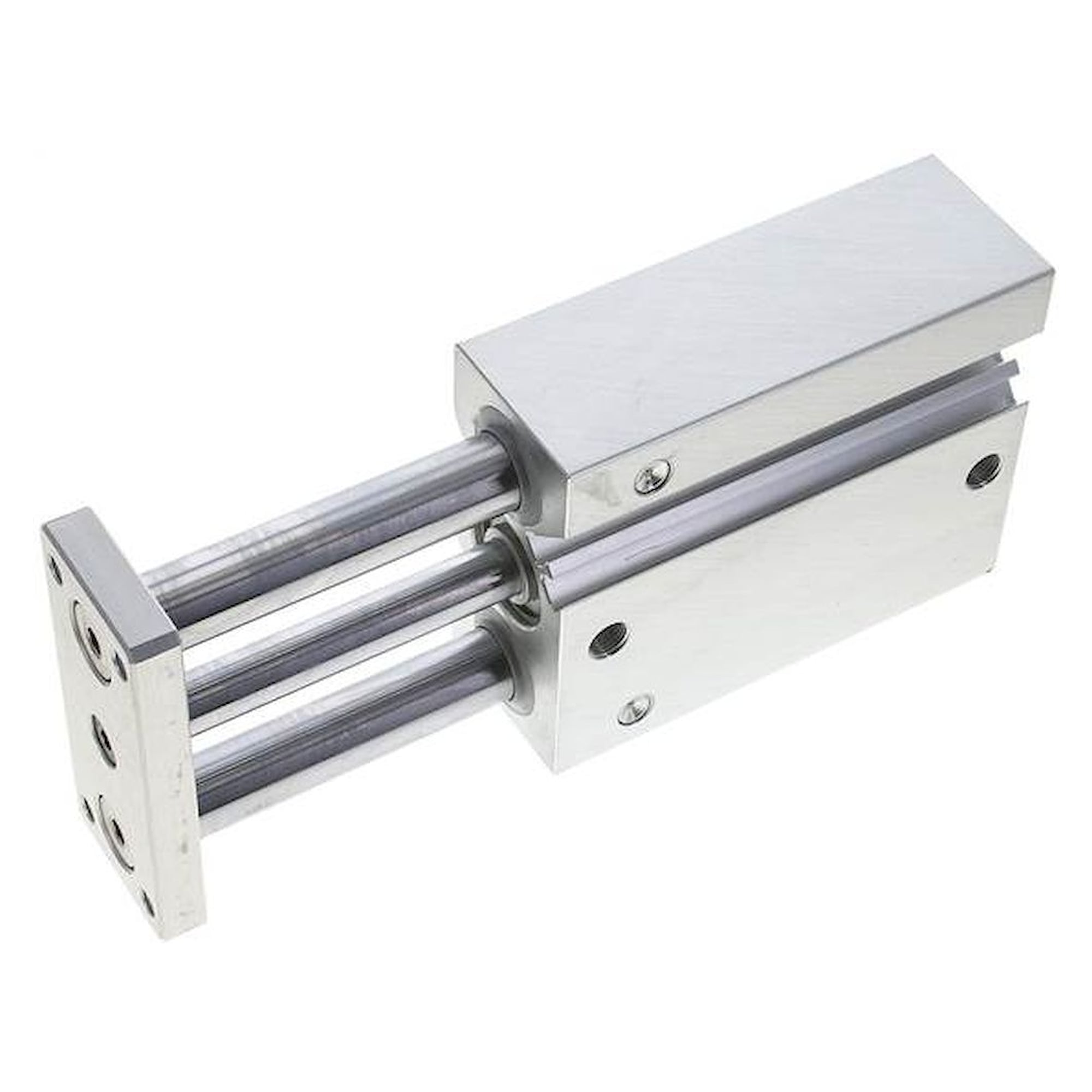

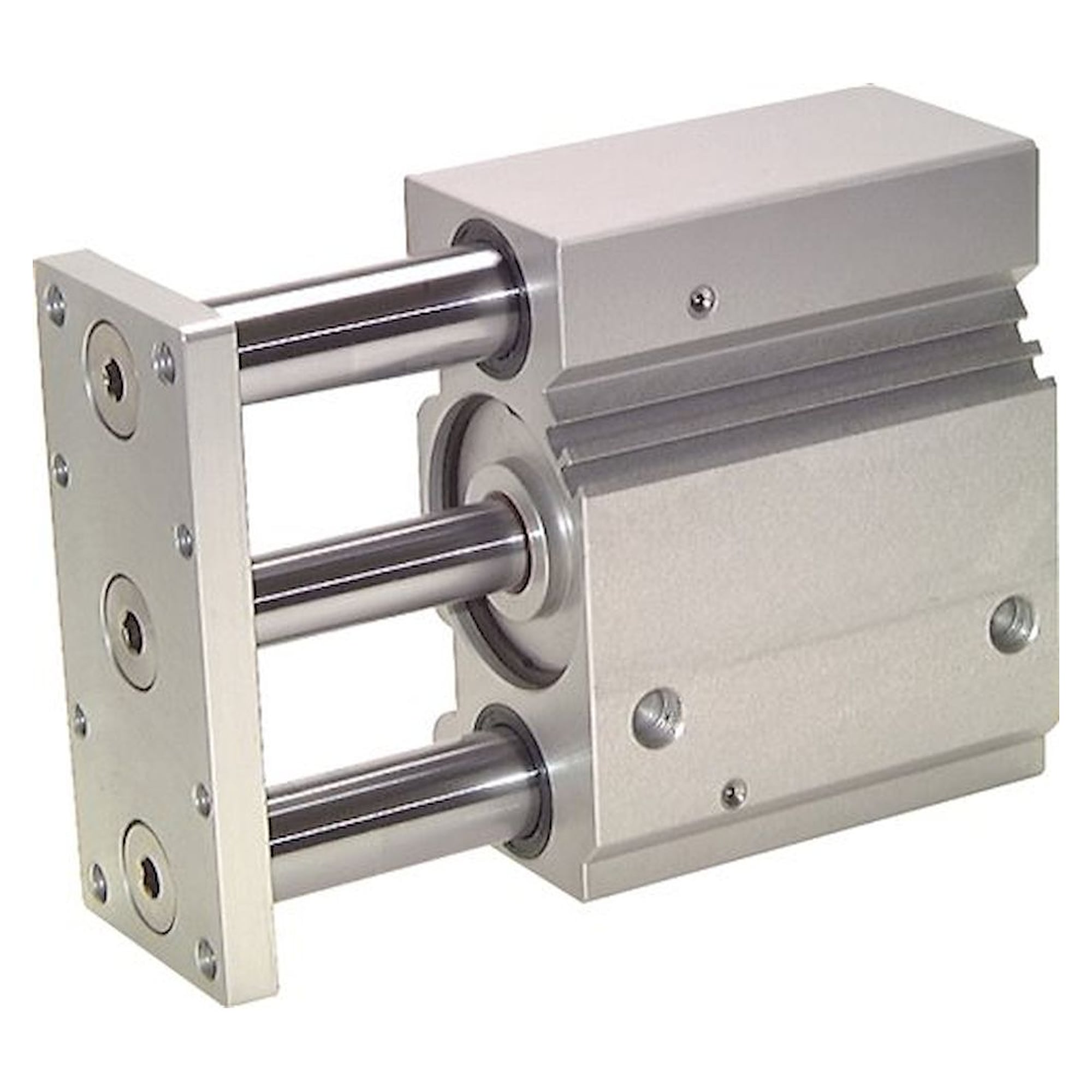

Guide cylinder, with ball bushing, pistons 25mm,stroke 75mm
Datasheet (PDF)
Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Guide cylinder, with ball bushing, pistons 25mm,stroke 75mm

Guide cylinder, with ball bushing, pistons 25mm,stroke 75mm

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€461.61 €387.91
Item FL-041553
Manufacturer no. ZDFM 25/75 K
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.ZDFM 25/75 K
EAN4050571810481
Customs tariff number84123100
ConditionNew
Add to Wish List Add to Compare
Artikel
FL-041553
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options

Piston diameter [mm] 25
Stroke [mm] 75
Version with ball bushing
F (compressed air port) G 1/8"
lateral force permissible [N] 60
permissible torque at the end-plate [Nm] 1,66
A [mm] 10
B [mm] 30,0
C [mm] 16
D [mm] 12
E1 [mm] 70
E2 [mm] 26
F1 [mm] 11,5
F2 [mm] 9
F3 [mm] 8
G1 [mm] 86
G2 [mm] 38
H [mm] 62
H1 [mm] 56
L1 [mm] 37,5
L2 [mm] 49,5
L3 [mm] 79,5
M1 [mm] 88
M2 [mm] 42
N [mm] 32
N1 [mm] 21
N2 [mm] 21
O1 [mm] 14
O2 [mm] 10
O3 [mm] 76
P1 M 6
Q [mm] 25
R [mm] 9,0
T1 [mm] 2,0
T2 [mm] 2,0
More Information
Hersteller-Nr ZDFM 25/75 K
Manufacturer Fluidics equipment
EAN 4050571810481
Weight 1.400000
Zolltarifnummer 84123100
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Original product
Artikelzustand New
Position sensing No
