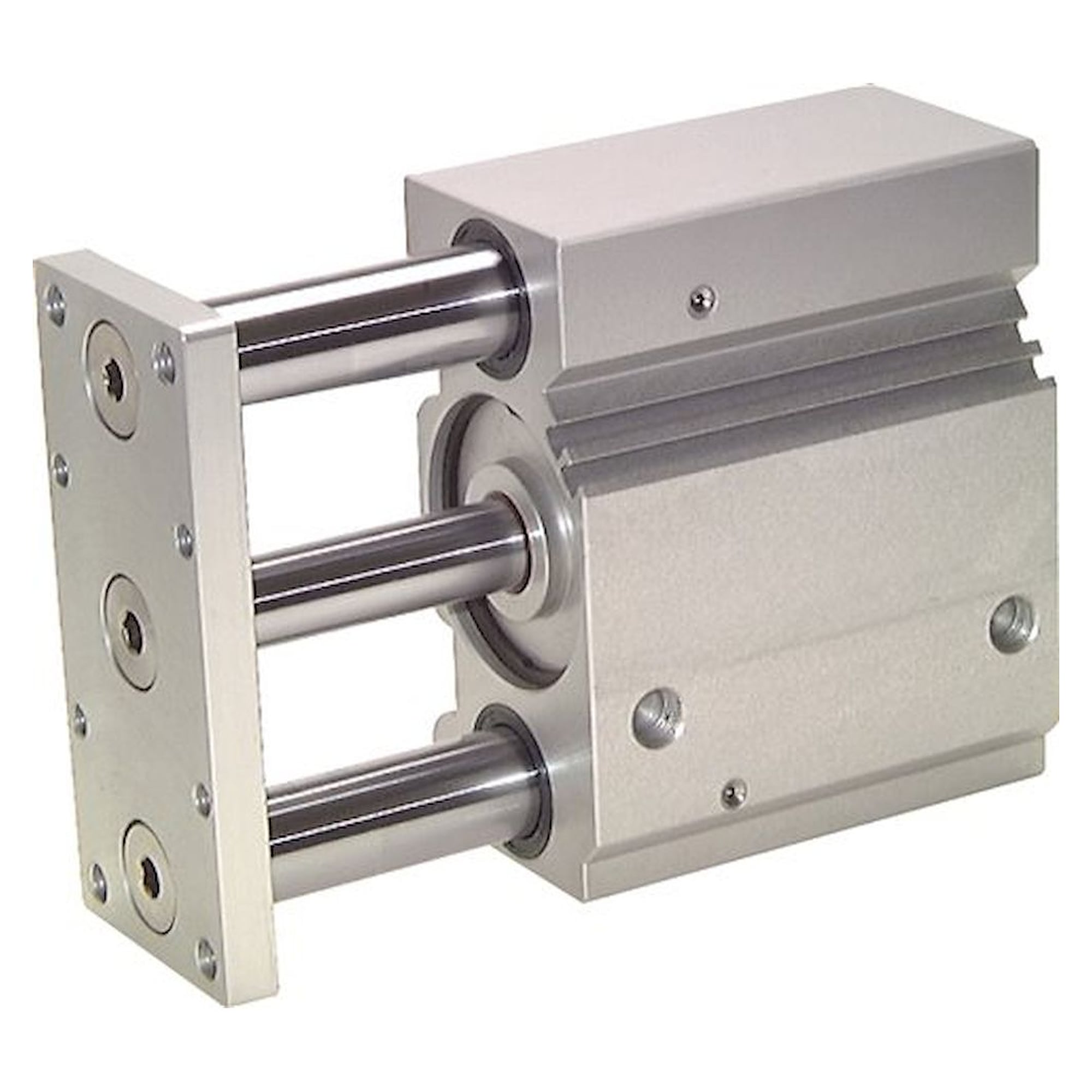

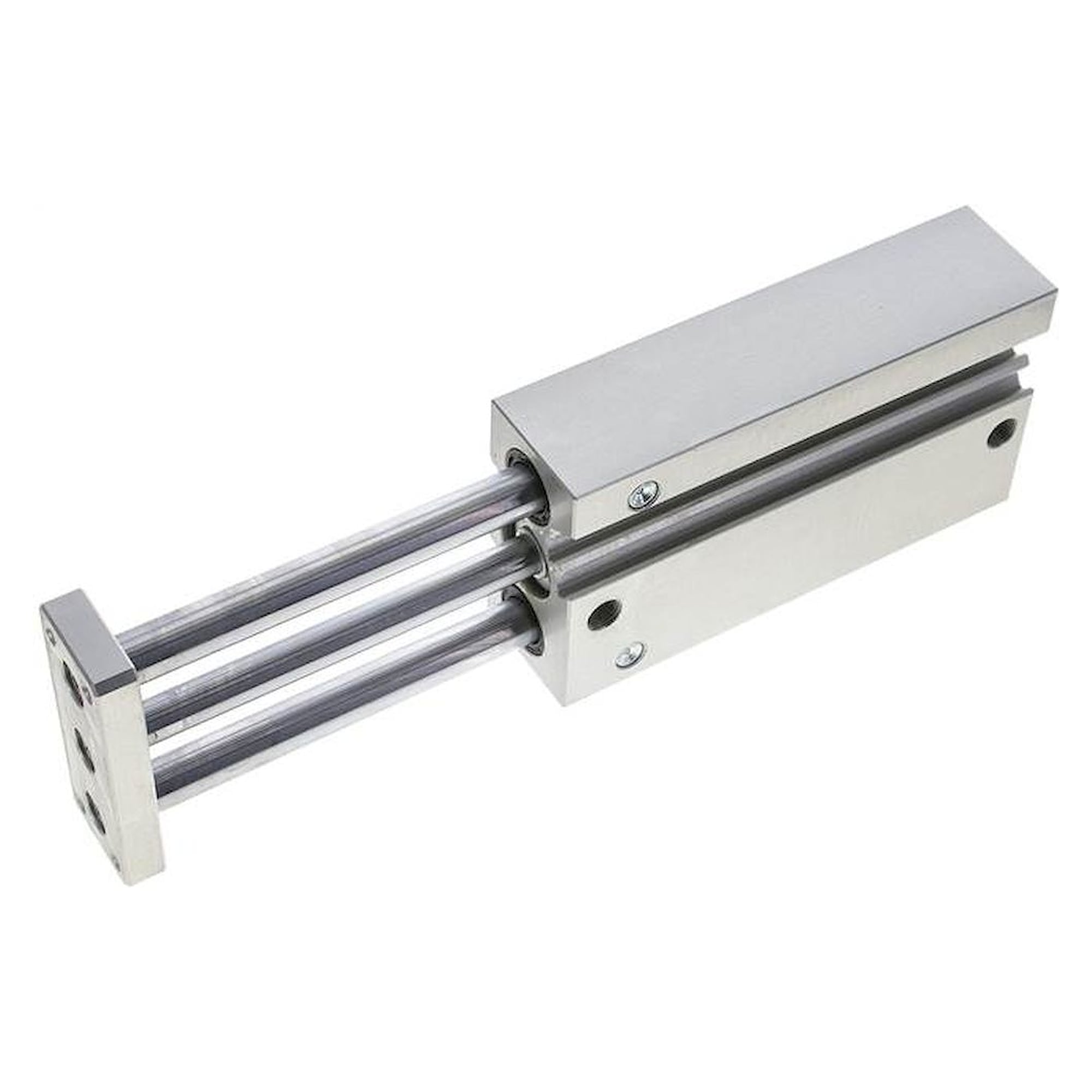

Name: Guide cylinder, with ball bushing, pistons 100mm,stroke 75mm
Brand: Fluidics equipment
SKU: FL-045923
Price: 1234.33 EUR
Availability: InStock

Guide cylinder, with ball bushing, pistons 100mm,stroke 75mm

Datasheet (PDF)

Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.

Guide cylinder, with ball bushing, pistons 100mm,stroke 75mm

FLUIDICS EQUIPMENT Original product

Net price (excl. VAT)

€1,234.33 €1,037.25

Item FL-045923

Manufacturer no. ZDFM 100/75 K

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.ZDFM 100/75 K

EAN4050571810009

Customs tariff number84123100

ConditionNew

Artikel

FL-045923

Frequently Bought Together

This Item: Guide cylinder, with ball bushing, pistons 100mm,stroke 75mm
€1,234.33 €1,037.25
EMC SGM 20/20. Führungszylinder, mit Gleitlager, Kolben 20mm,Hub 20mm
€133.65 €112.31
EMC SGM 16/25. Führungszylinder, mit Gleitlager, Kolben 16mm,Hub 25mm
€118.44 €99.53

Details

Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options

Piston diameter [mm]	100
Stroke [mm]	75
Version	with ball bushing
F (compressed air port)	G 1/4"
lateral force permissible [N]	1374
permissible torque at the end-plate [Nm]	63,72
A [mm]	16
B [mm]	21,0
C [mm]	30
D [mm]	32
E1 [mm]	190
E2 [mm]	80
E3 [mm]	89,0
F1 [mm]	21,0
F2 [mm]	19
F3 [mm]	40
G1 [mm]	221
G2 [mm]	108
H [mm]	170
H1 [mm]	170
L1 [mm]	66,0
L2 [mm]	84,0
L3 [mm]	105,0
M1 [mm]	224
M2 [mm]	112
N [mm]	62
O1 [mm]	25
O2 [mm]	15
O3 [mm]	200
P1	M 14
P2	M 10
Q [mm]	35
R [mm]	21,0
T1 [mm]	2,0
T2 [mm]	2,0

Information

More Information
Hersteller-Nr	ZDFM 100/75 K
Manufacturer	Fluidics equipment
EAN	4050571810009
Weight	10.000000
Zolltarifnummer	84123100
GPSR Herstellerdaten	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität	Original product
Artikelzustand	New
Position sensing	No
