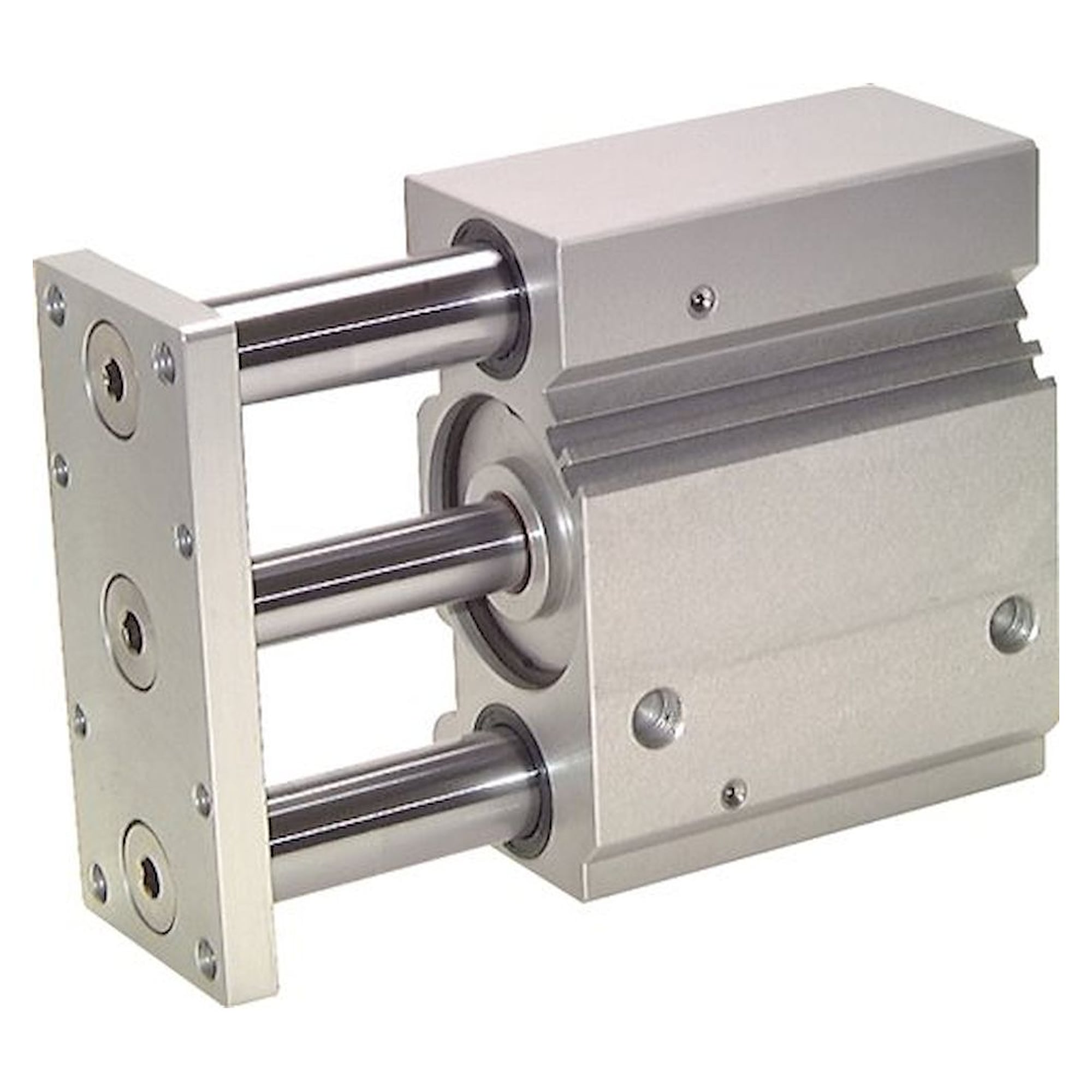

Guide cylinder, with slide bearing, pistons 40mm,stroke 75mm

Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options

Piston diameter [mm]	40
Stroke [mm]	75
Version	with slide bearing
F (compressed air port)	G 1/8"
lateral force permissible [N]	138
permissible torque at the end-plate [Nm]	2,96
A [mm]	10
B [mm]	17,5
C [mm]	20
D [mm]	16
E1 [mm]	106
E2 [mm]	30
E3 [mm]	38,0
F1 [mm]	14,0
F2 [mm]	11
F3 [mm]	21
G1 [mm]	122
G2 [mm]	48
H [mm]	90
H1 [mm]	90
L1 [mm]	44,0
L2 [mm]	56,0
L3 [mm]	73,5
M1 [mm]	124
M2 [mm]	51
N [mm]	38
O1 [mm]	17
O2 [mm]	10
O3 [mm]	110
P1	M 8
P2	M 6
Q [mm]	20
R [mm]	11,0
T1 [mm]	1,5
T2 [mm]	1,5
