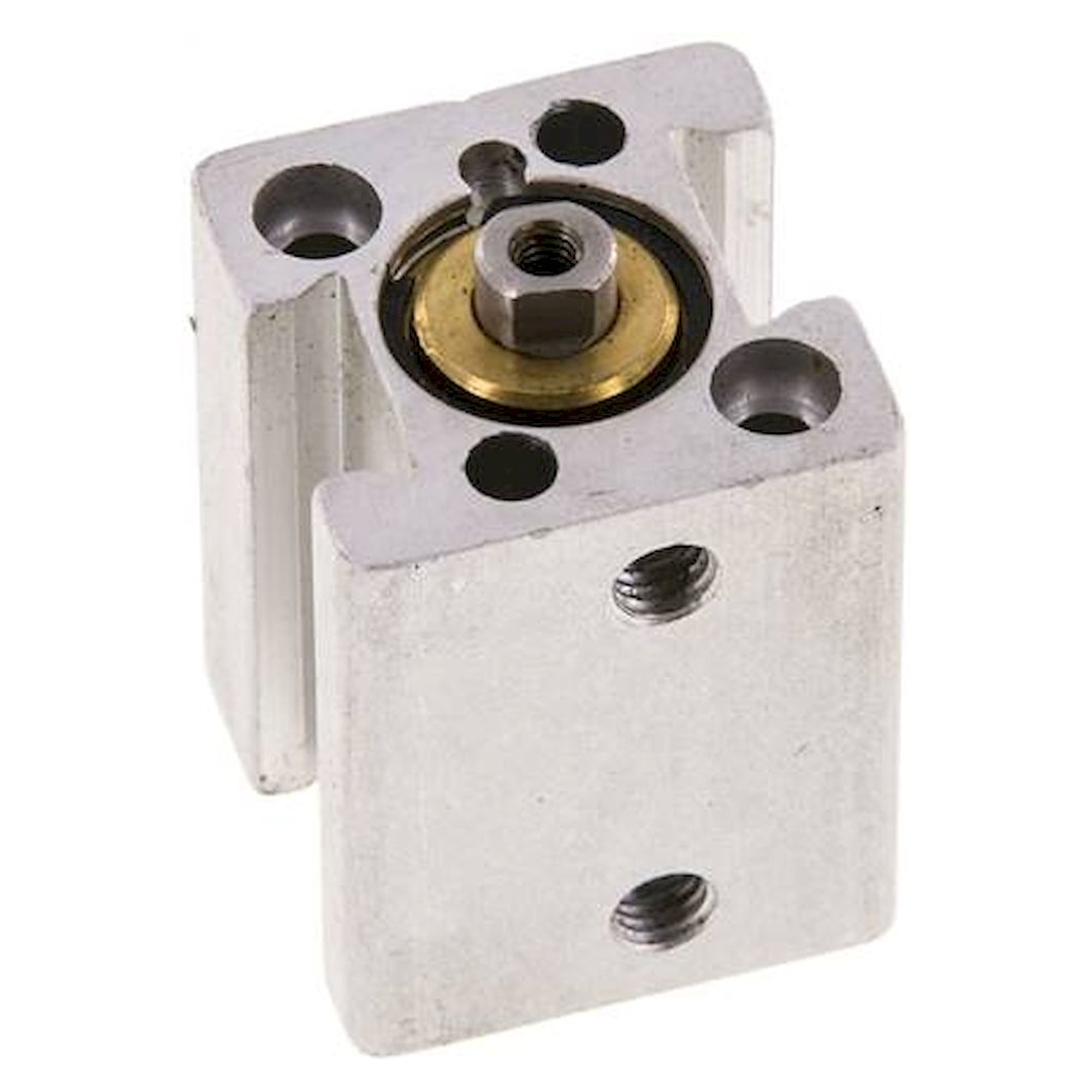

Double-acting short-stroke cylinder, bore 12 mm, stroke 5 mm, with magnetic piston, M 5 - Fluidics equipment
With only 5 mm stroke this double-acting short-stroke cylinder with 12 mm bore delivers a calculated 68 N push force at 6 bar. A magnetic piston is fitted, matching cylinder switches are type G. Operating pressure up to 10 bar, NBR seals for -20 to +80 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With a 12 mm bore and 5 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 68 N at 6 bar and 113 N at the maximum of 10 bar.
Why this cylinder
- Double-acting, calculated push force 68 N at 6 bar
- Piston rod thread M 3, rod made of 1.4305
- Magnetic piston for type G cylinder switches
- NBR seals for -20 to +80 °C
- Operating pressure up to 10 bar, M 5 compressed air port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 25.0 mm |
|---|---|
| Dimension B | 25 mm |
| Dimension D | 6 mm |
| Dimension F | 3.7 mm |
| Dimension G | 5.6 mm |
| Dimension J | 5.5 mm |
| Dimension K | 15.5 mm |
| Dimension L | 27.0 mm |
| Dimension Q | 3.5 mm |
| Dimension T | 6 mm |
| Dimension V | 5 mm |
| Dimension W | 3.5 mm |
Applications
Typical tasks are clamping and positioning workpieces, stoppers on conveyor lines or short pressing operations with 5 mm stroke.
Technical data
| Type | short-stroke cylinder |
|---|---|
| Function | double-acting |
| Bore | 12 mm |
| Stroke | 5 mm |
| Version | with magnetic piston |
| Piston rod thread C1 | M 3 |
| Compressed air port P | M 5 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 1.1 cm² |
| Push force at 6 bar (calculated) | 68 N |
| Push force at 10 bar (calculated) | 113 N |
| Weight | 48 g |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NDM 12/5 |
| EAN | 4050571523909 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 12 |
| Stroke [mm] | 5 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | M5 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
