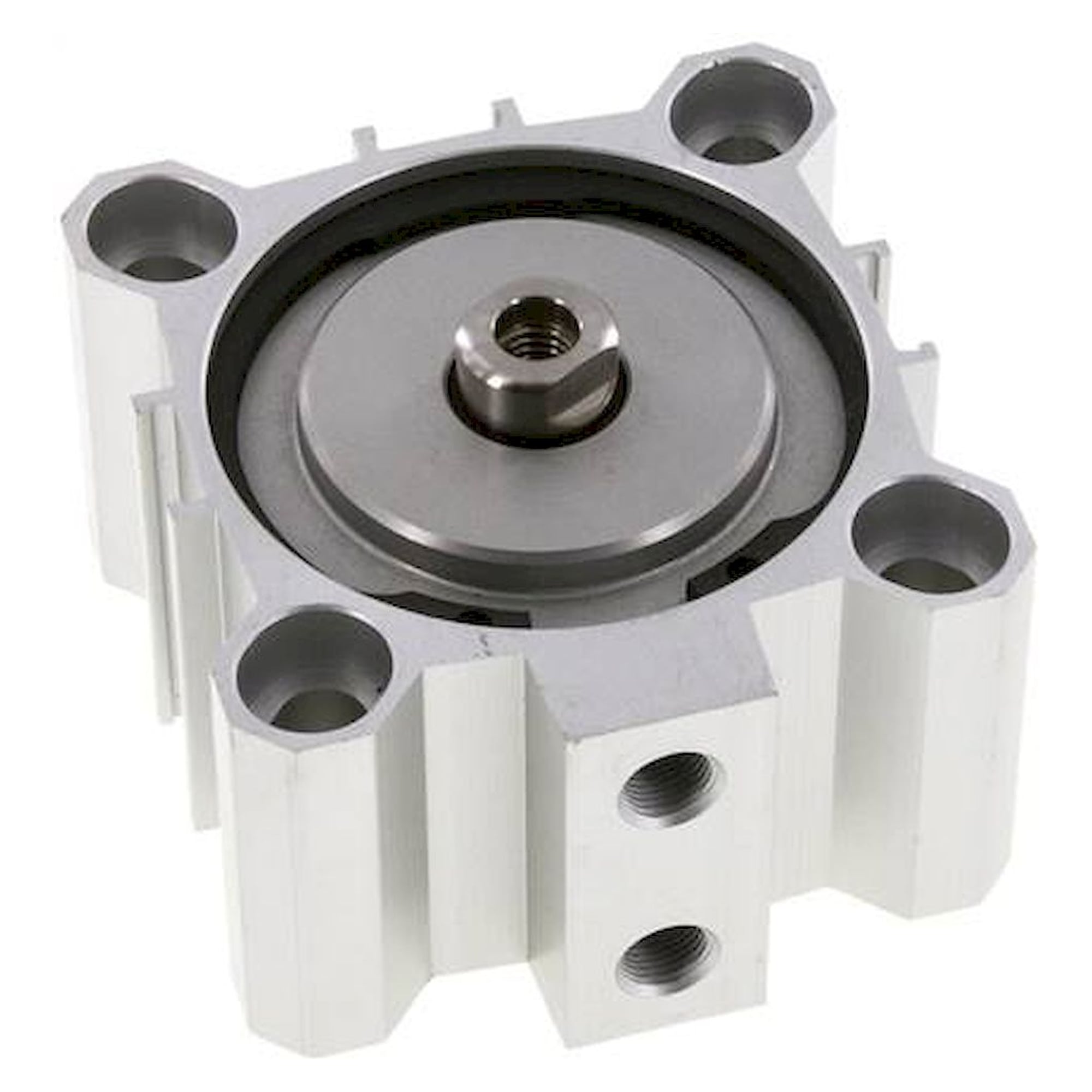

Short-stroke cylinders, double acting, piston 63 mm, stroke 10 mm

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€145.10 €121.93
excl. Shipping Cost
Available Fast shipping
Item FL-009775
Manufacturer no. ND 63/10
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.ND 63/10
EAN4050571523466
Customs tariff number84799070
ConditionNeu
Add to Wish List Add to Compare
Artikel
FL-009775
Short-stroke cylinders, double acting, piston 63 mm, stroke 10 mm
Pictures are for reference and may not be accurate, actual product may differ
Short-stroke cylinders, double acting, piston 63 mm, stroke 10 mm
Frequently Bought Together
Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm] 63
Stroke [mm] 10
Version without magnetic piston
C1 (piston rod thread) M 8
P (compressed air port) G 1/8"
Repair sets ND 63 REP
A [mm] 86,0
B [mm] 80
D [mm] 16
F [mm] 9,0
G [mm] 14,0
H [mm] 46,0
I [mm] 62
J [mm] 11,0
K [mm] 62,0
L [mm] 37,0
N [mm] 60,0
Q [mm] 8,8
S [mm] 80,0
T [mm] 14
V [mm] 13
W [mm] 7,0
X [mm] 50
Y [mm] 22
Z [mm] 30
AA [mm] 15,0
AB [mm] 12
More Information
Hersteller-Nr ND 63/10
Manufacturer Fluidics equipment
EAN 4050571523466
Weight 55.000000
Size -
Zolltarifnummer 84799070
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Originalprodukt
Artikelzustand Neu
