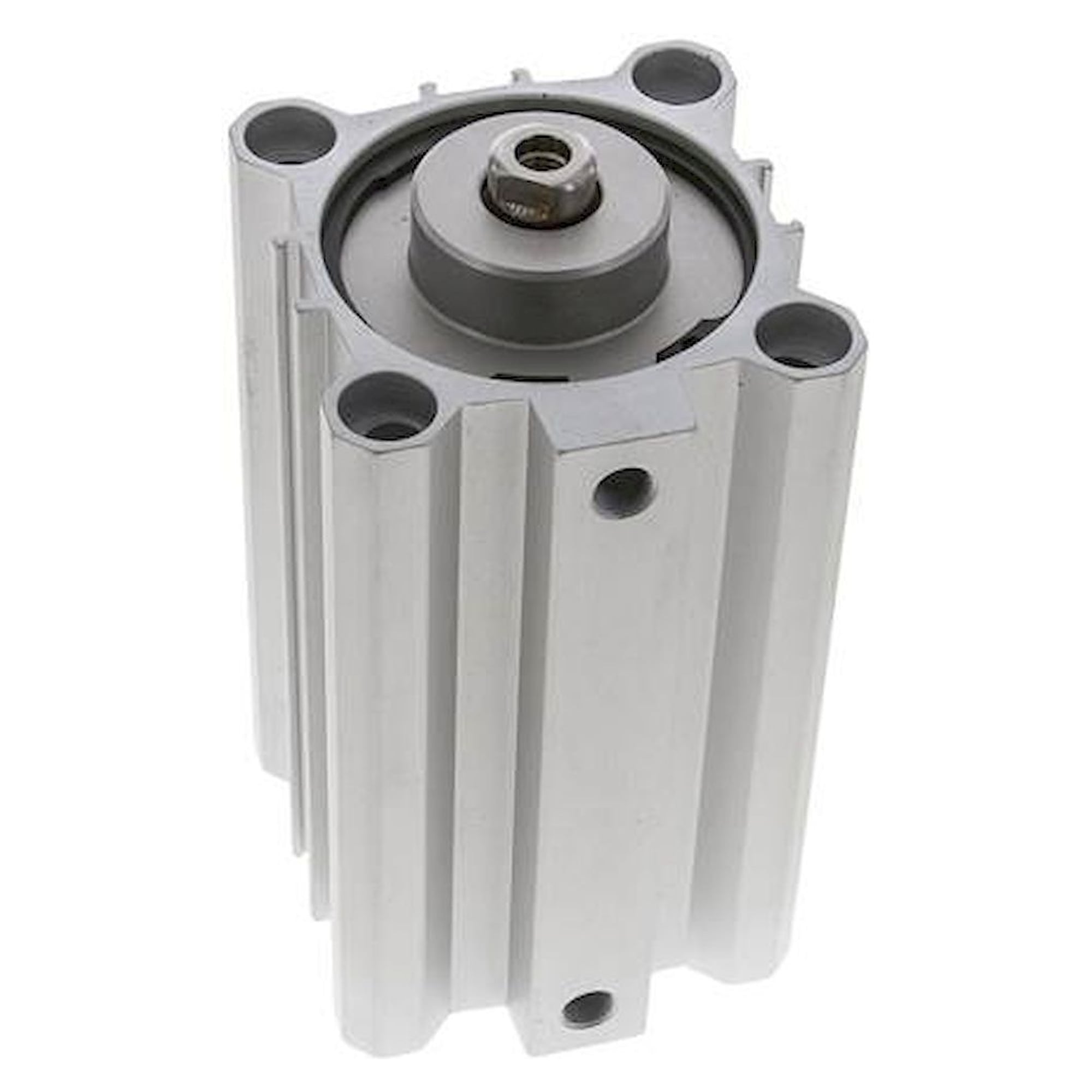

Double-acting short-stroke cylinder, bore 100 mm, stroke 25 mm, without magnetic piston, G 1/4 - Fluidics equipment
This short-stroke cylinder with 100 mm bore pushes with a calculated 4.7 kN at 6 bar over a 25 mm stroke. Without magnetic piston, suited to applications without end position sensing. Operating pressure up to 10 bar, NBR seals for -20 to +80 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With a 100 mm bore and 25 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 4.7 kN at 6 bar and 7.9 kN at the maximum of 10 bar.
Key benefits
- Double-acting, calculated push force 4.7 kN at 6 bar
- Stainless steel 1.4305 piston rod with M 12 thread
- Temperature range -20 to +80 °C with NBR seals
- Operating pressure up to 10 bar, G 1/4 compressed air port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 131.0 mm |
|---|---|
| Dimension B | 124 mm |
| Dimension D | 25 mm |
| Dimension F | 11.0 mm |
| Dimension G | 17.2 mm |
| Dimension H | 69.0 mm |
| Dimension I | 103 mm |
| Dimension J | 16.0 mm |
| Dimension K | 103.0 mm |
| Dimension L | 56.0 mm |
| Dimension N | 94.0 mm |
| Dimension Q | 11.0 mm |
| Dimension S | 124.0 mm |
| Dimension T | 20 mm |
| Dimension V | 22 mm |
| Dimension W | 10.0 mm |
| Dimension X | 80 mm |
| Dimension Y | 30 mm |
| Dimension Z | 50 mm |
| Dimension AA | 20.5 mm |
| Dimension AB | 14 mm |
Applications
The cylinder with 100 mm bore is used, for example, as a clamping element, end stop or ejector in fixture and special machine building.
Technical data
| Type | short-stroke cylinder |
|---|---|
| Function | double-acting |
| Bore | 100 mm |
| Stroke | 25 mm |
| Version | without magnetic piston |
| Piston rod thread C1 | M 12 |
| Compressed air port P | G 1/4 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 78.5 cm² |
| Push force at 6 bar (calculated) | 4.7 kN |
| Push force at 10 bar (calculated) | 7.9 kN |
| Weight | 2.1 kg |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | ND 100/25 |
| EAN | 4050571522698 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | ohne Magnetkolben |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 100 |
| Stroke [mm] | 25 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
