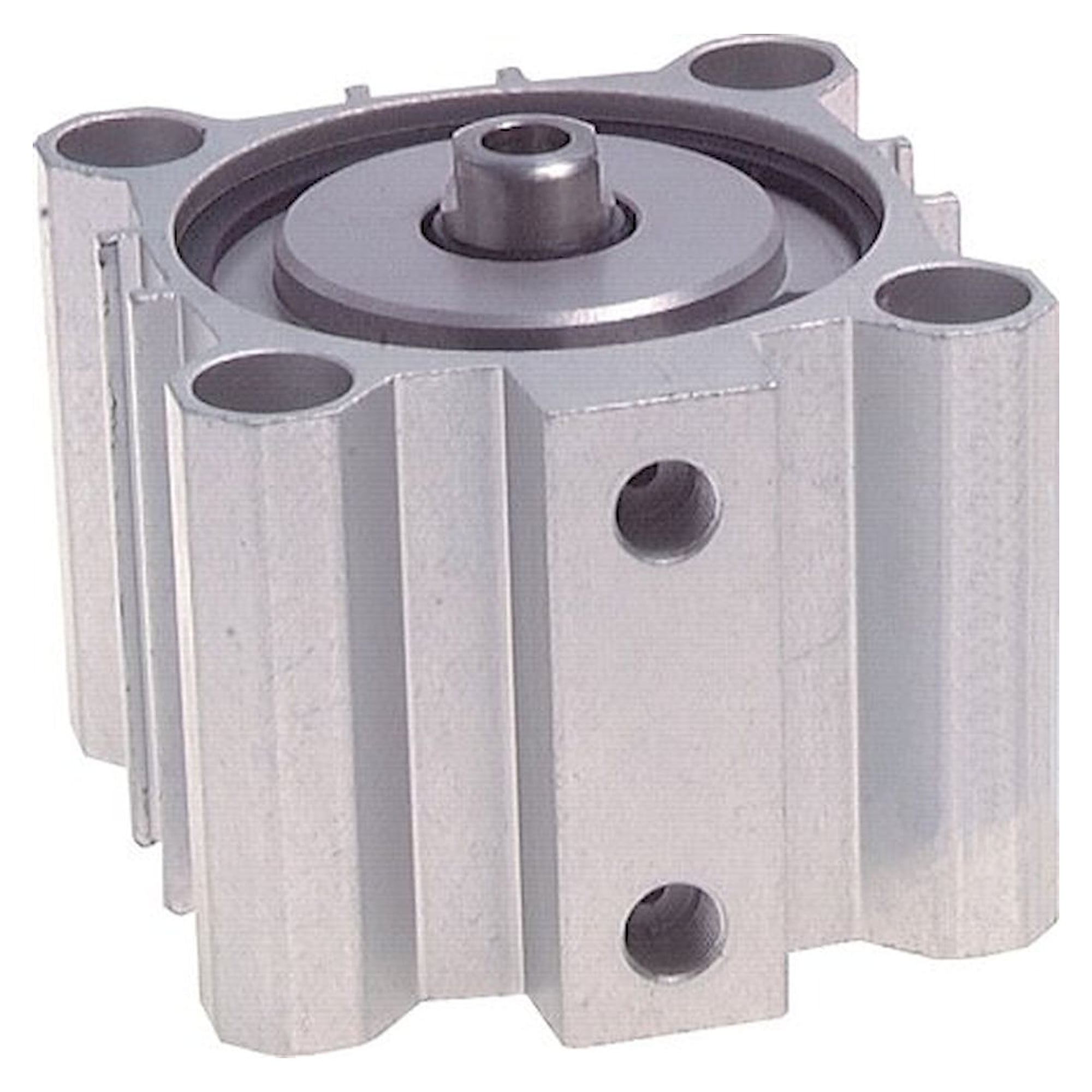

Double-acting short-stroke cylinder, bore 100 mm, stroke 80 mm, with magnetic piston, G 1/4 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

A 100 mm bore and 80 mm stroke give a calculated push force of 4.7 kN at 6 bar in a very compact unit. The magnetic piston allows end position sensing with type G cylinder switches. Operating pressure up to 10 bar, NBR seals for -20 to +80 °C.

Net
€302.39
excl. VAT
Item FL-253718
Manufacturer no. NDM 100/80
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Piston area 78.5 cm², stroke 80 mm: this short-stroke cylinder produces a calculated 4.7 kN at 6 bar and 7.9 kN at 10 bar operating pressure. The 100 mm piston is double-acting, both extending and retracting are driven by compressed air.

Why this cylinder

  • Pneumatic force in both directions, 4.7 kN push force at 6 bar (calculated)
  • Stainless steel 1.4305 piston rod with M 12 thread
  • Position sensing via magnetic piston and type G cylinder switches
  • Temperature range -20 to +80 °C with NBR seals
  • Operating pressure up to 10 bar, G 1/4 compressed air port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A131.0 mm
Dimension B124 mm
Dimension D25 mm
Dimension E56.0 mm
Dimension F11.0 mm
Dimension G17.2 mm
Dimension H69.0 mm
Dimension I103 mm
Dimension J16.0 mm
Dimension K103.0 mm
Dimension L56.0 mm
Dimension N94.0 mm
Dimension Q11.0 mm
Dimension S124.0 mm
Dimension T20 mm
Dimension U10.5 mm
Dimension V22 mm
Dimension W10.0 mm
Dimension X80 mm
Dimension Y30 mm
Dimension Z50 mm
Dimension AA20.5 mm
Dimension AB14 mm

Applications

Short-stroke cylinders of this size suit clamping, stopping, ejecting and embossing in fixtures where only 80 mm of travel is needed and space is tight.

Technical data

Typeshort-stroke cylinder
Functiondouble-acting
Bore100 mm
Stroke80 mm
Versionwith magnetic piston
Piston rod thread C1M 12
Compressed air port PG 1/4
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)78.5 cm²
Push force at 6 bar (calculated)4.7 kN
Push force at 10 bar (calculated)7.9 kN
Weight3.1 kg
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrNDM 100/80
EAN4050571523824
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]100
Stroke [mm]80
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
Temperaturbereich-20-80 °C
Temperature (max.)80

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
