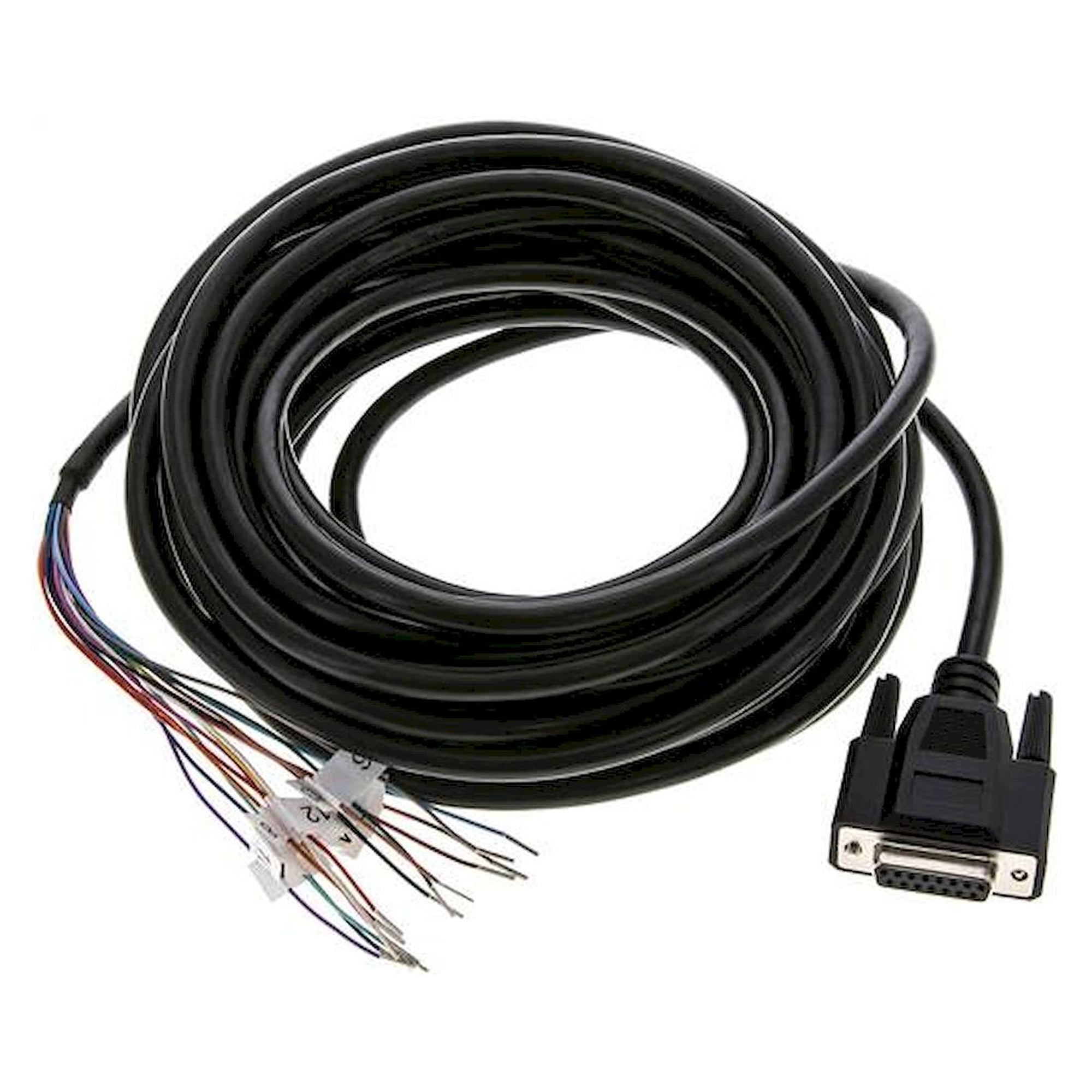

D-Sub connecting cable, 15-pin, 10 m
D-Sub connecting cable, 15-pin, 10 m
FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€132.64 €111.46
Item FL-571959
Manufacturer no. KAB DSUB15 10
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.KAB DSUB15 10
EAN4050571900335
Customs tariff number85369010
ConditionNeu
Artikel
FL-571959
Frequently Bought Together
- This Item: €132.64 €111.46
- Ind. proximity switch, M 18, SN10 - M 12 plug (A-coded, 4-pole) €174.98 €147.04
- Ind. proximity switch, M 30, SN10 - M 12 plug (A-coded, 4-pole) €96.04 €80.71
Description:
Pre-assembled connecting cables with a 9-pin, 15-pin, 25-pin, or 44-pin D-Sub socket on one side and loose cable ends on the other. The individual wires are provided with pin numbers and wire sleeves (44-pin: Cable identification in accordance with DIN 47100).
Temperature range:
0 to +80 °C
Voltage:
max. 20 V AC / 30 V DC, max. 1 A (44-pin: max. 2.5 A)
Protection class:
IP 40 (44-pin: IP 65)
Cable:
PVC cable (AWG 24) 9x 0.23 mm², 15x 0.23 mm² or 25x 0.23 mm² (44-pole: PVC cable (AWG 23) 44x 0.25 mm²)
Pre-assembled connecting cables with a 9-pin, 15-pin, 25-pin, or 44-pin D-Sub socket on one side and loose cable ends on the other. The individual wires are provided with pin numbers and wire sleeves (44-pin: Cable identification in accordance with DIN 47100).
Temperature range:
0 to +80 °C
Voltage:
max. 20 V AC / 30 V DC, max. 1 A (44-pin: max. 2.5 A)
Protection class:
IP 40 (44-pin: IP 65)
Cable:
PVC cable (AWG 24) 9x 0.23 mm², 15x 0.23 mm² or 25x 0.23 mm² (44-pole: PVC cable (AWG 23) 44x 0.25 mm²)
| Version | 15-pin |
| Cable length [MTR] | 10 |
| Hersteller-Nr | KAB DSUB15 10 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571900335 |
| Weight | 0.850000 |
| Zolltarifnummer | 85369010 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
| Position sensing | No |
