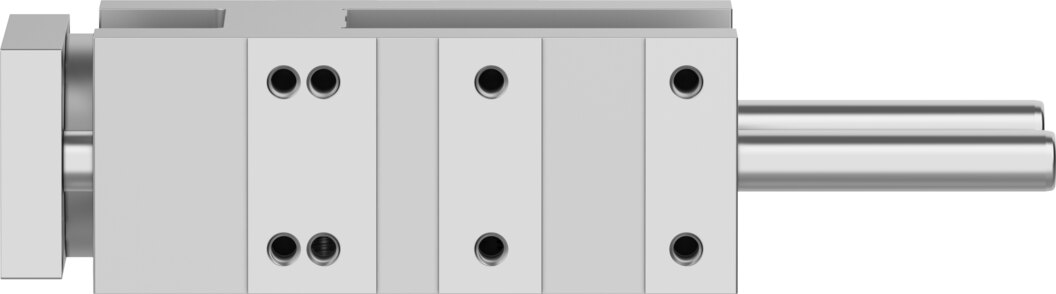

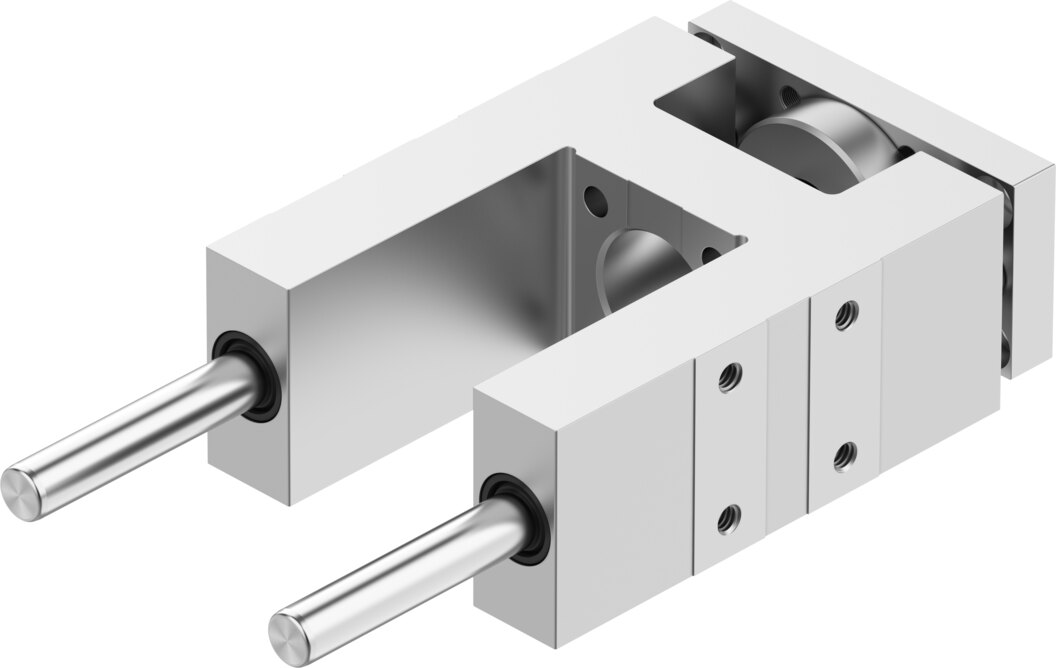

Guide unit with plain-bearing guide size 32 stroke 50 mm FENG-32-50-GF - Festo 8204059

The Festo guide unit FENG-32-50-GF in size 32 with plain-bearing guide keeps the piston rod torsion-free and relieves it of lateral forces, stroke 50 mm.

Benefits at a glance

• Plain-bearing guide, size 32, stroke 50 mm
• Displacement force 30 N
• Guide element made of high-alloy steel, housing made of wrought aluminium alloy, anodised
• Ambient temperature -20 to 80 °C
• Materials: RoHS compliant
• PWIS conformity VDMA24364-B2-L

Typical applications

The FENG-32-50-GF is used where a cylinder is to lift, push or position loads without rotation, for example in lifting units, stoppers and ejectors.
