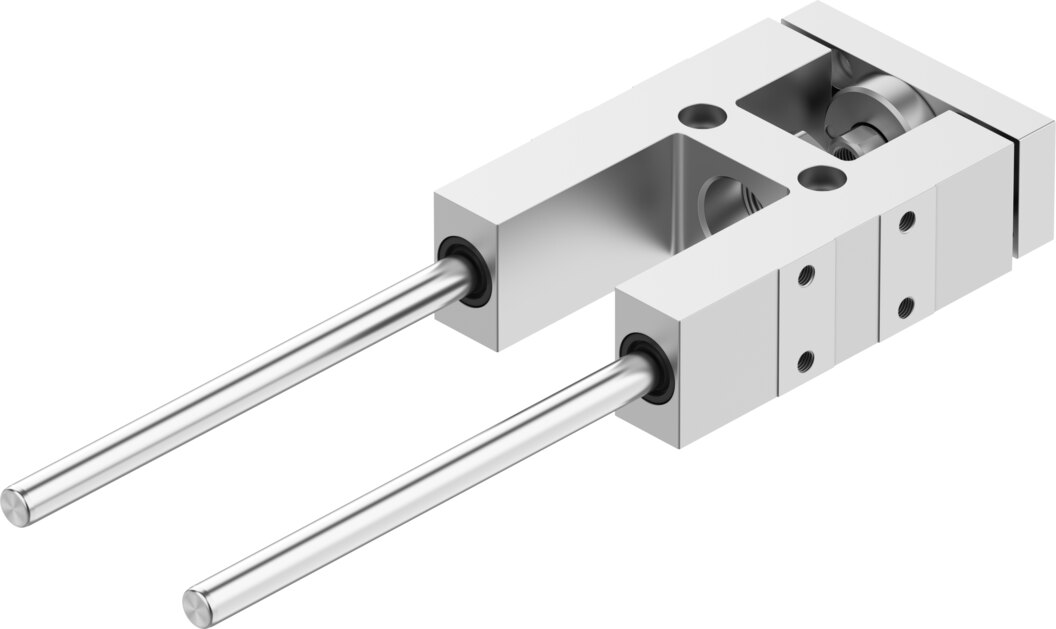

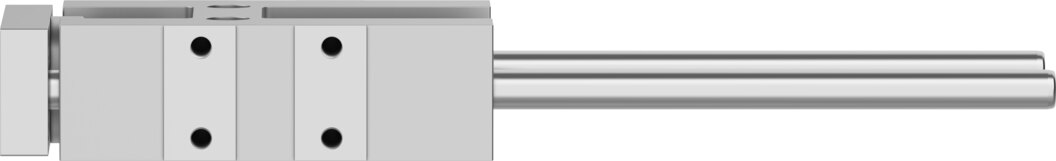

Guide unit with plain-bearing guide size 25 stroke 125 mm FEN-25-125-GF - Festo 8204055

Name: Guide unit with plain-bearing guide size 25 stroke 125 mm FEN-25-125-GF - Festo 8204055
Brand: Festo
SKU: FES-8204055
Price: 367.73 EUR
Availability: InStock

Festo ✓ Original product Brand new

With the guide unit FEN-25-125-GF, the load runs torsion-free on a plain-bearing guide, size 25 and stroke 125 mm. Displacement force 15 N. Housing made of wrought aluminium alloy, anodised. Ambient temperature -20 to 80 °C.

Net

€367.73

excl. VAT

Item FES-8204055

Manufacturer no. FEN-25-125-GF

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Festo guide unit FEN-25-125-GF in size 25 with plain-bearing guide keeps the piston rod torsion-free and relieves it of lateral forces, stroke 125 mm.

Why choose the FEN-25-125-GF

Plain-bearing guide, size 25, stroke 125 mm
Displacement force 15 N
Guide element made of high-alloy steel, housing made of wrought aluminium alloy, anodised
Ambient temperature -20 to 80 °C
Materials: RoHS compliant
PWIS conformity VDMA24364-B2-L

Typical applications

The FEN-25-125-GF is used where a cylinder is to lift, push or position loads without rotation, for example in lifting units, stoppers and ejectors.

Technical data

Order type	FEN-25-125-GF
Festo part number	8204055
Size	25
Stroke	125 mm
Mounting position	any
Guide	plain-bearing guide
Design	guide
Explosion protection	observe the information in the certificate
PWIS conformity (LABS)	VDMA24364-B2-L
Ambient temperature	-20 to 80 °C
Displacement force	15 N
Moving mass	419 g
Product weight	1016 g
Type of mounting	with female thread
Note on materials	RoHS compliant
Material guide element	high-alloy steel
Material housing	wrought aluminium alloy, anodised
Material yoke plate	wrought aluminium alloy, anodised
Customs tariff number	84833080
Weight	0.9 kg
Manufacturer	Festo
Hersteller-Nr	FEN-25-125-GF
EAN	4052568654146
Zolltarifnummer	84833080
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	Aluminium, anodised
Stroke [mm]	125
Temperaturbereich	-20-80 °C
Temperature (max.)	80
