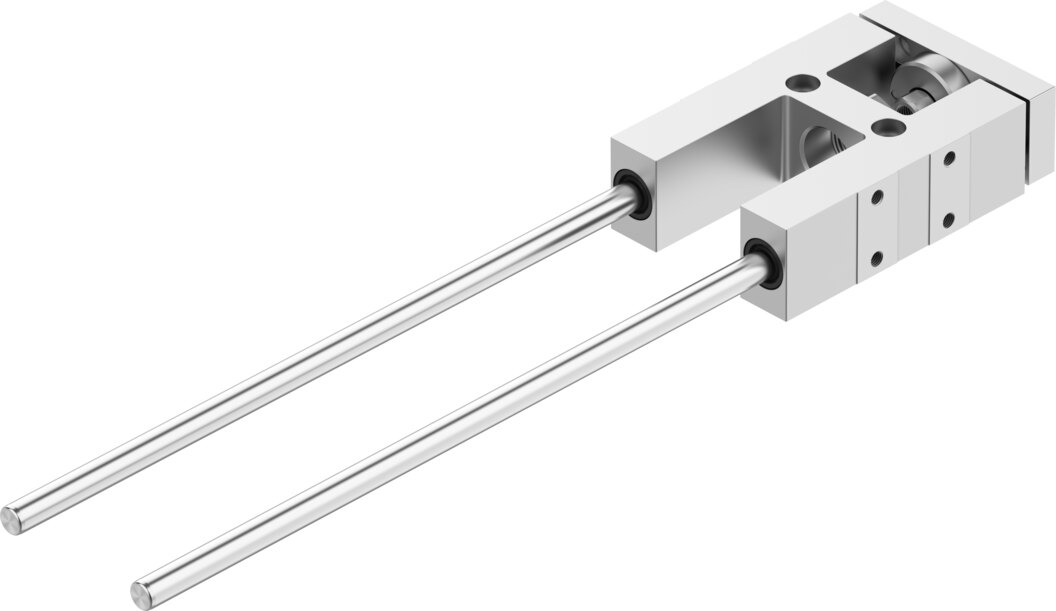

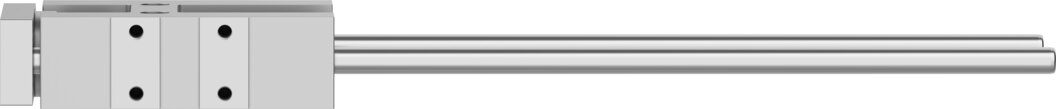

Guide unit with recirculating ball bearing guide size 25 stroke 250 mm FEN-25-250-KF - Festo 8204040

The Festo guide unit FEN-25-250-KF in size 25 turns a cylinder into a torsion-resistant linear axis with recirculating ball bearing guide, rated up to 520 N lateral force.

Why choose the FEN-25-250-KF

• Max. force Fy and Fz 520 N, static 830 N
• Max. torques Mx 15 Nm, My 20 Nm, Mz 20 Nm
• Recirculating ball bearing guide, size 25, stroke 250 mm
• Displacement force 15 N
• Guide element made of quenched and tempered steel, housing made of wrought aluminium alloy, anodised
• Ambient temperature -20 to 80 °C

Use

The FEN-25-250-KF is used where a cylinder is to lift, push or position loads without rotation, for example in lifting units, stoppers and ejectors.
