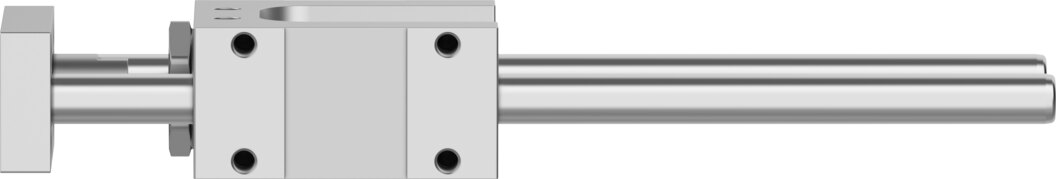

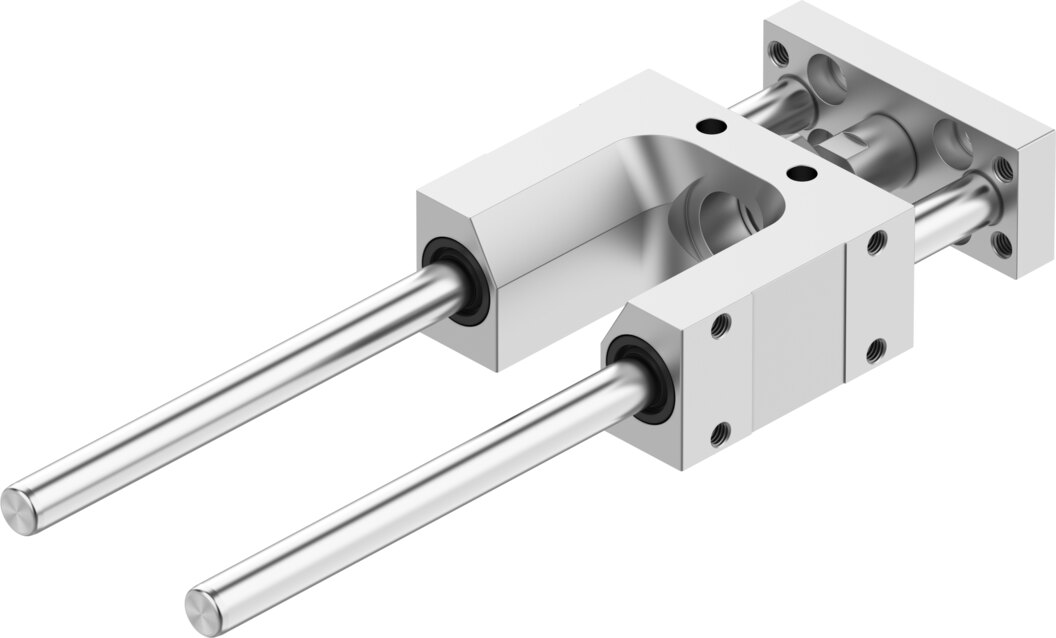

Guide unit with recirculating ball bearing guide size 12/16 stroke 100 mm FEN-12/16-100-KF - Festo 8204027

Lateral forces and torques do not belong on the piston rod. The guide unit FEN-12/16-100-KF diverts them via a recirculating ball bearing guide, up to 520 N in Fy and Fz.

Why choose the FEN-12/16-100-KF

• Max. force Fy and Fz 520 N, static 830 N
• Max. torques Mx 12 Nm, My 7 Nm, Mz 7 Nm
• Recirculating ball bearing guide, size 12/16, stroke 100 mm
• Displacement force 15 N
• Guide element made of quenched and tempered steel, housing made of wrought aluminium alloy, anodised
• Usable at ambient temperatures of -20 to 80 °C

Typical applications

Typical uses are lifting and pushing tasks in assembly and handling, where the FEN-12/16-100-KF guides tools or grippers without rotation.
