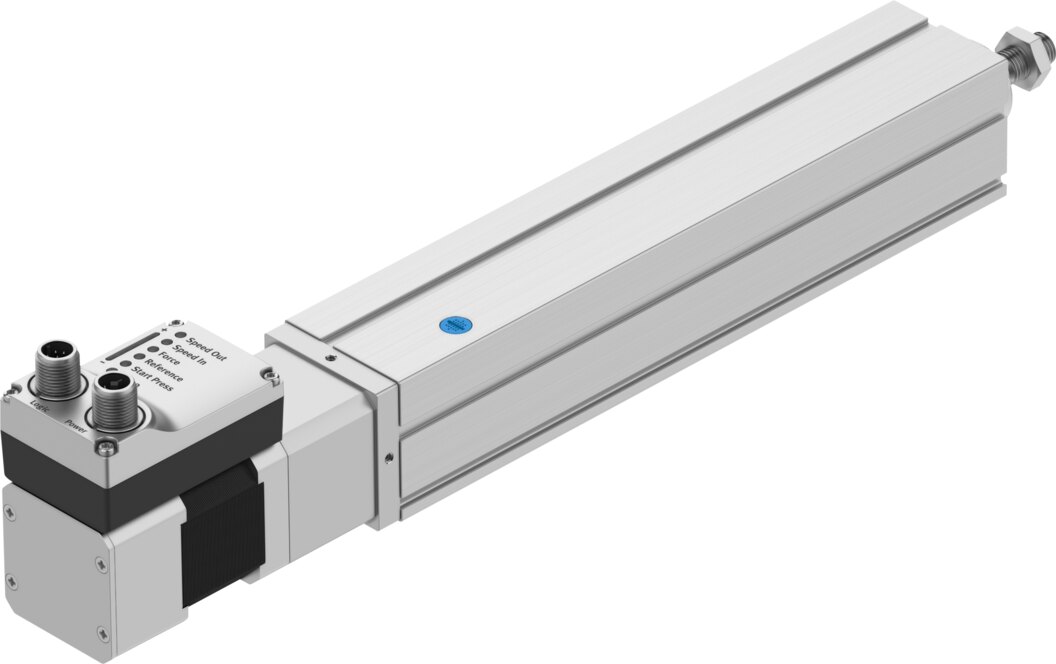

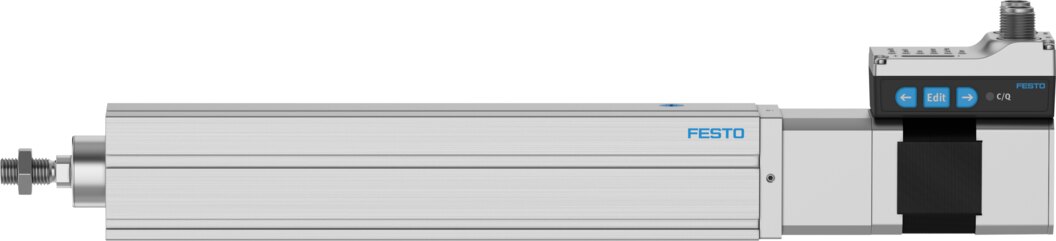

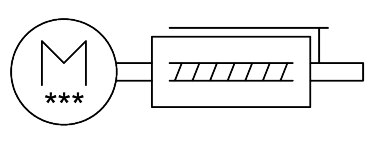

Electric cylinder unit with ball screw, size 45, stroke 150 mm, lead 10 mm/rev, IO-Link EPCS-BS-45-150-10P-A-ST-M-H1-PLK-AA - Festo 8118283
For pressing, joining and positioning with high force: the EPCS with ball screw comes with motor, absolute encoder and controller on board. 150 mm stroke, up to 0.23 m/s and a payload of up to 40 kg horizontal and 13 kg vertical, commissioning via IO-Link or directly on the unit.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The EPCS-BS-45-150-10P-A-ST-M-H1-PLK-AA is a ready-to-connect electric cylinder unit in size 45 with ball screw. Motor, encoder and controller sit inside the unit, so pressing, joining and positioning with high force need only two plug connections.
Benefits
- Integrated drive: the EPCS-45 contains stepper motor, encoder with 16 bit resolution and controller, supplied with 24 V DC at 3 A nominal current.
- Quick commissioning: set end positions and speed of the EPCS-45 on the user interface, then control via 2 digital inputs or IO-Link.
- Repeatable: ±0.02 mm at up to 0.23 m/s and 5 m/s² acceleration.
- Load capacity: feed force up to 250 N, reference payload 40 kg horizontal and 13 kg vertical, spindle pitch 10 mm/rev.
- Cleanroom-suitable: the EPCS-45 meets Class 9 according to ISO 14644-1, degree of protection IP40, lifetime lubrication.
Applications
Typical applications for the EPCS-45 with 150 mm stroke are assembly, testing and packaging systems. The piston rod with male thread M10x1,25 takes tools or grippers directly. The EPCS-45 is rated for 0 to 50 °C ambient temperature, above 30 °C power must be reduced by 2 % per K.
Technical data
| Size | 45 |
|---|---|
| Stroke | 150 mm |
| Stroke reserve | 0 mm |
| Piston rod thread | M10x1.25 |
| Reversing backlash theoretical | 100 µm |
| Spindle diameter | 10 mm |
| Spindle pitch | 10 mm/rev |
| Torsional backlash at piston rod +/- | 1° |
| Mounting position | Any |
| Piston-rod end | Male thread |
| Type of motor | Stepper motor |
| Design | With ball screw, With integrated drive |
| Spindle type | Ball screw |
| Protection against torque/guide | With plain-bearing guide |
| Referencing | Positive fixed stop block, Negative fixed stop block, Reference switch |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | magnetic |
| Temperature monitoring | Switch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output |
| Additional functions | Built-in end-position sensing |
| Display | LED |
| Ready status indication | LED |
| Maximum acceleration | 5 m/s² |
| Maximum speed | 0.23 m/s |
| Speed "Speed press" | 0.01 m/s |
| Repetition accuracy | ±0.02 mm |
| Features of digital logic outputs | Configurable, Not galvanically isolated |
| Duty cycle | 100% |
| Insulation protection class | B |
| Maximum current digital logic outputs | 100 mA |
| Maximum current consumption | 3000 mA |
| Maximum current consumption, logic | 0.3 A |
| Nominal voltage DC | 24 V |
| Nominal current | 3 A |
| Parameterisation interface | IO-Link, User interface |
| Rotor position transducer resolution | 16 bit |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, T-coded according to EN 61076-2-111 |
| Power supply, number of pins/wires | 4 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | Non-condensing |
| Degree of protection | IP40 |
| Protection class | III |
| Ambient temperature | 0 to 50 °C |
| Note on ambient temperature | Power must be reduced by 2% per K at ambient temperatures above 30°C |
| Maximum moment Mx | 0 Nm |
| Maximum moment My | 2.9 Nm |
| Maximum moment Mz | 2.9 Nm |
| Maximum radial force at drive shaft | 180 N |
| Maximum feed force Fx | 250 N |
| Reference value effective load, horizontal | 40 kg |
| Reference value effective load, vertical | 13 kg |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 179 g |
| Additional moving mass per 10 mm stroke | 4.9 g |
| Product weight | 1800 g |
| Basic weight for 0 mm stroke | 1185 g |
| Additional weight per 10 mm stroke | 41 g |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Specification logic input | Based on IEC 61131-2, type 1 |
| Working range of logic input | 24 V |
| Features of logic input | Configurable, Not galvanically isolated |
| IO-Link, SIO-Mode support | Yes |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM3 (230.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Number of ports | 1 |
| IO-Link, Process data length OUT | 2 bytes |
| IO-Link, Process data content OUT | Move intermediate 1 bit |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | State Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit |
| IO-Link, Service data IN | 32 bit Force, 32 bit position, 32 bit speed |
| IO-Link, Min, cycle time | 1 ms |
| IO-Link, Data storage required | 500 byte |
| Maximum cable length | 15 m outputs, 15 m inputs, 20 m with IO-Link operation |
| Switching logic for outputs | NPN (negative switching), PNP (positive switching) |
| Switching logic for inputs | NPN (negative switching), PNP (positive switching) |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded according to EN 61076-2-101 |
| Logic interface, number of pins/wires | 8 |
| Type of mounting | With female thread, With accessories |
| Note on materials | RoHS compliant |
| Material housing | Smooth-anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material ball screw nut | Steel |
| Material spindle | Bearing steel |
| Weight | 1.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EPCS-BS-45-150-10P-A-ST-M-H1-PLK-AA |
| EAN | 4052568466176 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 150 |
| Operating voltage | 24 V DC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
