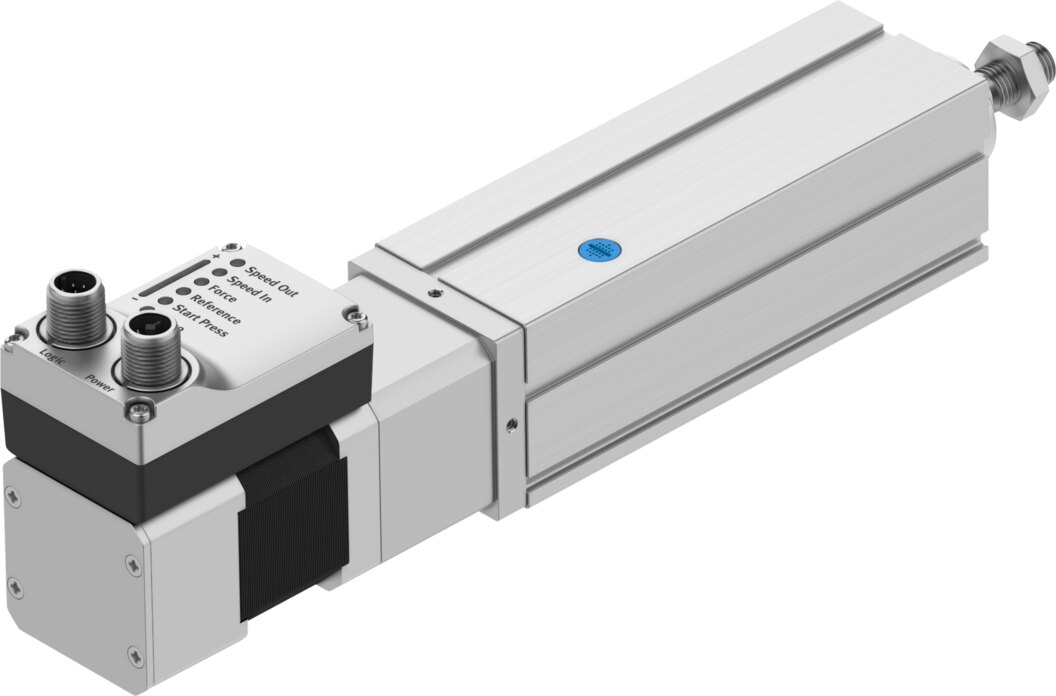

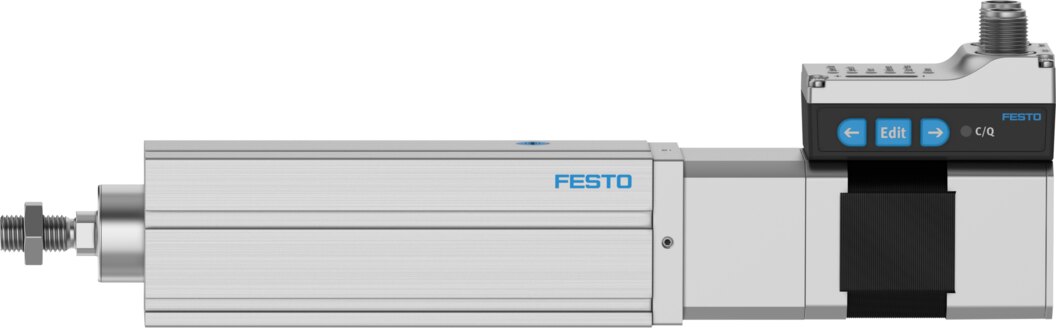

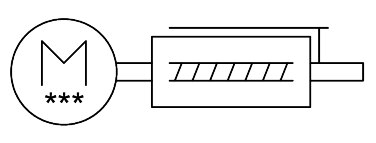

Electric cylinder unit with ball screw, size 45, stroke 50 mm, lead 10 mm/rev, IO-Link EPCS-BS-45-50-10P-A-ST-M-H1-PLK-AA - Festo 8118281

Festo ✓ Original product Brand new

The EPCS size 45 moves loads of up to 40 kg over a 50 mm stroke with ±0.02 mm repetition accuracy. Stepper motor, single-turn encoder and controller are built in and it connects via 2 digital inputs or IO-Link.

Net
€1,024.73
excl. VAT
Item FES-8118281
Manufacturer no. EPCS-BS-45-50-10P-A-ST-M-H1-PLK-AA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The EPCS-BS-45-50-10P-A-ST-M-H1-PLK-AA electric cylinder unit combines ball screw, stepper motor, absolute single-turn encoder and controller in one device. With a 50 mm stroke, up to 250 N feed force and up to 0.23 m/s, it is designed for precise infeed movements, including vertical installation.

Benefits

  • Everything on board: motor, absolute encoder (16 bit) and controller, the EPCS-45 needs only 24 V DC and 3 A nominal current.
  • Simple control: the EPCS-45 uses 2 digital inputs and 2 outputs (PNP or NPN) or IO-Link Device V 1.1, parameters can also be set on the unit itself.
  • Repeatable: ±0.02 mm at up to 0.23 m/s and 5 m/s² acceleration.
  • Load capacity: feed force up to 250 N, reference payload 40 kg horizontal and 13 kg vertical, spindle pitch 10 mm/rev.
  • Cleanroom-suitable: the EPCS-45 meets Class 9 according to ISO 14644-1, degree of protection IP40, lifetime lubrication.

Applications

The piston rod with male thread M10x1,25 takes tools or grippers directly. The EPCS-45 operates at 0 to 50 °C ambient temperature. Above 30 °C the permissible power drops by 2 % per kelvin, which matters when the unit is installed close to control cabinets.

Technical data

Size45
Stroke50 mm
Stroke reserve0 mm
Piston rod threadM10x1.25
Reversing backlash theoretical100 µm
Spindle diameter10 mm
Spindle pitch10 mm/rev
Torsional backlash at piston rod +/-1°
Mounting positionAny
Piston-rod endMale thread
Type of motorStepper motor
DesignWith ball screw, With integrated drive
Spindle typeBall screw
Protection against torque/guideWith plain-bearing guide
ReferencingPositive fixed stop block, Negative fixed stop block, Reference switch
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, encoder measuring principlemagnetic
Temperature monitoringSwitch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output
Additional functionsBuilt-in end-position sensing
DisplayLED
Ready status indicationLED
Maximum acceleration5 m/s²
Maximum speed0.23 m/s
Speed "Speed press"0.01 m/s
Repetition accuracy±0.02 mm
Features of digital logic outputsConfigurable, Not galvanically isolated
Duty cycle100%
Insulation protection classB
Maximum current digital logic outputs100 mA
Maximum current consumption3000 mA
Maximum current consumption, logic0.3 A
Nominal voltage DC24 V
Nominal current3 A
Parameterisation interfaceIO-Link, User interface
Rotor position transducer resolution16 bit
Permissible voltage fluctuations+/- 15 %
Power supply, connection typePlug
power supply, connection systemM12x1, T-coded according to EN 61076-2-111
Power supply, number of pins/wires4
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1
Storage temperature-20 to 60 °C
Relative air humidityNon-condensing
Degree of protectionIP40
Protection classIII
Ambient temperature0 to 50 °C
Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C
Maximum moment Mx0 Nm
Maximum moment My2.9 Nm
Maximum moment Mz2.9 Nm
Maximum radial force at drive shaft180 N
Maximum feed force Fx250 N
Reference value effective load, horizontal40 kg
Reference value effective load, vertical13 kg
Maintenance intervalLifetime lubrication
Moving mass for 0 mm stroke179 g
Additional moving mass per 10 mm stroke4.9 g
Product weight1390 g
Basic weight for 0 mm stroke1185 g
Additional weight per 10 mm stroke41 g
Number of digital logic outputs 24 V DC2
Number of digital logic inputs2
Specification logic inputBased on IEC 61131-2, type 1
Working range of logic input24 V
Features of logic inputConfigurable, Not galvanically isolated
IO-Link, SIO-Mode supportYes
IO-Link, Protocol versionDevice V 1.1
IO-Link, communication modeCOM3 (230.4 kBaud)
IO-Link, Port classA
IO-Link, Number of ports1
IO-Link, Process data length OUT2 bytes
IO-Link, Process data content OUTMove intermediate 1 bit
IO-Link, Process data length IN2 bytes
IO-Link, Process data content INState Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit
IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed
IO-Link, Min, cycle time1 ms
IO-Link, Data storage required500 byte
Maximum cable length15 m outputs, 15 m inputs, 20 m with IO-Link operation
Switching logic for outputsNPN (negative switching), PNP (positive switching)
Switching logic for inputsNPN (negative switching), PNP (positive switching)
Logic interface, connection typePlug
Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101
Logic interface, number of pins/wires8
Type of mountingWith female thread, With accessories
Note on materialsRoHS compliant
Material housingSmooth-anodised wrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material ball screw nutSteel
Material spindleBearing steel
Weight1.5 kg
ManufacturerFesto
Hersteller-NrEPCS-BS-45-50-10P-A-ST-M-H1-PLK-AA
EAN4052568466152
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]50
Operating voltage24 V DC
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
