Electric cylinder unit with toothed belt, size 45, stroke 20 mm, IO-Link EPCE-TB-45-20-FL-ST-M-H1-PLK-AA - Festo 8101540
For fast stroke movements over short distances: the EPCE with toothed belt comes with motor, absolute encoder and controller on board. 20 mm stroke, up to 0.44 m/s and a payload of up to 5 kg horizontal and 2.5 kg vertical, commissioning via IO-Link or directly on the unit.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

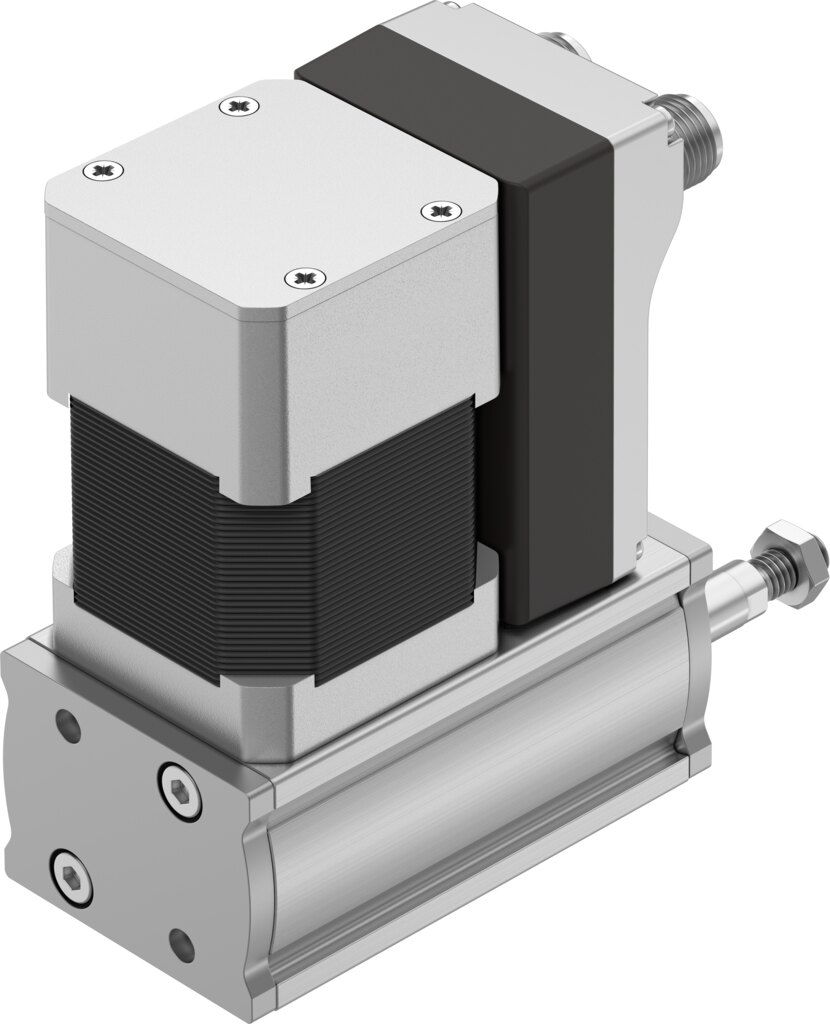

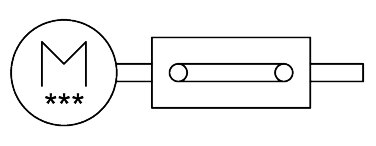

The EPCE-TB-45-20-FL-ST-M-H1-PLK-AA is a ready-to-connect electric cylinder unit in size 45 with toothed belt. Motor, encoder and controller sit inside the unit, so fast stroke movements over short distances need only two plug connections.
Benefits
- Integrated drive: the EPCE-45 contains stepper motor, encoder with 16 bit resolution and controller, supplied with 24 V DC at 3 A nominal current.

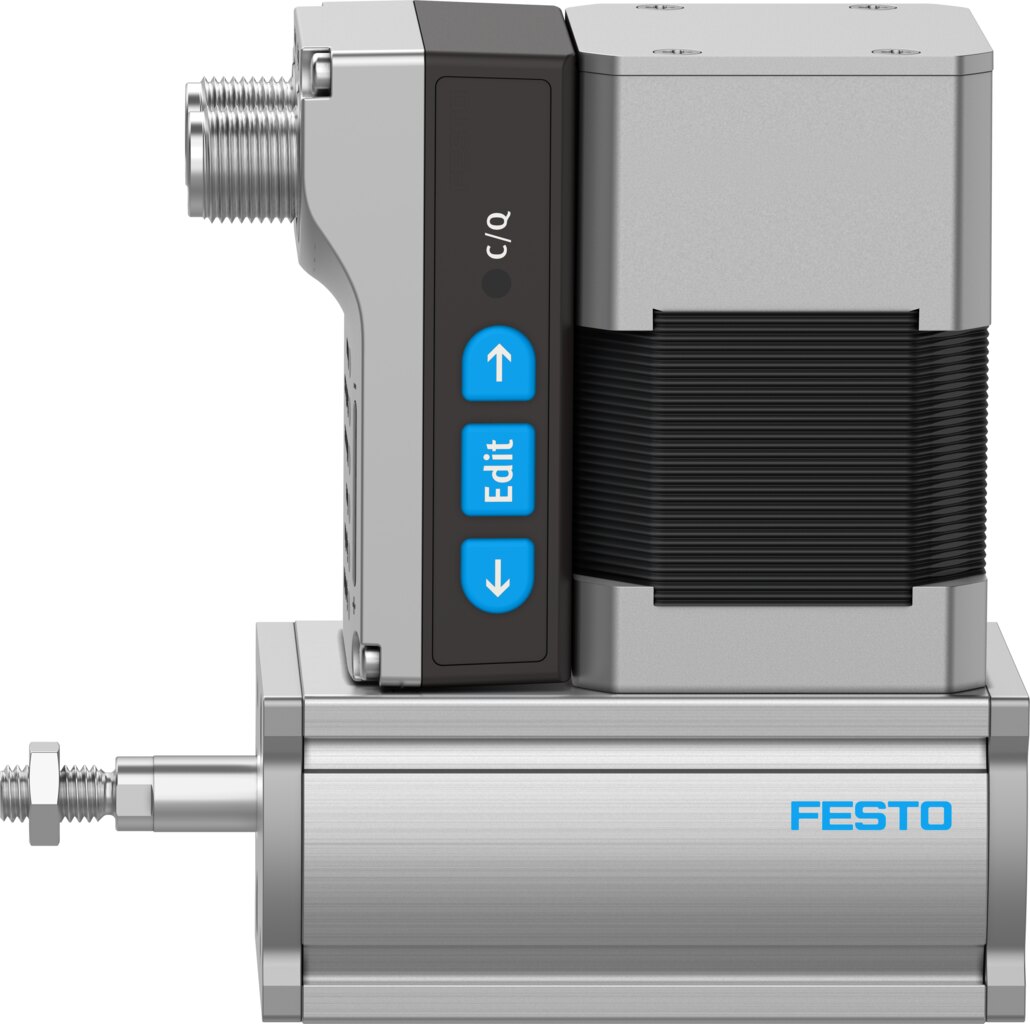

- Quick commissioning: set end positions and speed of the EPCE-45 on the user interface, then control via 2 digital inputs or IO-Link.
- Repeatable: ±0.05 mm at up to 0.44 m/s and 9 m/s² acceleration.
- Load capacity: feed force up to 85 N, reference payload 5 kg horizontal and 2.5 kg vertical.
- Low maintenance: lifetime lubrication and 200 km reference service life, degree of protection IP40.
Applications
Typical applications for the EPCE-45 with 20 mm stroke are assembly, testing and packaging systems. The piston rod with male thread M6 takes tools or grippers directly. The EPCE-45 is rated for 0 to 50 °C ambient temperature, above 30 °C power must be reduced by 2 % per K.
Technical data
| Effective diameter of drive pinion | 10.18 mm |
|---|---|
| Size | 45 |
| Stroke | 20 mm |
| Stroke reserve | 0 mm |
| Piston rod thread | M6 |
| Toothed-belt stretch | 0.31 % |
| Toothed-belt pitch | 2 mm |
| Mounting position | Any |
| Piston-rod end | Male thread |
| Type of motor | Stepper motor |
| Position detection | Motor encoder |
| Design | With toothed belt, With integrated drive |
| Protection against torque/guide | With plain-bearing guide |
| Referencing | Positive fixed stop block, Negative fixed stop block |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | magnetic |
| Temperature monitoring | Switch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output |
| Additional functions | Built-in end-position sensing |
| Display | LED |
| Ready status indication | LED |
| Maximum acceleration | 9 m/s² |
| Maximum speed | 0.44 m/s |
| Speed "Speed press" | 0.02 m/s |
| Repetition accuracy | ±0.05 mm |
| Features of digital logic outputs | Configurable, Not galvanically isolated |
| Duty cycle | 100% |
| Insulation protection class | B |
| Maximum current digital logic outputs | 100 mA |
| Maximum current consumption | 3000 mA |
| Maximum current consumption, logic | 0.3 A |
| Nominal voltage DC | 24 V |
| Nominal current | 3 A |
| Parameterisation interface | IO-Link, User interface |
| Rotor position transducer resolution | 16 bit |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, T-coded according to EN 61076-2-111 |
| Power supply, number of pins/wires | 4 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 - 90% |
| Degree of protection | IP40 |
| Protection class | III |
| Ambient temperature | 0 to 50 °C |
| Note on ambient temperature | Power must be reduced by 2% per K at ambient temperatures above 30°C |
| Impact energy in end positions | 0.003 J |
| Maximum moment Mx | 0 Nm |
| Maximum moment My | 0.4 Nm |
| Maximum moment Mz | 0.4 Nm |
| Maximum feed force Fx | 85 N |
| Reference value effective load, horizontal | 5 kg |
| Reference value effective load, vertical | 2.5 kg |
| Feed constant | 32 mm/rev |
| Reference service life | 200 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 92 g |
| Moving mass for 0 mm stroke | 83 g |
| Additional moving mass per 10 mm stroke | 4.55 g |
| Product weight | 834 g |
| Basic weight for 0 mm stroke | 775 g |
| Additional weight per 10 mm stroke | 29 g |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Specification logic input | Based on IEC 61131-2, type 1 |
| Working range of logic input | 24 V |
| Features of logic input | Configurable, Not galvanically isolated |
| IO-Link, SIO-Mode support | Yes |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM3 (230.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Number of ports | 1 |
| IO-Link, Process data length OUT | 2 bytes |
| IO-Link, Process data content OUT | Move intermediate 1 bit |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | State Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit |
| IO-Link, Service data IN | Speed 32 bit, Position 32 bit, Force 32 bit |
| IO-Link, Min, cycle time | 1 ms |
| IO-Link, Data storage required | 500 byte |
| Maximum cable length | 15 m outputs, 15 m inputs, 20 m with IO-Link operation |
| Switching logic for outputs | PNP (positive switching) |
| Switching logic for inputs | PNP (positive switching) |
| IO-Link, connection technology | Plug |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded according to EN 61076-2-101 |
| Logic interface, number of pins/wires | 8 |
| Type of mounting | With female thread, With accessories |
| Note on materials | RoHS compliant |
| Material cover | Anodised wrought aluminium alloy |
| Material housing | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material toothed belt | Polychloroprene with glass fibre |
| Weight | 1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EPCE-TB-45-20-FL-ST-M-H1-PLK-AA |
| EAN | 4052568550776 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 20 |
| Housing material | Aluminium, anodised |
| Operating voltage | 24 V DC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
