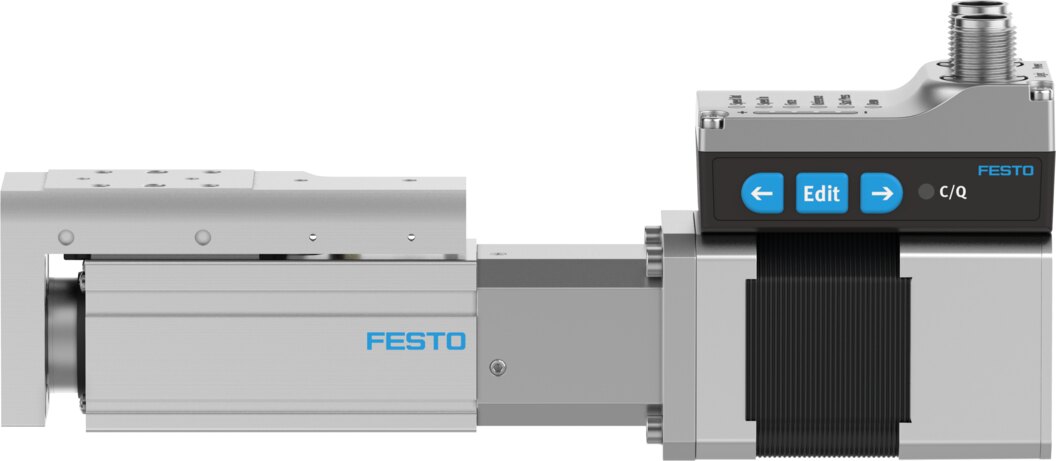

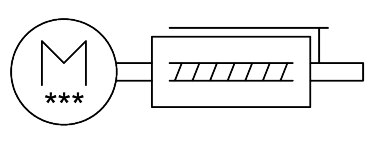

Mini slide unit with ball screw, size 32, stroke 25 mm, IO-Link EGSS-BS-KF-32-25-8P-ST-M-H1-PLK-AA - Festo 8083801
For stroke and infeed movements with the load mounted directly: the EGSS with ball screw comes with motor, absolute encoder and controller on board. 25 mm stroke, up to 0.19 m/s and a payload of up to 2 kg horizontal and 2 kg vertical, commissioning via IO-Link or directly on the unit.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The EGSS-BS-KF-32-25-8P-ST-M-H1-PLK-AA is a ready-to-connect mini slide unit in size 32 with ball screw. Motor, encoder and controller sit inside the unit, so stroke and infeed movements with the load mounted directly need only two plug connections.
Benefits
- Integrated drive: the EGSS-32 contains stepper motor, encoder with 16 bit resolution and controller, supplied with 24 V DC at 3 A nominal current.
- Quick commissioning: set end positions and speed of the EGSS-32 on the user interface, then control via 2 digital inputs or IO-Link.
- Repeatable: ±0.015 mm at up to 0.19 m/s and 5 m/s² acceleration.
- Guided load capacity: recirculating ball bearing guide for transverse forces Fy up to 991 N and torques My up to 3.17 Nm, payload up to 2 kg horizontal and 2 kg vertical.
- Cleanroom-suitable: the EGSS-32 meets Class 9 according to ISO 14644-1, degree of protection IP40, lifetime lubrication with 5000 km reference service life.
Applications
Typical applications for the EGSS-32 with 25 mm stroke are assembly, testing and packaging systems. Loads are mounted directly on the slide, the feed constant is 8 mm/rev. The EGSS-32 is rated for 0 to 50 °C ambient temperature, above 30 °C power must be reduced by 2 % per K.
Technical data
| Working stroke | 25 mm |
|---|---|
| Size | 32 |
| Stroke reserve | 0 mm |
| Reversing backlash theoretical | 150 µm |
| Spindle diameter | 8 mm |
| Spindle pitch | 8 mm/rev |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw, With integrated drive |
| Type of motor | Stepper motor |
| Referencing | Positive fixed stop block, Negative fixed stop block |
| Spindle type | Ball screw |
| Position detection | Motor encoder, Via proximity switch |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | magnetic |
| Protective function | Temperature monitoring |
| Additional functions | Built-in end-position sensing |
| Display | LED |
| Ready status indication | LED |
| Maximum acceleration | 5 m/s² |
| Maximum speed | 0.19 m/s |
| Speed "Speed press" | 0.01 m/s |
| Repetition accuracy | ±0.015 mm |
| Features of digital logic outputs | Configurable, Not galvanically isolated |
| Duty cycle | 100% |
| Insulation protection class | B |
| Maximum current digital logic outputs | 100 mA |
| Maximum current consumption | 3000 mA |
| Maximum current consumption, logic | 0.3 A |
| Nominal voltage DC | 24 V |
| Nominal current | 3 A |
| Parameterisation interface | IO-Link, User interface |
| Rotor position transducer resolution | 16 bit |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, T-coded according to EN 61076-2-111 |
| Power supply, number of pins/wires | 4 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 - 90% |
| Degree of protection | IP40 |
| Protection class | III |
| Ambient temperature | 0 to 50 °C |
| Note on ambient temperature | Power must be reduced by 2% per K at ambient temperatures above 30°C |
| Dynamic basic load rating fixed bearing | 3795 N |
| Dynamic basic load rating linear guide | 2135 N |
| Dynamic basic load rating ball screw | 2000 N |
| Maximum force Fy | 991 N |
| Maximum force Fz | 991 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 2135 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 2135 N |
| Maximum moment Mx | 3.4 Nm |
| Maximum moment My | 3.17 Nm |
| Maximum moment Mz | 3.17 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 10 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 7 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 7 Nm |
| Maximum radial force at drive shaft | 140 N |
| Maximum feed force Fx | 60 N |
| Reference value effective load, horizontal | 2 kg |
| Reference value effective load, vertical | 2 kg |
| Static basic load rating ball screw | 3700 N |
| Static basic load rating linear guide | 3880 N |
| Feed constant | 8 mm/rev |
| Static basic load rating fixed bearing | 1792 N |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 149 g |
| Additional moving mass per 10 mm stroke | 12 g |
| Product weight | 999 g |
| Basic weight for 0 mm stroke | 924 g |
| Additional weight per 10 mm stroke | 30 g |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Specification logic input | Based on IEC 61131-2, type 1 |
| Working range of logic input | 24 V |
| IO-Link, SIO-Mode support | Yes |
| Features of logic input | Configurable, Not galvanically isolated |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM3 (230.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Number of ports | 1 |
| IO-Link, Process data length OUT | 2 bytes |
| IO-Link, Process data content OUT | 1 bit (move in), 1 bit (Move out), 1 bit (Quit Error), 1 bit (move intermediate) |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | 1 bit (state device), 1 bit (State Intermediate), 1 bit (State Move), 1 bit (State in), 1 bit (state out) |
| IO-Link, Service data IN | 32 bit Force, 32 bit position, 32 bit speed |
| IO-Link, Min, cycle time | 1 ms |
| IO-Link, Data storage required | 500 byte |
| Maximum cable length | 15 m outputs, 15 m inputs, 20 m with IO-Link operation |
| Switching logic for outputs | PNP (positive switching) |
| Switching logic for inputs | PNP (positive switching) |
| IO-Link, connection technology | Plug |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded according to EN 61076-2-101 |
| Logic interface, number of pins/wires | 8 |
| Type of mounting | With female thread, With centring sleeve, With accessories, Via cylindrical dowel pin |
| Note on materials | RoHS compliant |
| Material guide slide | Bearing steel |
| Material guide rail | Bearing steel |
| Material housing | Anodised wrought aluminium alloy |
| Material yoke plate | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material slide | Anodised wrought aluminium alloy |
| Material ball screw nut | Bearing steel |
| Material spindle | Bearing steel |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EGSS-BS-KF-32-25-8P-ST-M-H1-PLK-AA |
| EAN | 4052568457648 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 25 |
| Housing material | Aluminium, anodised |
| Operating voltage | 24 V DC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
