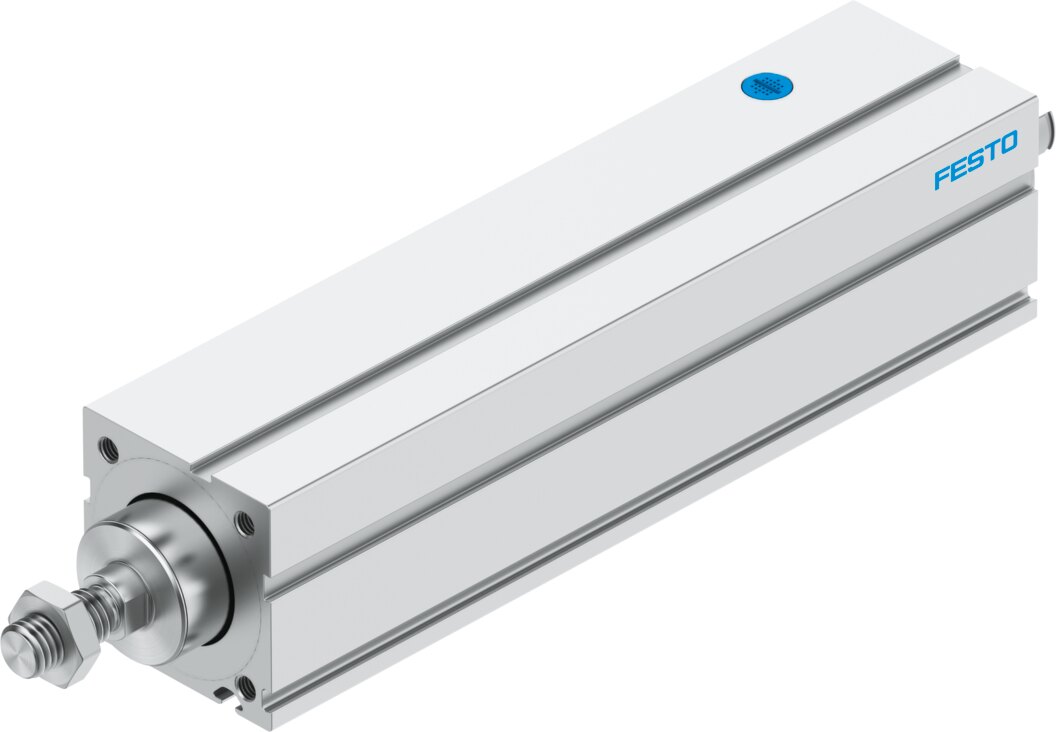

Electric cylinder EPCC-BS-60-50-5P-A - Festo 5428889
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 60 |
|---|---|
| Stroke | 50 mm |
| Stroke reserve | 0 mm |
| Piston rod thread | M12x1.25 |
| Reversing backlash theoretical | 100 µm |
| Spindle diameter | 12 mm |
| Spindle pitch | 5 mm/U |
| Torsional backlash at piston rod +/- | 1 deg |
| Mounting position | Any |
| Piston-rod end | Male thread |
| Type of motor | Stepper motor, Servo motor |
| Position detection | Via proximity switch |
| Design | With ball screw |
| Spindle type | Ball screw |
| Protection against torque/guide | With plain-bearing guide |
| Max. acceleration | 5 m/s² |
| Max. rotational speed | 3000 1/min |
| Max. speed | 0.25 m/s |
| Max. homing speed | 0.01 m/s |
| Repetition accuracy | ±0.02 mm |
| Duty cycle | 100% |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 ... 60 °C |
| Relative air humidity | Non-condensing |
| Degree of protection | IP40 |
| Ambient temperature | 0 ... 60 °C |
| Impact energy in end positions | 0.024 J |
| Max. drive torque | 1.2 Nm |
| Max. moment Mx | 0 Nm |
| Max. moment My | 6.4 Nm |
| Max. moment Mz | 6.4 Nm |
| Max. radial force at drive shaft | 230 N |
| Max. feed force Fx | 1000 N |
| Frictional torque independent of load | 0.235 Nm |
| Reference value effective load, horizontal | 120 kg |
| Reference value effective load, vertical | 60 kg |
| Mass moment of inertia JH per metre of stroke | 0.1195 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.0063 kgcm² |
| Mass moment of inertia JO | 0.0682 kgcm² |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 305 g |
| Additional moving mass per 10 mm stroke | 6.5 g |
| Basic weight for 0 mm stroke | 1114 g |
| Additional weight per 10 mm stroke | 69 g |
| Type of mounting | With female thread, With accessories |
| Note on materials | RoHS compliant |
| Material housing | Smooth-anodised |
| Material piston rod | High-alloy stainless steel |
| Material ball screw nut | Steel |
| Material spindle | Bearing steel |
| Weight | 1.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EPCC-BS-60-50-5P-A |
| EAN | 4052568452742 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
