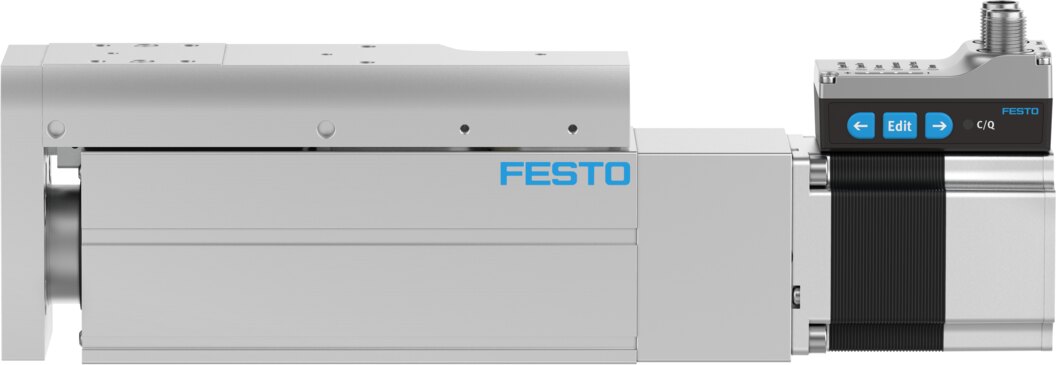

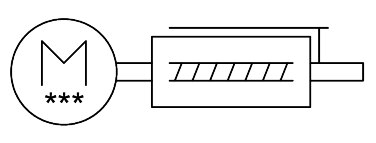

Mini slide unit with integrated drive stroke 75 mm EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA - Festo 8083717
The mini slide unit EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA moves loads over a 75 mm stroke and returns to position within ±0.015 mm. Ball screw with 12 mm pitch, feed force up to 250 N and travel speed up to 0.24 m/s. Drive and motor encoder are integrated, supply 24 V DC, parameterisation via IO-Link.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA is a Festo mini slide unit with integrated drive with 75 mm stroke, size 60, up to 0.24 m/s. The ball screw with 12 mm/rev pitch supplies up to 250 N feed force, and the slide runs on a recirculating ball bearing guide.
Advantages
- Repeatability of ±0.015 mm over the full 75 mm stroke.
- Short cycles with up to 0.24 m/s and 5 m/s².
- Integrated drive, motor encoder, end-position detection.
- Feed force up to 250 N in the direction of motion.
- Parameterisation via IO-Link, supply 24 V DC.
- Transverse forces up to 4937 N and moments up to 20 Nm via the recirculating ball bearing guide.
Application
The mini slide unit EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA combines slide and drive, so positioning over a 75 mm stroke works without an external servo drive. Mounting position any, ambient temperature 0 to 50 °C. Price-list weight 3.5 kg.
Technical data
| Type | EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA |
|---|---|
| Working stroke | 75 mm |
| Size | 60 |
| Stroke reserve | 0 mm |
| Reversing backlash theoretical | 150 µm |
| Spindle diameter | 12 mm |
| Spindle pitch | 12 mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw, with integrated drive |
| Type of motor | Stepper motor |
| Referencing | Positive fixed stop block, negative fixed stop block |
| Spindle type | Ball screw |
| Position detection | Motor encoder, via proximity switch |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | magnetic |
| Protective function | Temperature monitoring |
| Additional functions | Built-in end-position sensing |
| Display | LED |
| Ready status indication | LED |
| Maximum acceleration | 5 m/s² |
| Maximum speed | 0.24 m/s |
| Speed "Speed press" | 0.01 m/s |
| Repetition accuracy | ±0.015 mm |
| Features of digital logic outputs | Configurable, not galvanically isolated |
| Duty cycle | 100% |
| Insulation protection class | B |
| Maximum current digital logic outputs | 100 mA |
| Maximum current consumption | 5300 mA |
| Maximum current consumption, logic | 0.3 A |
| Nominal voltage DC | 24 V |
| Nominal current | 5.3 A |
| Parameterisation interface | IO-Link®, user interface |
| Rotor position transducer resolution | 16 bit |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, T-coded according to EN 61076-2-111 |
| Power supply, number of pins/wires | 4 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 - 90% |
| Degree of protection | IP40 |
| Protection class | III |
| Ambient temperature | 0 to 50 °C |
| Note on ambient temperature | Power must be reduced by 2% per K at ambient temperatures above 30°C. |
| Dynamic basic load rating fixed bearing | 13321 N |
| Dynamic basic load rating linear guide | 13400 N |
| Dynamic basic load rating ball screw | 4600 N |
| Maximum force Fy | 4937 N |
| Maximum force Fz | 4937 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 13400 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 13400 N |
| Maximum moment Mx | 20 Nm |
| Maximum moment My | 30 Nm |
| Maximum moment Mz | 30 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 107 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 117 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 117 Nm |
| Maximum radial force at drive shaft | 420 N |
| Maximum feed force Fx | 250 N |
| Reference value effective load, horizontal | 10 kg |
| Reference value effective load, vertical | 10 kg |
| Static basic load rating ball screw | 8500 N |
| Static basic load rating linear guide | 26900 N |
| Feed constant | 12 mm/U |
| Static basic load rating fixed bearing | 7000 N |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 675 g |
| Additional moving mass per 10 mm stroke | 40 g |
| Product weight | 3447 g |
| Basic weight for 0 mm stroke | 2735 g |
| Additional weight per 10 mm stroke | 95 g |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Specification logic input | Based on IEC 61131-2, type 1 |
| Working range of logic input | 24 V |
| IO-Link, SIO-Mode support | Yes |
| Features of logic input | Configurable, not galvanically isolated |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM3 (230.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Number of ports | 1 |
| IO-Link, Process data length OUT | 2 bytes |
| IO-Link, Process data content OUT | 1 bit (move in), 1 bit (Move out), 1 bit (Quit Error), 1 bit (move intermediate) |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | 1 bit (state device), 1 bit (State Intermediate), 1 bit (State Move), 1 bit (State in), 1 bit (state out) |
| IO-Link, Service data IN | 32 bit Force, 32 bit position, 32 bit speed |
| IO-Link, Min. cycle time | 1 ms |
| IO-Link, Data storage required | 500 byte |
| Maximum cable length | 15 m outputs, 15 m inputs, 20 m with IO-Link® operation |
| Switching logic for outputs | PNP (positive switching) |
| Switching logic for inputs | PNP (positive switching) |
| IO-Link, connection technology | Plug |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded according to EN 61076-2-101 |
| Logic interface, number of pins/wires | 8 |
| Type of mounting | With female thread, with centring sleeve, with accessories, via cylindrical dowel pin |
| Note on materials | RoHS compliant |
| Material guide slide | Bearing steel |
| Material guide rail | Bearing steel |
| Material housing | Anodised wrought aluminium alloy |
| Material yoke plate | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material slide | Anodised wrought aluminium alloy |
| Material ball screw nut | Bearing steel |
| Material spindle | Bearing steel |
| Weight (price list) | 3.5 kg |
| Weight | 3.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA |
| EAN | 4052568457594 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 75 |
| Housing material | Aluminium, anodised |
| Operating voltage | 24 V DC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
