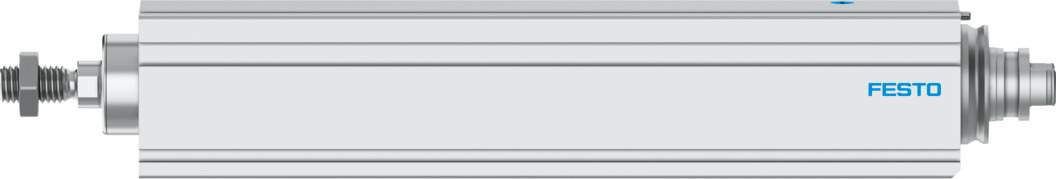

Electric cylinder ball screw size 32 stroke 175 mm EPCC-BS-32-175-3P-A - Festo 5428839
The electric cylinder EPCC-BS-32-175-3P-A positions over a 175 mm stroke with a repeatability of ±0.02 mm. Ball screw with 3 mm pitch, feed force up to 150 N and travel speed up to 0.188 m/s. Suitable for stepper and servo motors, degree of protection IP40.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo electric cylinder EPCC-BS-32-175-3P-A at a glance: 175 mm stroke, size 32, up to 0.188 m/s. The ball screw with 3 mm/rev pitch generates up to 150 N feed force at the piston rod (M8).
Advantages
- Reproducible end positions with ±0.02 mm repeatability.
- Feed force up to 150 N in the direction of motion.
- Up to 0.188 m/s and 5 m/s² acceleration for short cycle times.
- Reference payload 24 kg horizontal and 12 kg vertical.
- Piston rod thread M8.
- Lifetime lubrication, no relubrication in operation.
Application
The electric cylinder EPCC-BS-32-175-3P-A replaces pneumatic cylinders where freely programmable positions and defined forces are needed over a 175 mm stroke. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 0.95 kg.
Technical data
| Type | EPCC-BS-32-175-3P-A |
|---|---|
| Size | 32 |
| Stroke | 175 mm |
| Stroke reserve | 0 mm |
| Piston rod thread | M8 |
| Reversing backlash theoretical | 100 µm |
| Spindle diameter | 8 mm |
| Spindle pitch | 3 mm/U |
| Torsional backlash at piston rod +/- | 1 deg |
| Mounting position | Any |
| Piston-rod end | Male thread |
| Type of motor | Stepper motor, servo motor |
| Position detection | Via proximity switch |
| Design | With ball screw |
| Spindle type | Ball screw |
| Protection against torque/guide | With plain-bearing guide |
| Maximum acceleration | 5 m/s² |
| Maximum rotational speed | 3750 1/min |
| Maximum speed | 0.188 m/s |
| Maximum homing speed | 0.01 m/s |
| Repetition accuracy | ±0.02 mm |
| Duty cycle | 100% |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | Non-condensing |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.0036 J |
| Maximum drive torque | 0.15 Nm |
| Maximum moment Mx | 0 Nm |
| Maximum moment My | 1.5 Nm |
| Maximum moment Mz | 1.5 Nm |
| Maximum radial force at drive shaft | 75 N |
| Maximum feed force Fx | 150 N |
| Frictional torque independent of load | 0.065 Nm |
| Reference value effective load, horizontal | 24 kg |
| Reference value effective load, vertical | 12 kg |
| Mass moment of inertia JH per metre of stroke | 0.0256 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.0023 kgcm² |
| Mass moment of inertia JO | 0.0042 kgcm² |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 98 g |
| Additional moving mass per 10 mm stroke | 3.3 g |
| Basic weight for 0 mm stroke | 225 g |
| Additional weight per 10 mm stroke | 24 g |
| Type of mounting | With female thread, with accessories |
| Note on materials | RoHS compliant |
| Material housing | Smooth-anodised |
| Material piston rod | High-alloy stainless steel |
| Material ball screw nut | Steel |
| Material spindle | Bearing steel |
| Weight (price list) | 0.95 kg |
| Weight | 0.95 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EPCC-BS-32-175-3P-A |
| EAN | 4052568452537 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 175 |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
