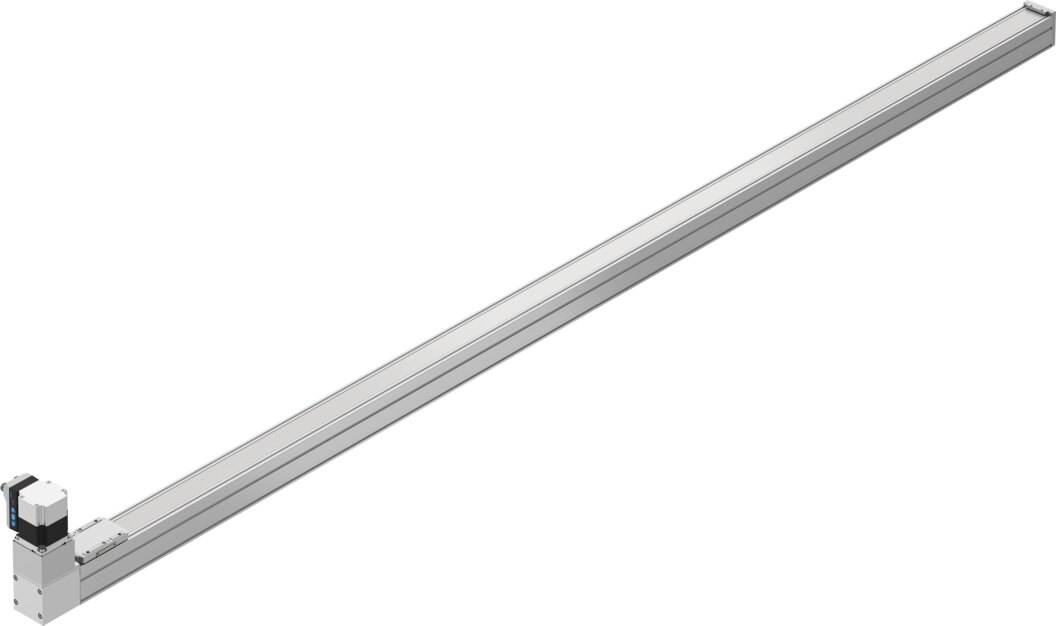

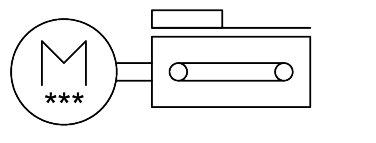

Toothed belt axis unit ELGS-TB-KF-60-2000-ST-M-H1-PLK-AA - Festo 8083579
Net
excl. VAT
€1,598.81
Item
FES-8083579
Manufacturer no.
ELGS-TB-KF-60-2000-ST-M-H1-PLK-AA
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Effective diameter of drive pinion | 24.83 mm |
|---|---|
| Working stroke | 2000 mm |
| Size | 60 |
| Stroke reserve | 0 mm |
| Toothed-belt stretch | 0.124 % |
| Toothed-belt pitch | 3 mm |
| Mounting position | Horizontal |
| Guide | Recirculating ball bearing guide |
| Design | With toothed belt, With integrated drive |
| Type of motor | Stepper motor |
| Position detection | Motor encoder, Via proximity switch |
| Referencing | Positive fixed stop block, Negative fixed stop block |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | magnetic |
| Temperature monitoring | Switch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output |
| Additional functions | User interface, Built-in end-position sensing |
| Display | LED |
| Ready status indication | LED |
| Max. acceleration | 6 m/s² |
| Max. speed | 1.3 m/s |
| Speed "Speed press" | 0.026 m/s |
| Repetition accuracy | ±0.1 mm |
| Features of digital logic outputs | Configurable, Not galvanically isolated |
| Duty cycle | 100% |
| Insulation protection class | B |
| Max. current digital logic outputs | 100 mA |
| Max. current consumption | 5300 mA |
| Max. current consumption, logic | 0.3 A |
| Nominal voltage DC | 24 V |
| Nominal current | 5.3 A |
| Parameterisation interface | IO-Link®, User interface |
| Rotor position transducer resolution | 16 bit |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, T-coded according to EN 61076-2-111 |
| Power supply, number of pins/wires | 4 |
| Power supply, connection pattern | 00995989 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, To UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -20 ... 60 °C |
| Relative air humidity | 0 - 90% |
| Degree of protection | IP40 |
| Protection class | III |
| Ambient temperature | 0 ... 50 °C |
| Note on ambient temperature | Power must be reduced by 2% per K at ambient temperatures above 30°C. |
| 2nd moment of area Iy | 441000 mm⁴ |
| 2nd moment of area Iz | 542000 mm⁴ |
| Max. force Fy | 3641 N |
| Max. force Fz | 3641 N |
| Max. force Fy total axis | 600 N |
| Max. force Fz total axis | 1800 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 13400 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 13400 N |
| Max. moment Mx | 29.1 Nm |
| Max. moment My | 31.8 Nm |
| Max. moment Mz | 31.8 Nm |
| Max. moment Mx total axis | 29.1 Nm |
| Max. moment My total axis | 31.8 Nm |
| Max. moment Mz total axis | 31.8 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 107 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 117 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 117 Nm |
| Max. feed force Fx | 65 N |
| Reference value effective load, horizontal | 4 kg |
| Torsional mass moment of inertia It | 29800 mm⁴ |
| Feed constant | 78 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 482 g |
| Moving mass for 0 mm stroke | 482 g |
| Weight of slide | 139 g |
| Product weight | 11555 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, max. 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Specification logic input | Based on IEC 61131-2, type 1 |
| Working range of logic input | 24 V |
| IO-Link, SIO-Mode support | Yes |
| Features of logic input | Configurable, Not galvanically isolated |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM3 (230.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Number of ports | 1 |
| IO-Link, Process data length OUT | 2 bytes |
| IO-Link, Process data content OUT | Move in 1 bit, Move out 1 bit, Quit Error 1 bit, Move intermediate 1 bit |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | State Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit |
| IO-Link, Service data IN | 32 bit Force, 32 bit position, 32 bit speed |
| IO-Link, Min. cycle time | 1 ms |
| IO-Link, Data storage required | 500 byte |
| Max. cable length | 15 m outputs, 15 m inputs, 20 m with IO-Link® operation |
| Switching logic for outputs | PNP (positive switching) |
| Switching logic for inputs | PNP (positive switching) |
| IO-Link, connection technology | Plug |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded according to EN 61076-2-101 |
| Logic interface, number of pins/wires | 8 |
| Logic interface, plug pattern | 00992264 |
| Type of mounting | With female thread, With centring sleeve and pin, With accessories |
| Material end cap | Painted die cast aluminium |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | Stainless steel strip |
| Material drive cover | Painted die cast aluminium |
| Material guide slide | Tempered steel |
| Material guide rail | Tempered steel |
| Material pulleys | High-alloy stainless steel |
| Material slide | Die-cast aluminium |
| Material toothed belt | Polychloroprene with glass fibre |
| Weight | 35 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGS-TB-KF-60-2000-ST-M-H1-PLK-AA |
| EAN | 4052568458508 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Festo

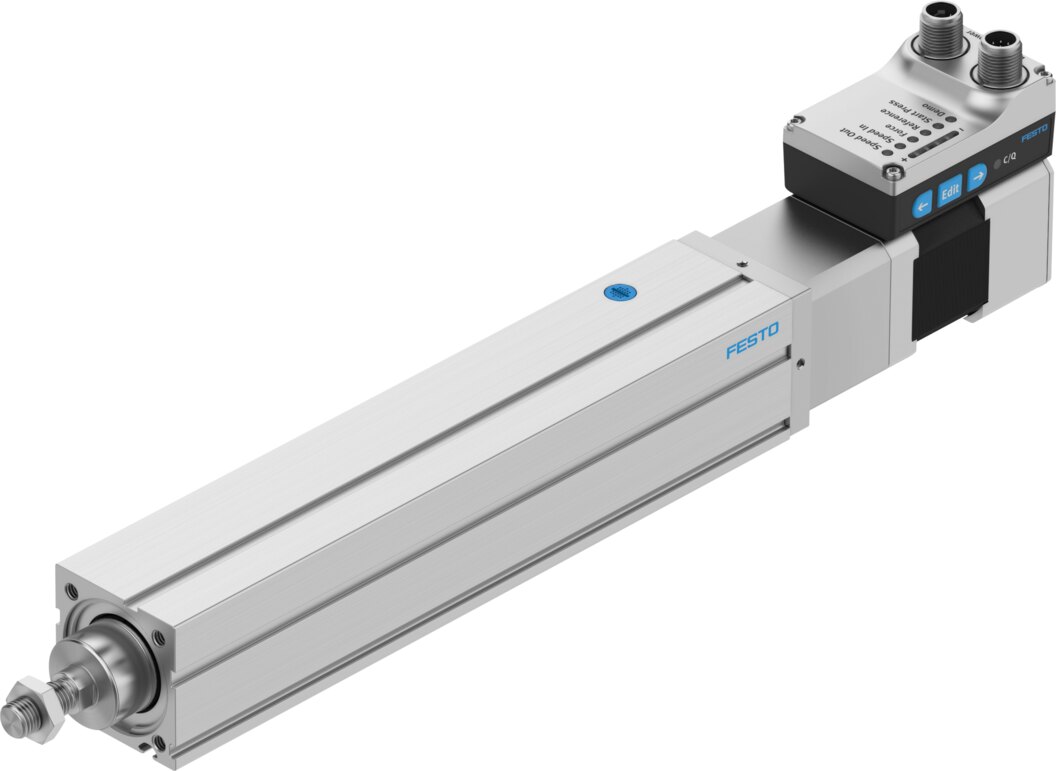

Electric cylinder unit EPCS-BS-45-150-3P-A-ST-M-H1-PLK-AA - Festo 8118277
