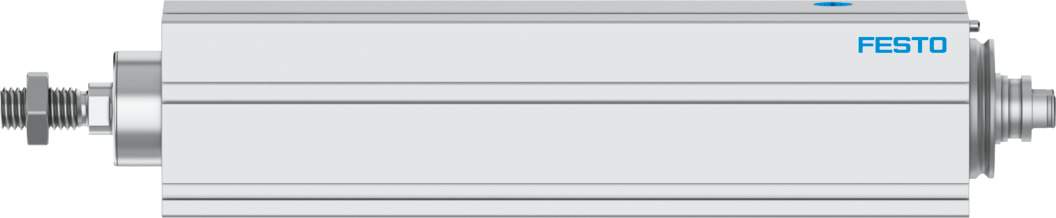

Electric cylinder ball screw size 45 stroke 75 mm EPCC-BS-45-75-10P-A - Festo 5428870

Festo ✓ Original product Brand new

The electric cylinder EPCC-BS-45-75-10P-A positions over a 75 mm stroke with a repeatability of ±0.02 mm. Ball screw with 10 mm pitch, feed force up to 450 N and travel speed up to 0.6 m/s. Suitable for stepper and servo motors, degree of protection IP40.

Net
€465.29
excl. VAT
Item FES-5428870
Manufacturer no. EPCC-BS-45-75-10P-A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo electric cylinder EPCC-BS-45-75-10P-A at a glance: 75 mm stroke, size 45, up to 0.6 m/s. The ball screw with 10 mm/rev pitch generates up to 450 N feed force at the piston rod (M10x1.25).

Advantages

  • Repeatability of ±0.02 mm over the full 75 mm stroke.
  • Short cycles with up to 0.6 m/s and 15 m/s².
  • Feed force up to 450 N in the direction of motion.
  • Reference payload 60 kg horizontal and 30 kg vertical.
  • Piston rod thread M10x1.25.
  • Lifetime lubrication, no relubrication in operation.

Application

The electric cylinder EPCC-BS-45-75-10P-A replaces pneumatic cylinders where freely programmable positions and defined forces are needed over a 75 mm stroke. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 1 kg.

Technical data

TypeEPCC-BS-45-75-10P-A
Size45
Stroke75 mm
Stroke reserve0 mm
Piston rod threadM10x1.25
Reversing backlash theoretical100 µm
Spindle diameter10 mm
Spindle pitch10 mm/U
Torsional backlash at piston rod +/-1 deg
Mounting positionAny
Piston-rod endMale thread
Type of motorStepper motor, servo motor
Position detectionVia proximity switch
DesignWith ball screw
Spindle typeBall screw
Protection against torque/guideWith plain-bearing guide
Maximum acceleration15 m/s²
Maximum rotational speed3600 1/min
Maximum speed0.6 m/s
Maximum homing speed0.01 m/s
Repetition accuracy±0.02 mm
Duty cycle100%
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1
Storage temperature-20 to 60 °C
Relative air humidityNon-condensing
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.012 J
Maximum drive torque0.9 Nm
Maximum moment Mx0 Nm
Maximum moment My2.9 Nm
Maximum moment Mz2.9 Nm
Maximum radial force at drive shaft180 N
Maximum feed force Fx450 N
Frictional torque independent of load0.16 Nm
Reference value effective load, horizontal60 kg
Reference value effective load, vertical30 kg
Mass moment of inertia JH per metre of stroke0.0711 kgcm²
Mass moment of inertia JL per kg of working load0.0253 kgcm²
Mass moment of inertia JO0.0153 kgcm²
Maintenance intervalLifetime lubrication
Moving mass for 0 mm stroke179 g
Additional moving mass per 10 mm stroke4.9 g
Basic weight for 0 mm stroke555 g
Additional weight per 10 mm stroke41 g
Type of mountingWith female thread, with accessories
Note on materialsRoHS compliant
Material housingSmooth-anodised
Material piston rodHigh-alloy stainless steel
Material ball screw nutSteel
Material spindleBearing steel
Weight (price list)1 kg
Weight1 kg
ManufacturerFesto
Hersteller-NrEPCC-BS-45-75-10P-A
EAN4052568452230
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]75
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
