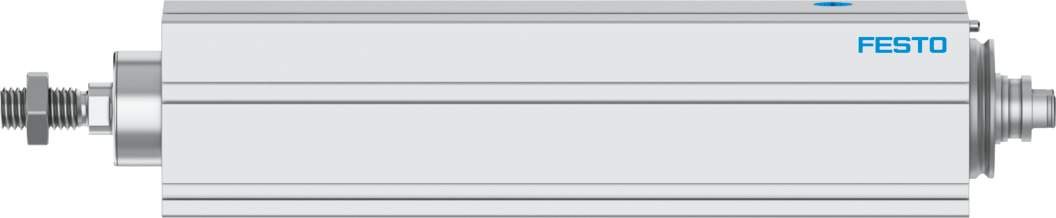

Electric cylinder ball screw size 45 stroke 100 mm EPCC-BS-45-100-10P-A - Festo 5428871
The electric cylinder EPCC-BS-45-100-10P-A positions over a 100 mm stroke with a repeatability of ±0.02 mm. Ball screw with 10 mm pitch, feed force up to 450 N and travel speed up to 0.6 m/s. Suitable for stepper and servo motors, degree of protection IP40.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo electric cylinder EPCC-BS-45-100-10P-A at a glance: 100 mm stroke, size 45, up to 0.6 m/s. The ball screw with 10 mm/rev pitch generates up to 450 N feed force at the piston rod (M10x1.25).
Advantages
- Repeatability of ±0.02 mm over the full 100 mm stroke.
- Short cycles with up to 0.6 m/s and 15 m/s².
- Feed force up to 450 N in the direction of motion.
- Reference payload 60 kg horizontal and 30 kg vertical.
- Piston rod thread M10x1.25.
- Lifetime lubrication, no relubrication in operation.
Application
The electric cylinder EPCC-BS-45-100-10P-A replaces pneumatic cylinders where freely programmable positions and defined forces are needed over a 100 mm stroke. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 1.1 kg.
Technical data
| Type | EPCC-BS-45-100-10P-A |
|---|---|
| Size | 45 |
| Stroke | 100 mm |
| Stroke reserve | 0 mm |
| Piston rod thread | M10x1.25 |
| Reversing backlash theoretical | 100 µm |
| Spindle diameter | 10 mm |
| Spindle pitch | 10 mm/U |
| Torsional backlash at piston rod +/- | 1 deg |
| Mounting position | Any |
| Piston-rod end | Male thread |
| Type of motor | Stepper motor, servo motor |
| Position detection | Via proximity switch |
| Design | With ball screw |
| Spindle type | Ball screw |
| Protection against torque/guide | With plain-bearing guide |
| Maximum acceleration | 15 m/s² |
| Maximum rotational speed | 3600 1/min |
| Maximum speed | 0.6 m/s |
| Maximum homing speed | 0.01 m/s |
| Repetition accuracy | ±0.02 mm |
| Duty cycle | 100% |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | Non-condensing |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.012 J |
| Maximum drive torque | 0.9 Nm |
| Maximum moment Mx | 0 Nm |
| Maximum moment My | 2.9 Nm |
| Maximum moment Mz | 2.9 Nm |
| Maximum radial force at drive shaft | 180 N |
| Maximum feed force Fx | 450 N |
| Frictional torque independent of load | 0.16 Nm |
| Reference value effective load, horizontal | 60 kg |
| Reference value effective load, vertical | 30 kg |
| Mass moment of inertia JH per metre of stroke | 0.0711 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.0253 kgcm² |
| Mass moment of inertia JO | 0.0153 kgcm² |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 179 g |
| Additional moving mass per 10 mm stroke | 4.9 g |
| Basic weight for 0 mm stroke | 555 g |
| Additional weight per 10 mm stroke | 41 g |
| Type of mounting | With female thread, with accessories |
| Note on materials | RoHS compliant |
| Material housing | Smooth-anodised |
| Material piston rod | High-alloy stainless steel |
| Material ball screw nut | Steel |
| Material spindle | Bearing steel |
| Weight (price list) | 1.1 kg |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EPCC-BS-45-100-10P-A |
| EAN | 4052568452247 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 100 |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
