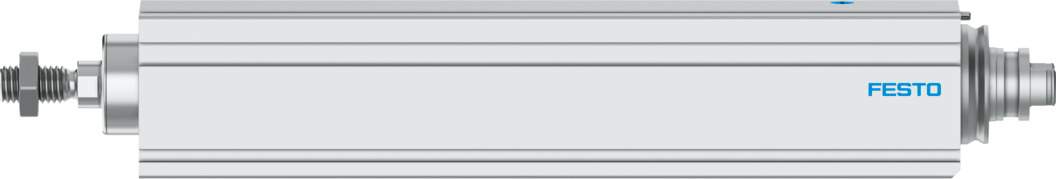

Electric cylinder EPCC-BS-32-125-8P-A - Festo 5428845

Name: Electric cylinder EPCC-BS-32-125-8P-A - Festo 5428845
Brand: Festo
SKU: FES-5428845
Price: 403.64 EUR
Availability: InStock

Festo ✓ Original product Brand new

Net

€403.64

excl. VAT

Item FES-5428845

Manufacturer no. EPCC-BS-32-125-8P-A

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Technical data

Size	32
Stroke	125 mm
Stroke reserve	0 mm
Piston rod thread	M8
Reversing backlash theoretical	100 µm
Spindle diameter	8 mm
Spindle pitch	8 mm/U
Torsional backlash at piston rod +/-	1 deg
Mounting position	Any
Piston-rod end	Male thread
Type of motor	Stepper motor, Servo motor
Position detection	Via proximity switch
Design	With ball screw
Spindle type	Ball screw
Protection against torque/guide	With plain-bearing guide
Max. acceleration	15 m/s²
Max. rotational speed	3750 1/min
Max. speed	0.5 m/s
Max. homing speed	0.01 m/s
Repetition accuracy	±0.02 mm
Duty cycle	100%
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Suitability for the production of Li-ion batteries	Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14	Class 9 according to ISO 14644-1
Storage temperature	-20 ... 60 °C
Relative air humidity	Non-condensing
Degree of protection	IP40
Ambient temperature	0 ... 60 °C
Impact energy in end positions	0.0036 J
Max. drive torque	0.3 Nm
Max. moment Mx	0 Nm
Max. moment My	1.5 Nm
Max. moment Mz	1.5 Nm
Max. radial force at drive shaft	75 N
Max. feed force Fx	150 N
Frictional torque independent of load	0.095 Nm
Reference value effective load, horizontal	24 kg
Reference value effective load, vertical	12 kg
Mass moment of inertia JH per metre of stroke	0.0311 kgcm²
Mass moment of inertia JL per kg of working load	0.0162 kgcm²
Mass moment of inertia JO	0.0055 kgcm²
Maintenance interval	Lifetime lubrication
Moving mass for 0 mm stroke	98 g
Additional moving mass per 10 mm stroke	3.3 g
Basic weight for 0 mm stroke	225 g
Additional weight per 10 mm stroke	24 g
Type of mounting	With female thread, With accessories
Note on materials	RoHS compliant
Material housing	Smooth-anodised
Material piston rod	High-alloy stainless steel
Material ball screw nut	Steel
Material spindle	Bearing steel
Weight	0.7 kg
Manufacturer	Festo
Hersteller-Nr	EPCC-BS-32-125-8P-A
EAN	4052568452551
Zolltarifnummer	84799070
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
