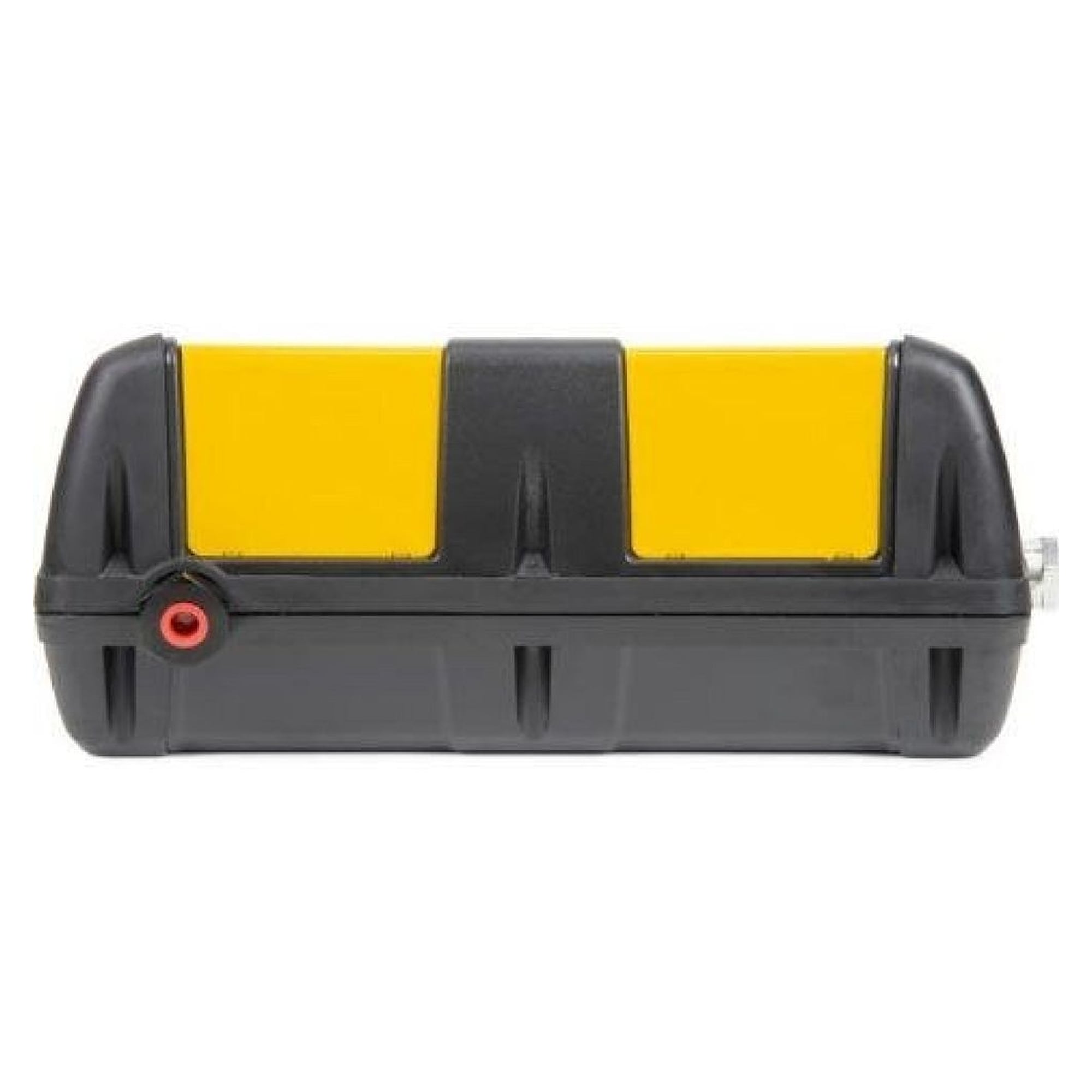

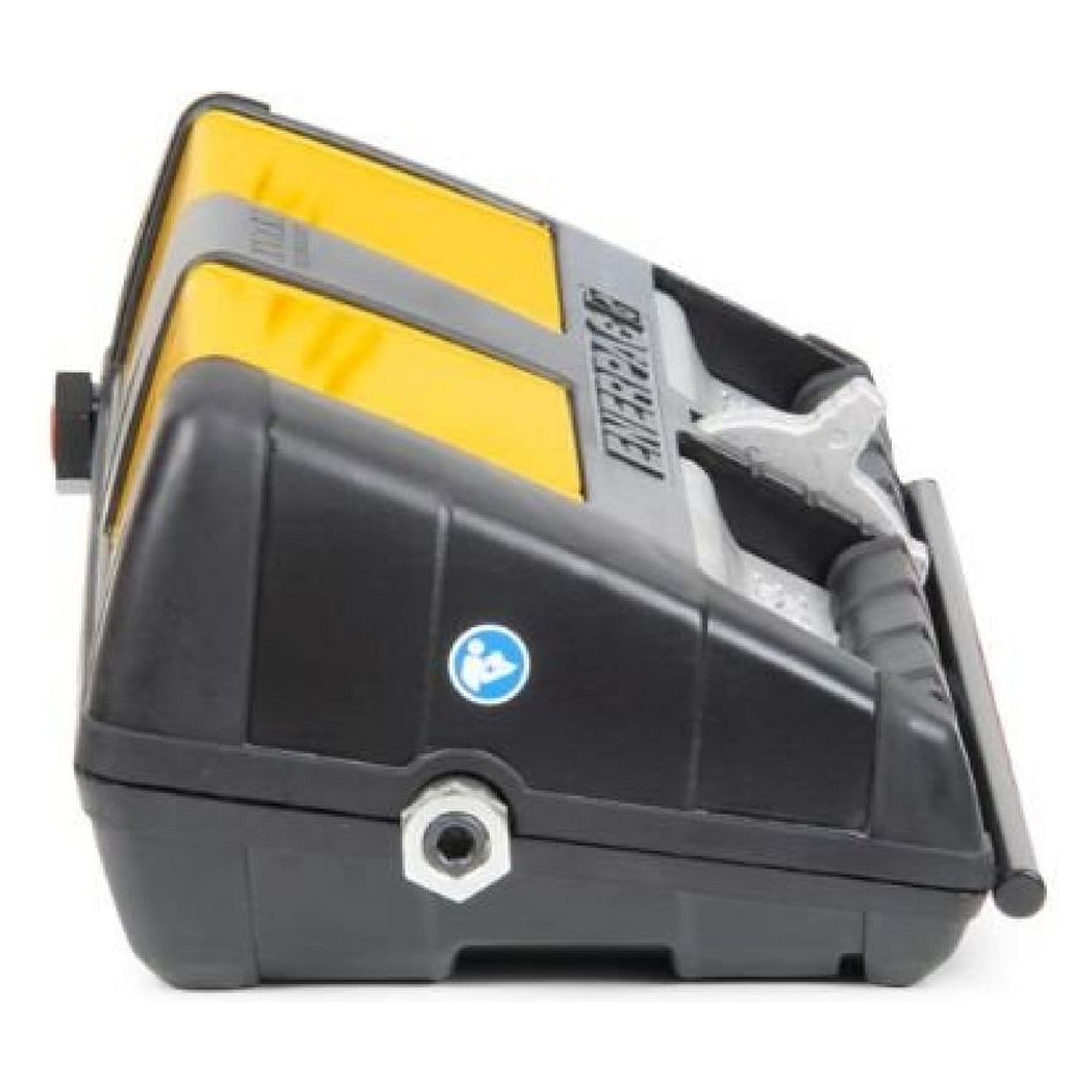

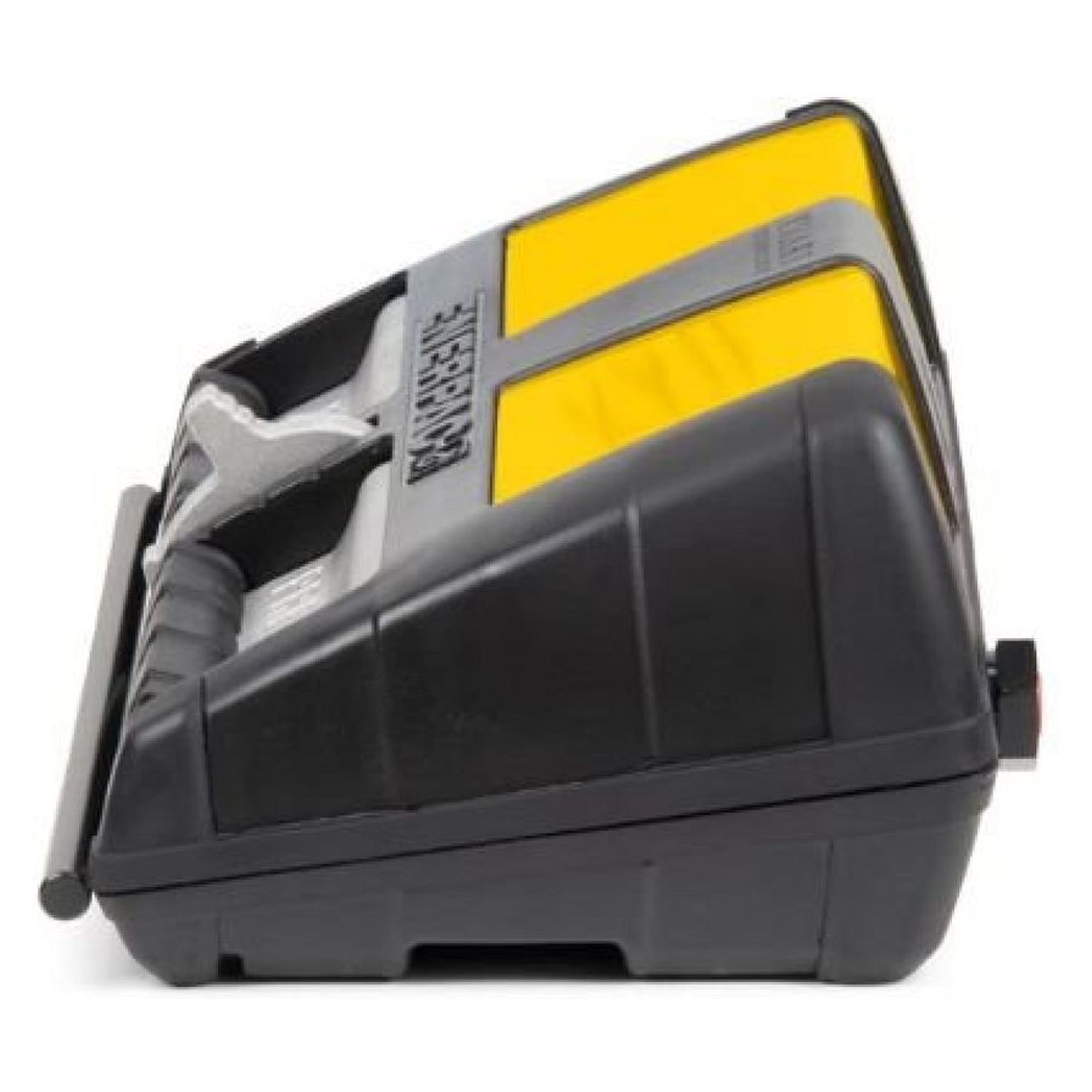

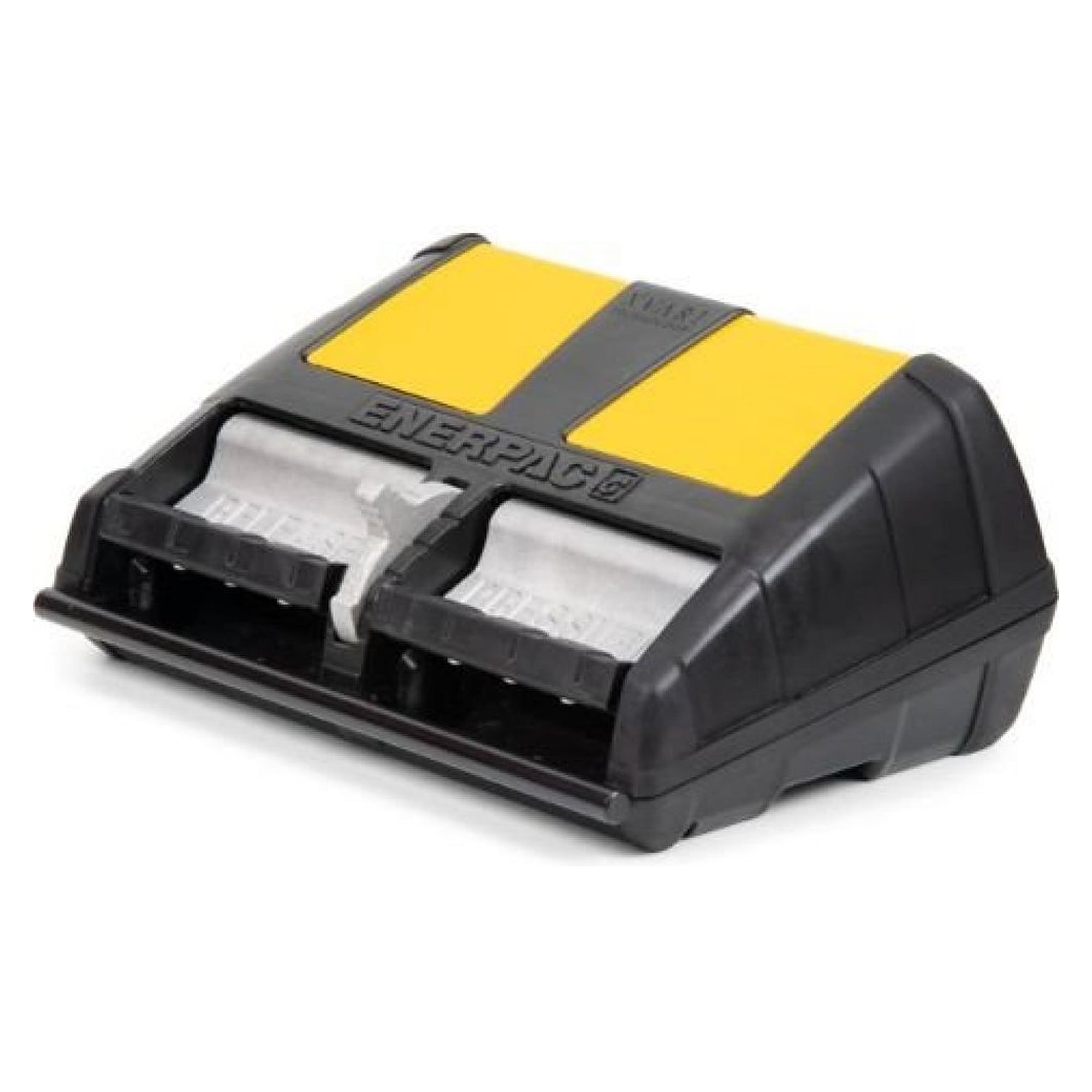

Air Driven Hydraulic Foot Pump, 3/3 Valve, 1 L - Enerpac XA11

The XA11 is an air-driven hydraulic foot pump with a 1-litre reservoir for hands-free operation of hydraulic tools. Two pedals control pressure build-up and release, and the 3/3 valve allows fine metering of stroke and force without a free hand.

Benefits

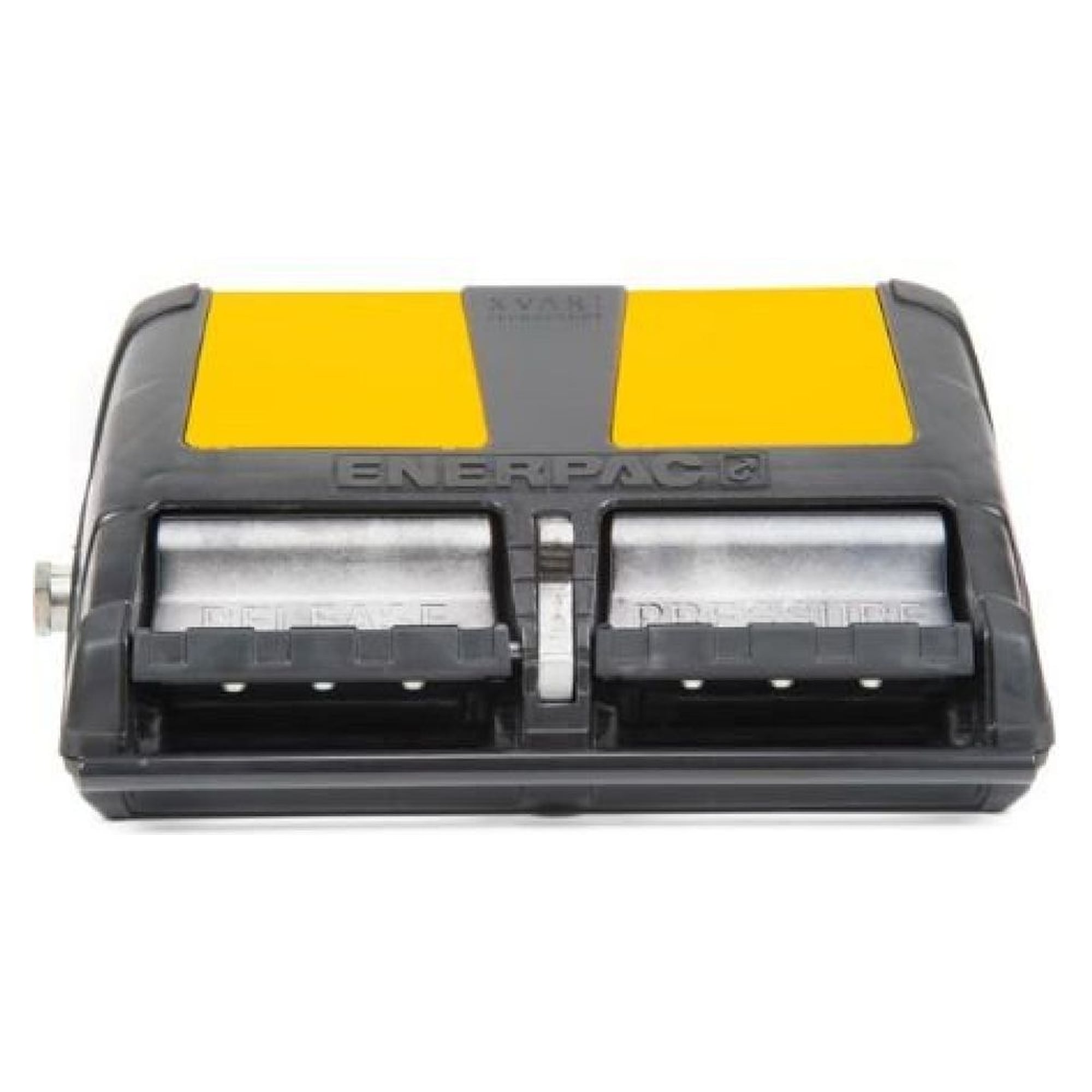

• Hands-free operation via two pedals, with lock in the retract position
• Variable delivery for precise control of stroke and force
• Closed hydraulic system, usable in any position and protected from contamination
• Ergonomic design for low-fatigue operation
• Externally adjustable pressure relief valve

Technical data

• Drive: air-driven (compressed air)
• Valve: 3/3-way
• Usable oil volume: 1 L
• Operating pressure: 700 bar
• Weight: 8.6 kg
• Series: XA

Standards

• Grounding screw for ATEX-compliant equipotential bonding
