Secure-Grip In-Line Flange Spreader Set, 250 kN, 120 mm Max. Spread - Enerpac SG25TESTD

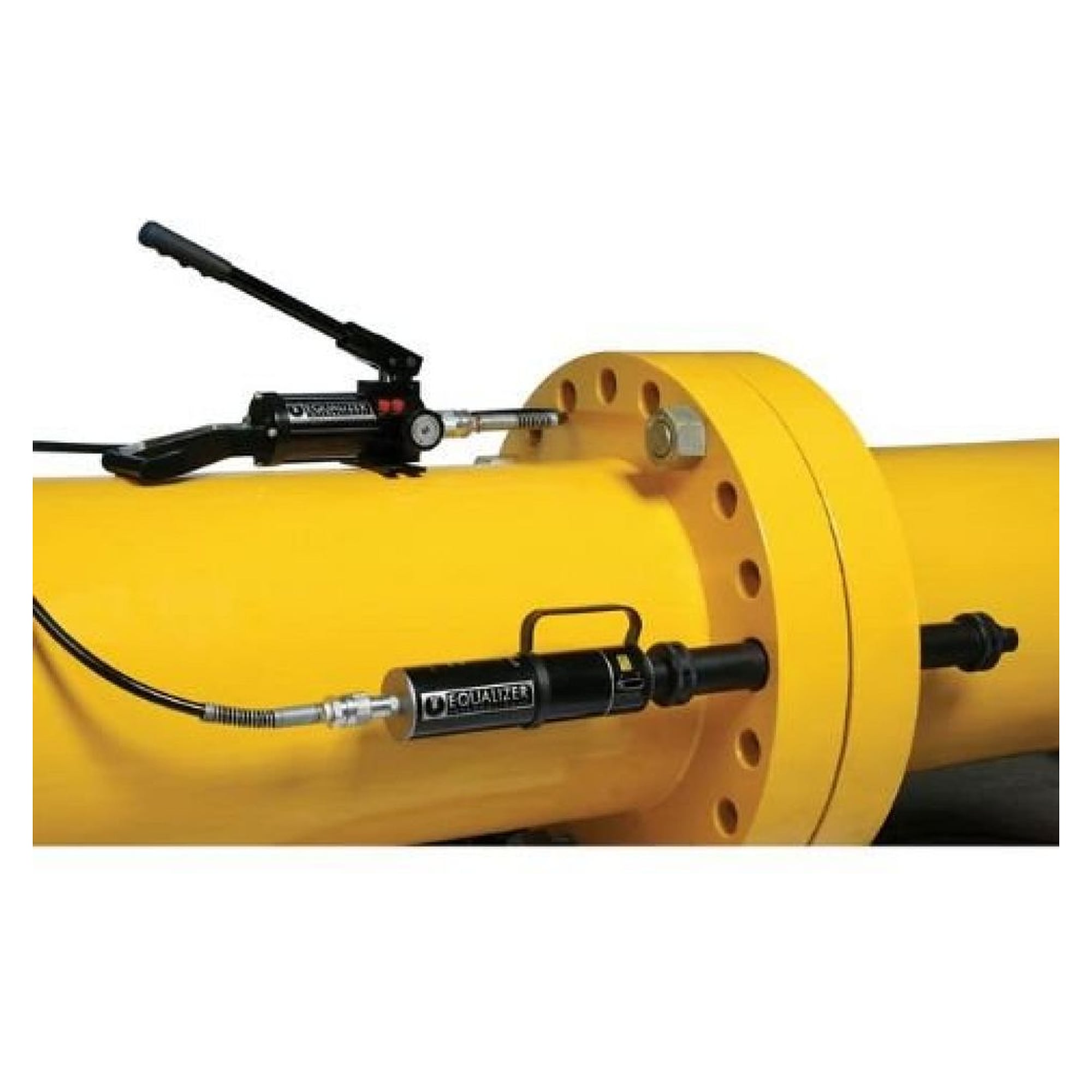

The In-line SG25TE Secure-Grip flange spreader safely parts bolted flanges and delivers up to 250 kN (28,1 tons) of spreading force, up to 500 kN when used in the recommended pair. Hydraulic drive from the supplied 700 bar HP550S hand pump gives controlled force build-up.

Benefits

• Positive collet grip in bolt holes from 75 to 108 mm prevents the tool from slipping
• Adjustable drive cones spread flanges and free spacers, wafers or butterfly valves
• Up to 250 kN of spreading force on its own, 500 kN in a pair
• Hydraulic drive with sealed HP550S hand pump and 2 m hose
• Collet holders can be dismantled and inserted through the bolt holes from the opposite side

Technical data

• Spreading force: 250 kN (28.1 tons)
• Spreading force in a pair: 500 kN
• Bolt-hole range: 75 - 108 mm
• Max. spread: 120 mm
• Drive: hydraulic (HP550S hand pump, 700 bar)
• Operating pressure: 700 bar
• Weight: 50 kg
• Series: SG

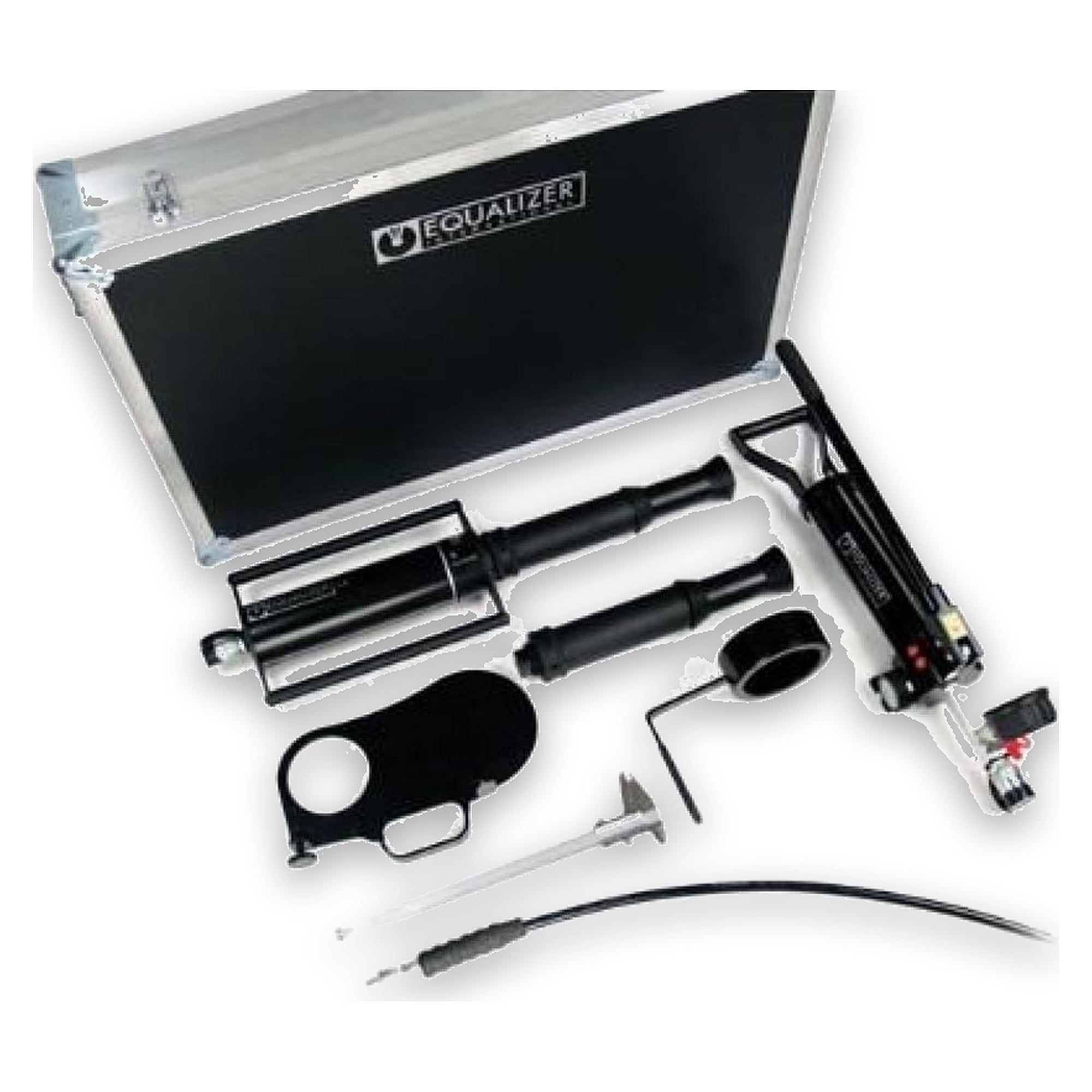

In the box

• SG25TE tool with hydraulic cylinder
• spreading plug
• HP550S hand pump with gauge, 700 bar
• 700 bar hydraulic hose, 2 m
• 300 mm vernier calliper
• spacer plate
• safety block
• instruction manual and carry case with foam inserts (collets sold separately)
