Enerpac SG13TESTD, 130 kN, Secure-Grip Flange Spreader Set, 115 mm Maximum Spread

Model: SG13TESTD |ECCN: EAR99 | Harmonization: 8479899599
Series: SG |Product Line: Bolting Tools

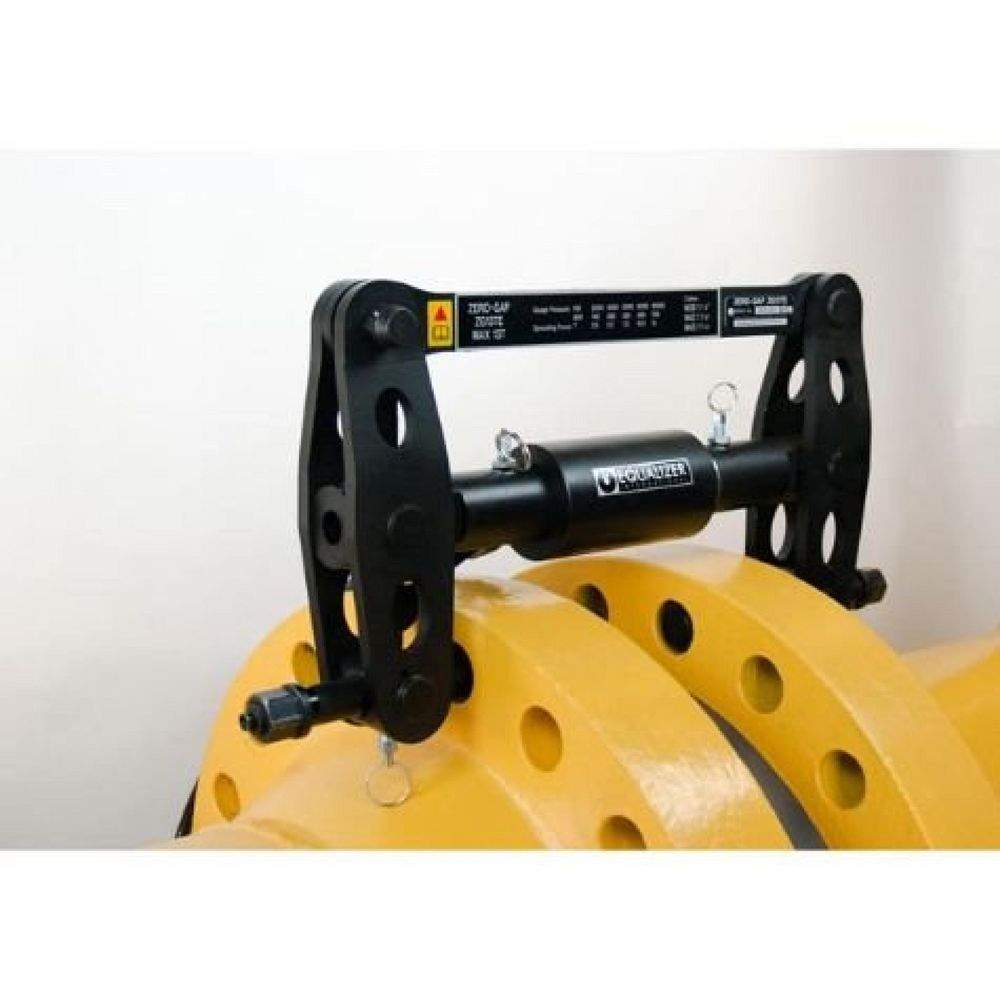

• The SG13TE secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes ranging from 38 mm (1.49”) to 49 mm (1.92”). The collet holders are supplied with adjustable drive cones which can be adjusted outward from their central position allowing the tool to spread flanges apart and remove a spacer, wafer or butterfly valve. This mid-end, hydraulic model offers up to 14.6 imperial tons (130 kN) of spreading force.
• Spreading force of 29.2 imperial tons (260 kN) if used in pairs as recommended.

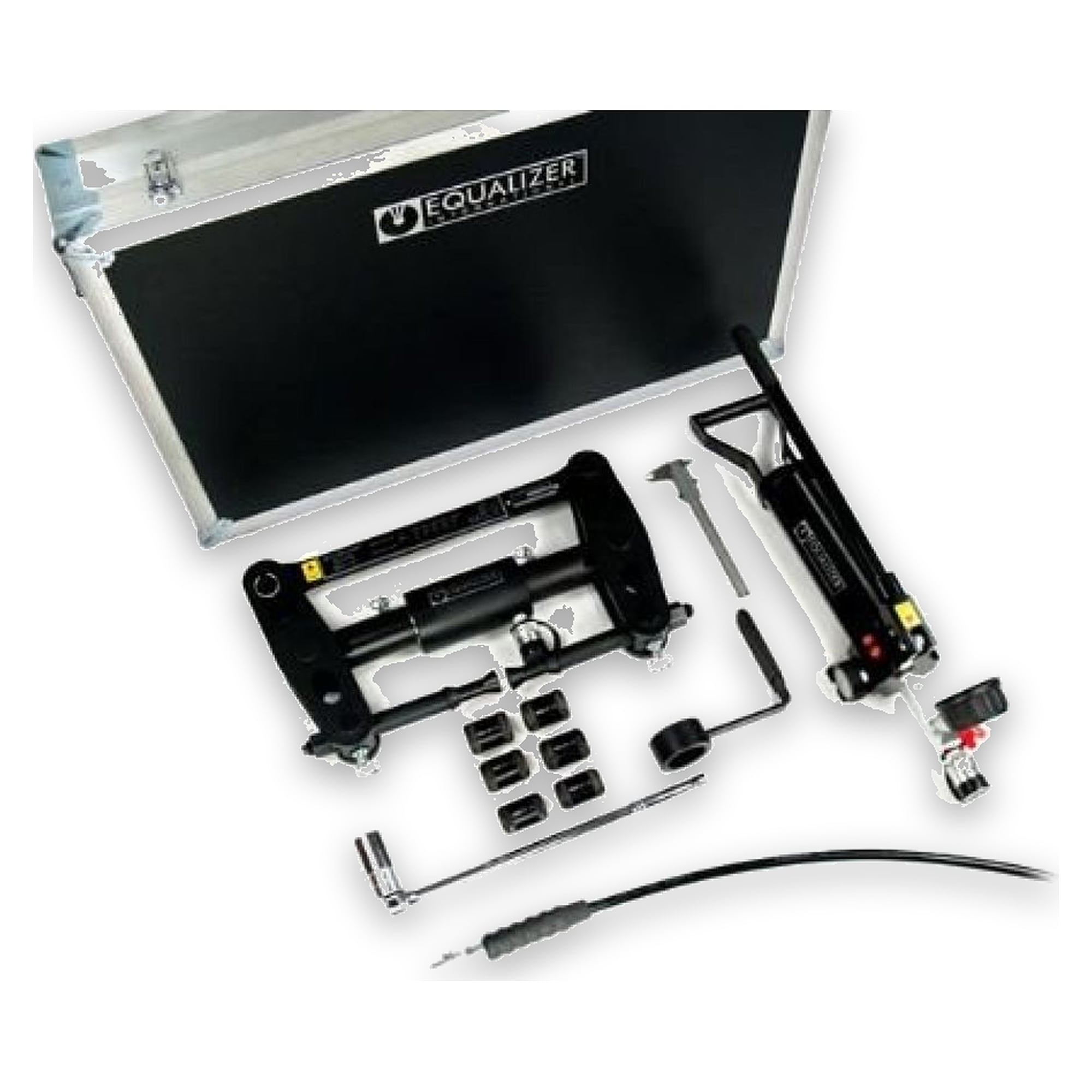

• Set Includes:
  1 x SG13TE Tool c/w Hydraulic Cylinder
  1 x 700 bar (10 000 psi) HP 550S Sealed Hand Pump with Gauge
  1 x 700 bar (10 000 psi) Hydraulic Hose, 2 m (78.7”)
  1 x 150 mm (6”) Vernier Calliper
  1 x (1/2”) Square Drive Flexible Handle
  1 x 30 mm (1 1/8”) Socket
  1 x Safety Block
  2 x M39 (1 1/2”) Collets
  2 x M42 (1 5/8”) Collets
  2 x M45 (1 3/4”) Collets
  1 x Instruction Manual
  1 x Carry Case with protective foam inserts
• Short Collet Holder Sets (SCH) are available which can offer improved range of application.
• Collet Holders can also be dismantled and inserted through bolt-holes from opposite side.

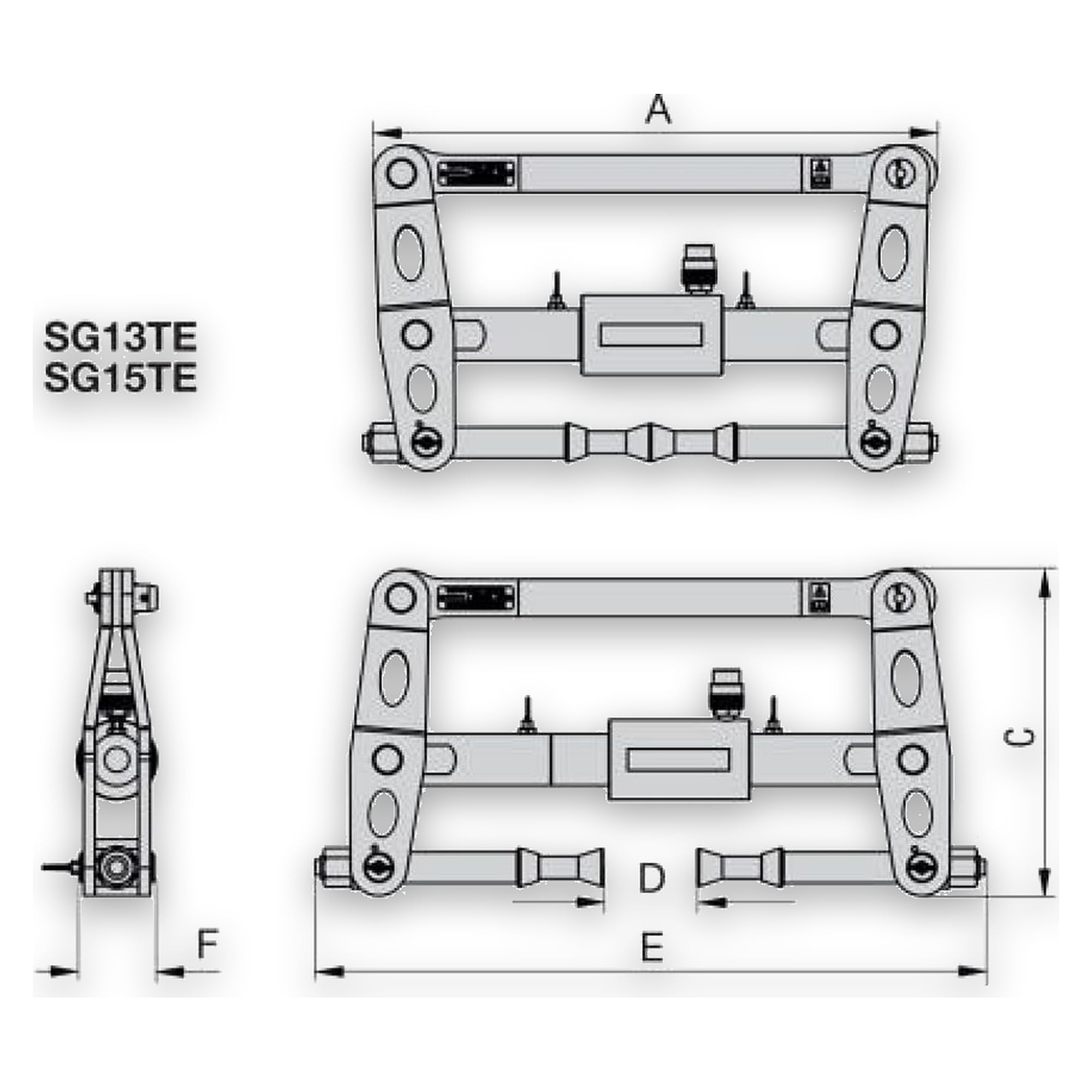

Dimension imperial

Dimension metric
