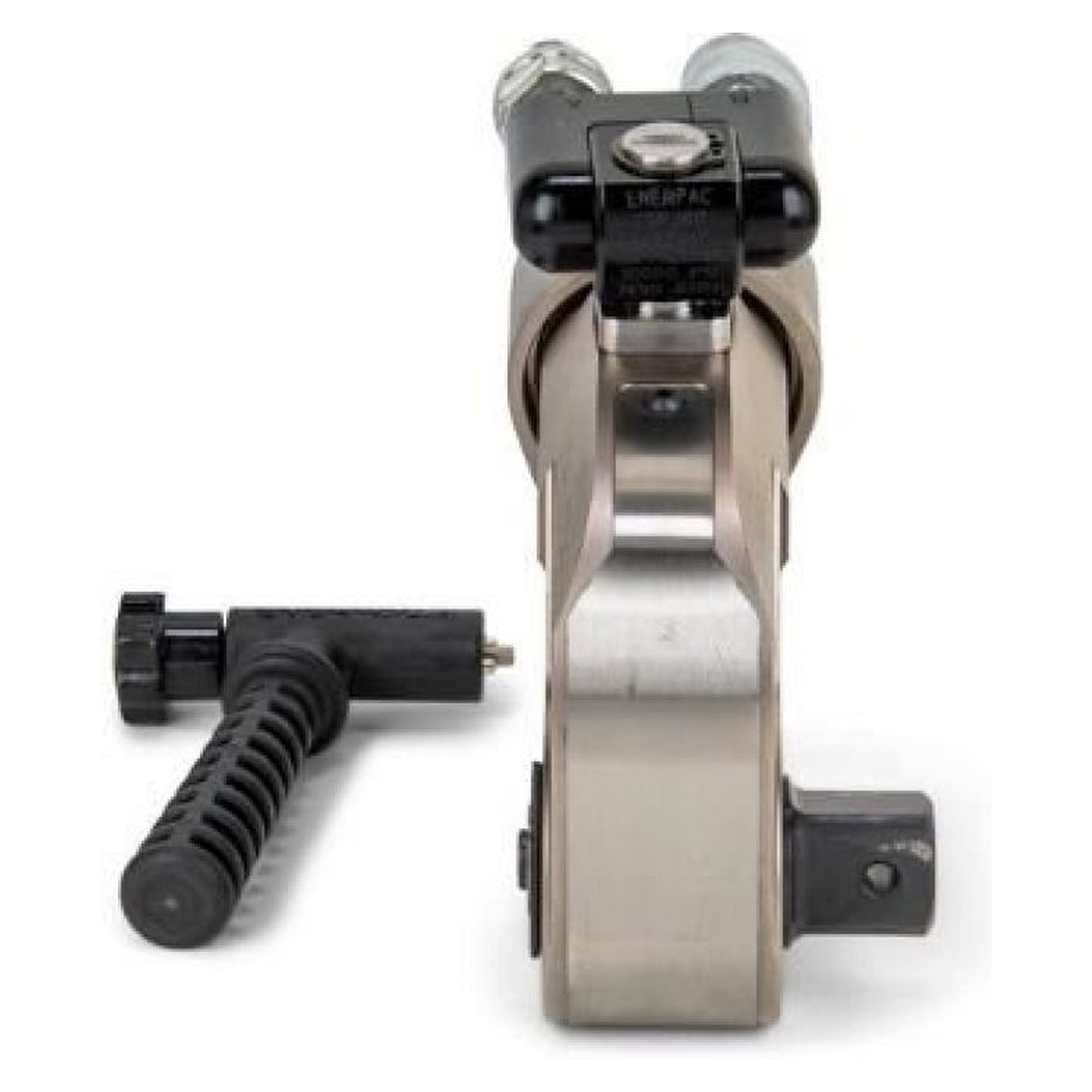

Hydraulic Torque Wrench, 4373 Nm, 1 in. Square Drive - Enerpac S3000PX

The S3000PX delivers up to 4373 Nm of torque through a 1 in. square drive, covering large bolting joints in plant construction and power generation. Constant torque output stays accurate to within +/- 3 % across the full stroke.

Benefits

• Compact uni-body construction gives a small head radius without sacrificing endurance
• 35 degree rotation angle and rapid return stroke for fast operation
• 360 degree click-on reaction arm with quick-release lever, usable even with gloves
• Push-button square drive release for quickly reversing the operating direction
• Optional TSP300 tilt and swivel manifold for horizontal and vertical maneuverability

Technical data

• Torque: 4373 Nm
• Square drive: 1 in.
• Torque accuracy: +/- 3 %% across the full stroke
• Operating stroke: 35 degree drive angle
• Operating pressure: 700 bar

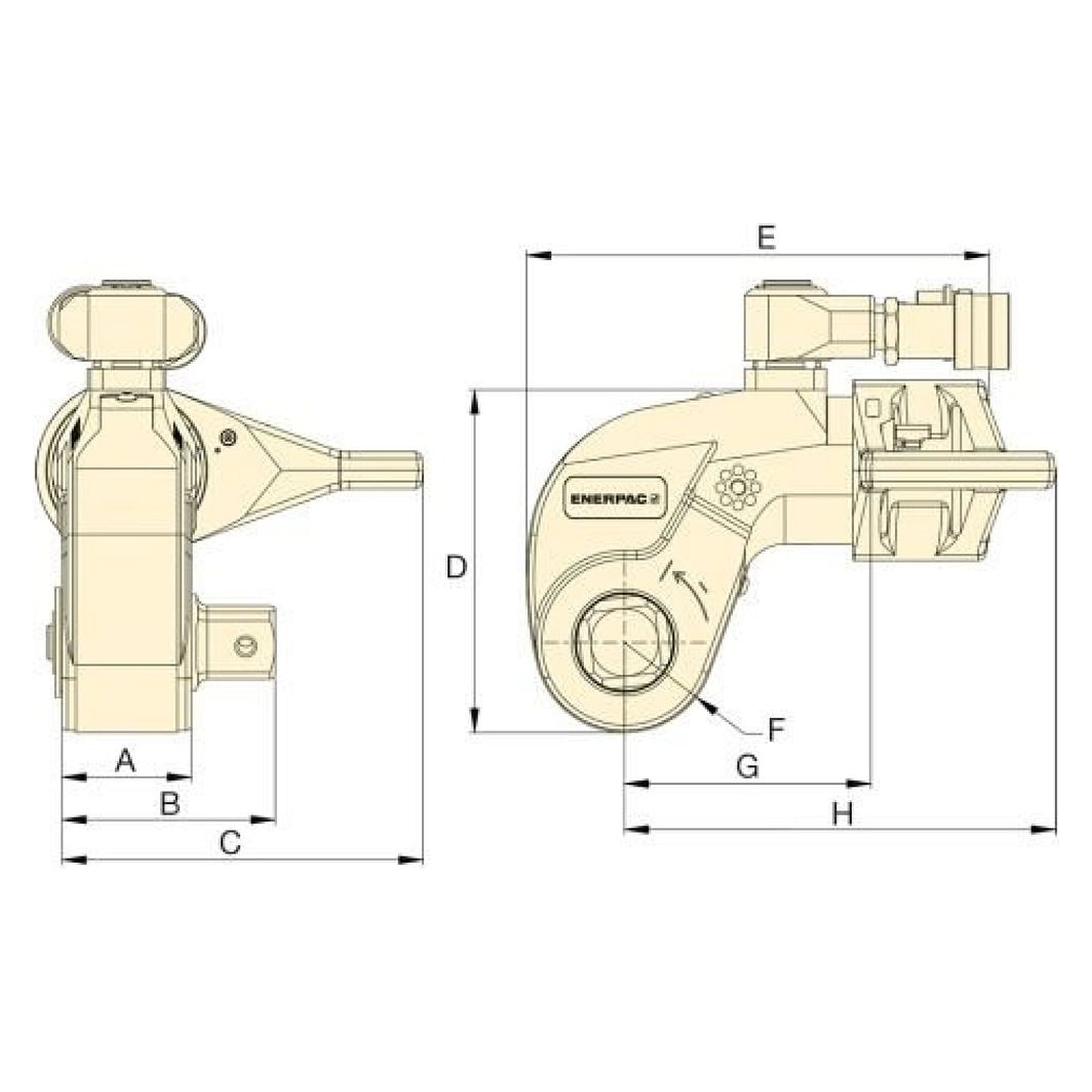

• Height: 153 mm
• Weight: 5.6 kg
• Series: S-PX

Applications

For heavy bolting in industrial, power generation and oil and gas work. Allow about 250 percent of the tightening torque to loosen.
