General Purpose Cylinder, 933 kN, 460 mm Stroke - Enerpac RR10018

The RR10018 general purpose cylinder lifts and pushes loads with 933 kN of force over a long 460 mm stroke. A built-in safety valve guards against over-pressurisation and the plunger wiper keeps contamination out.

Benefits

• Collar and plunger threads plus base mounting holes for easy fixturing
• Baked enamel finish for increased corrosion resistance
• Removable hardened saddles protect the plunger during lifting and pressing
• Built-in safety valve prevents accidental over-pressurisation
• Plunger wiper reduces contamination and extends cylinder life
• CR400 coupler included as standard

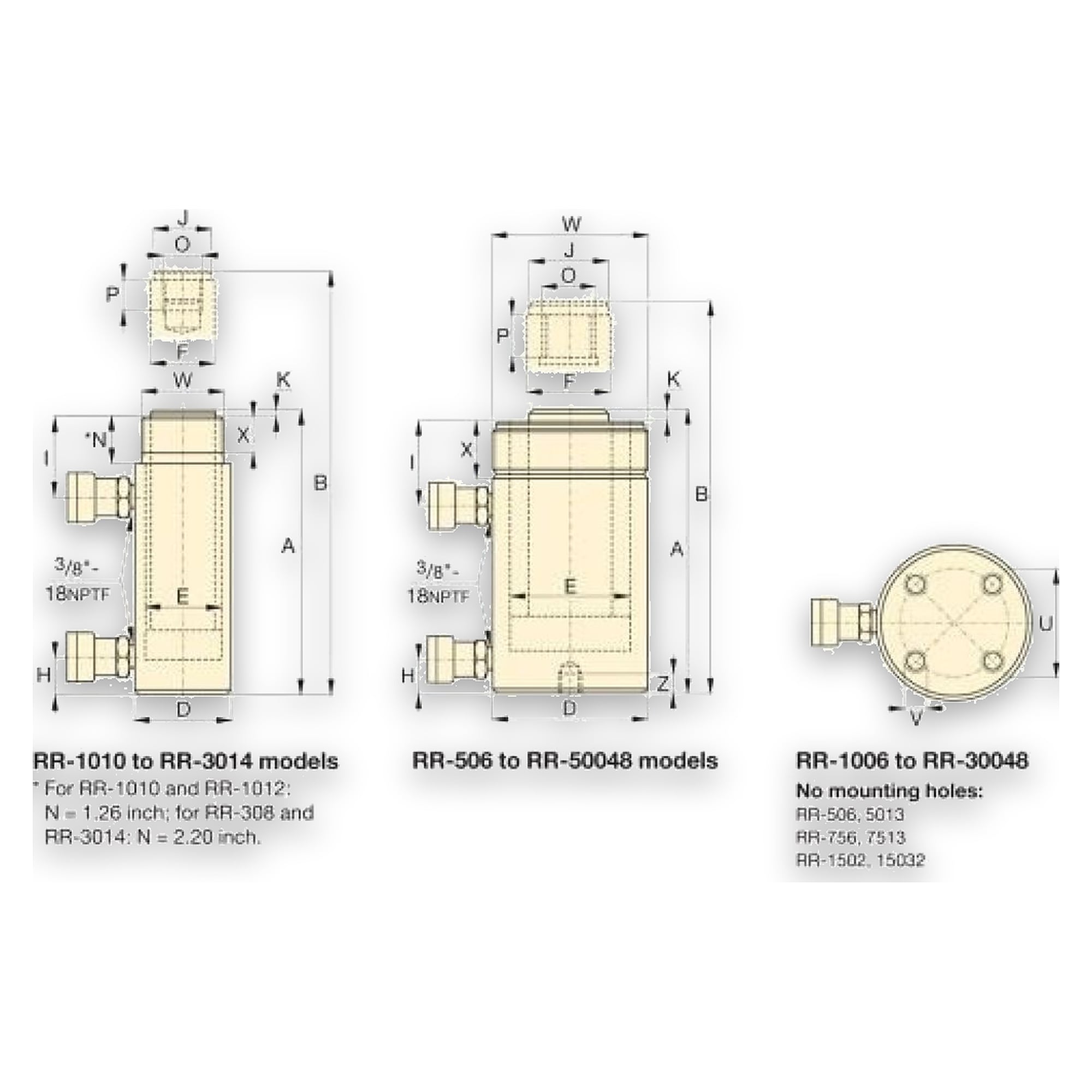

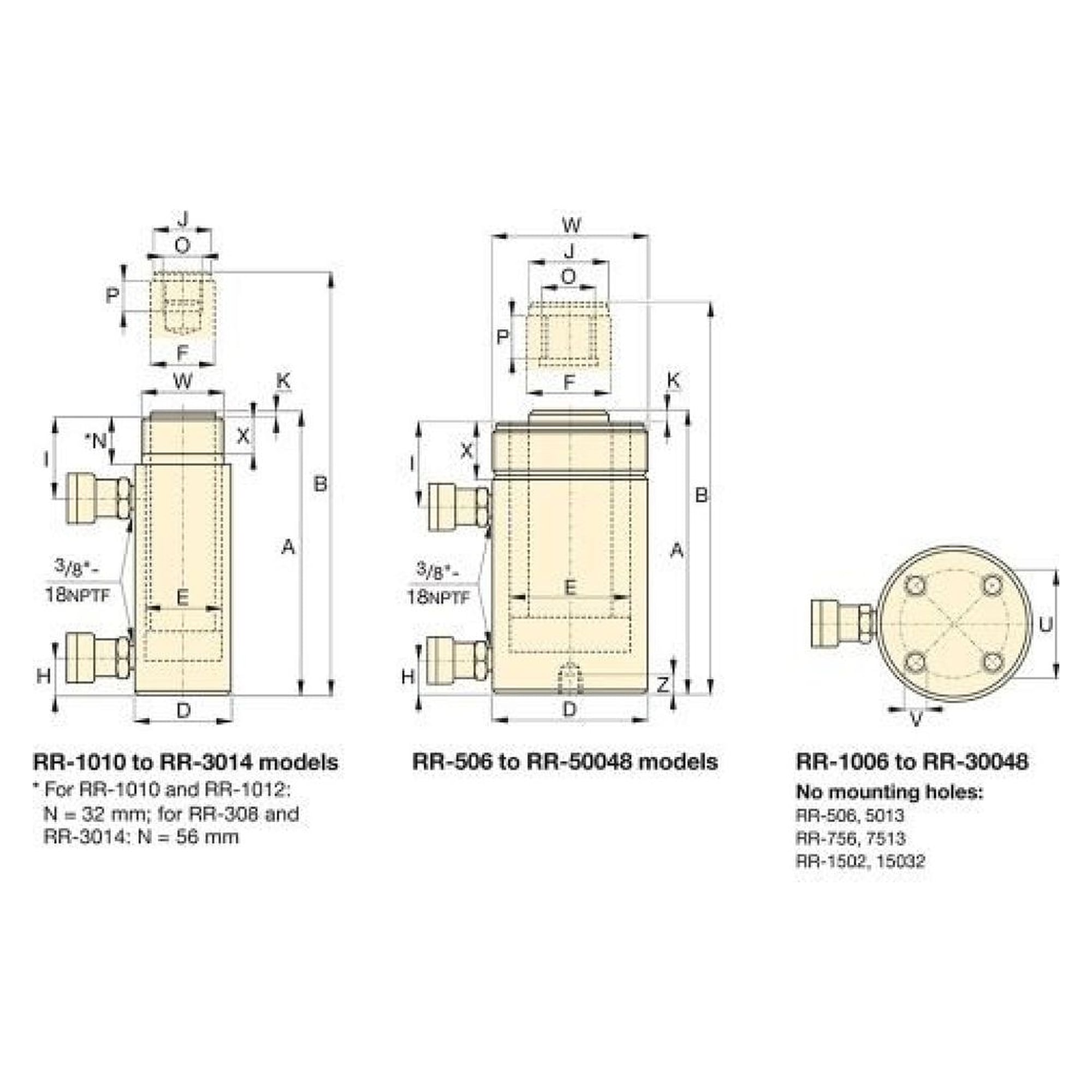

Technical data

• Type: general purpose cylinder, double-acting
• Capacity: 933 kN
• Stroke: 460 mm
• Operating pressure: 700 bar
• Collapsed height: 687 mm
• Extended height: 1147 mm
• Outside diameter: 177 mm
• Weight: 117 kg
• Series: RR

Applications

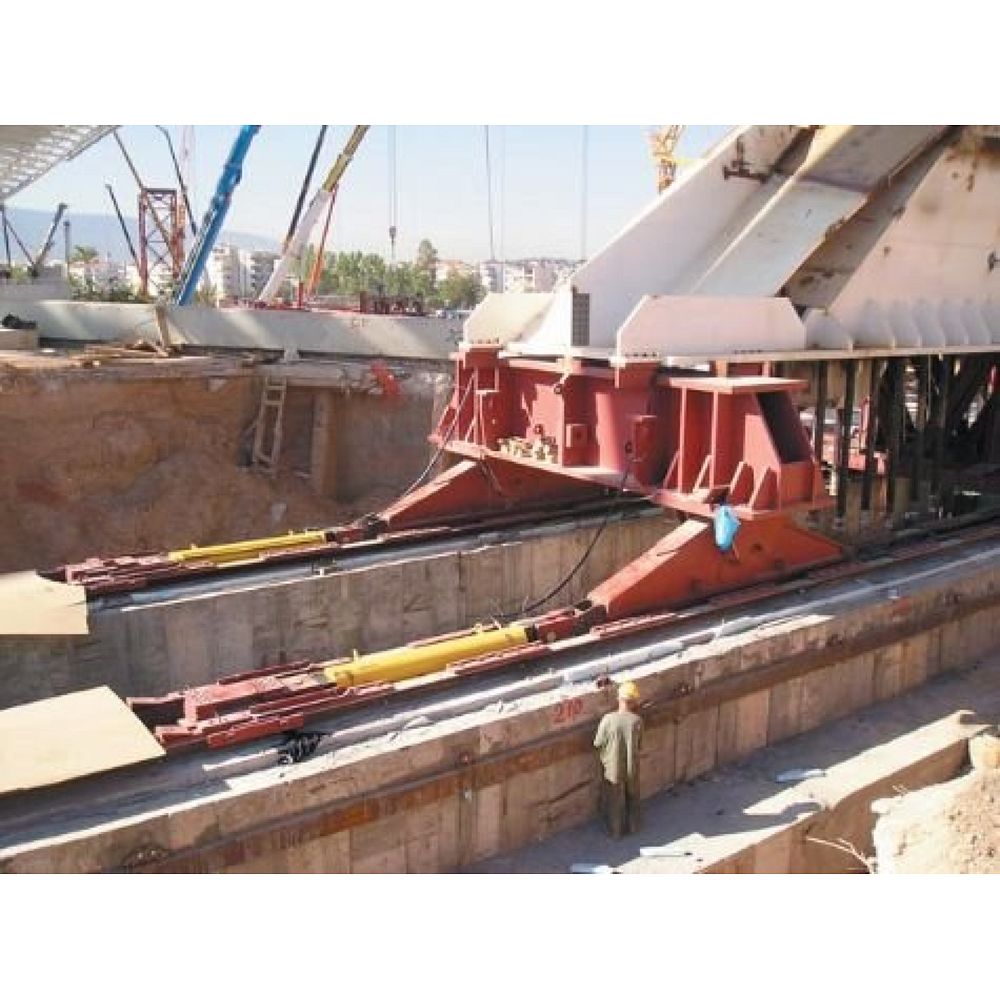

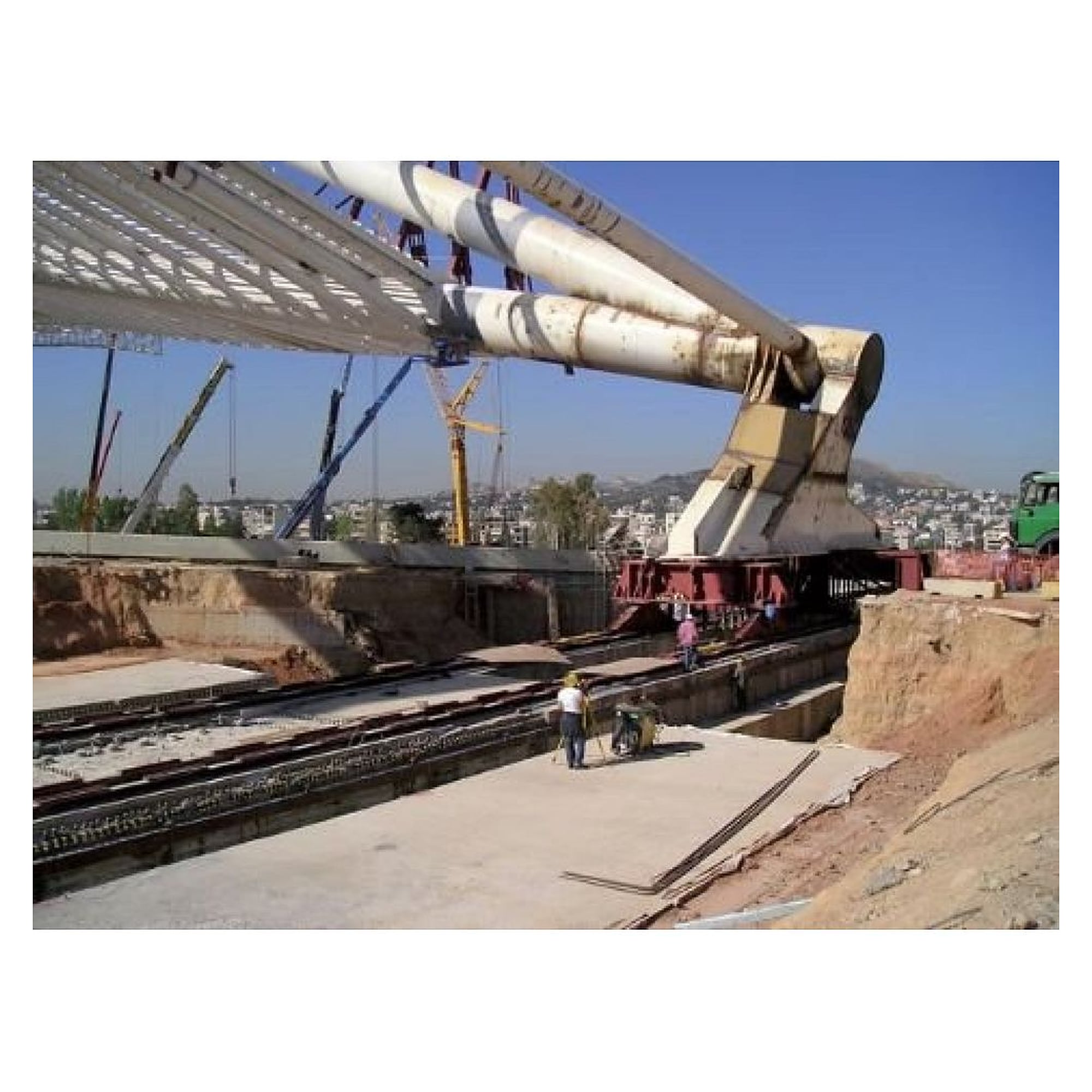

For demanding high-cycle lifting and pressing in construction and manufacturing, usable horizontally and inverted.

Standards

• Compliant with ASME B30.1
