Aluminum Lock Nut Hydraulic Cylinder, 1002 kN, 100 mm Stroke - Enerpac RACL1004
Datasheet (PDF)
Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Single-acting aluminum lock nut hydraulic cylinder delivering 1002 kN over a 100 mm stroke. The lock nut holds the load mechanically, even if pressure drops, at about 24.2 kg.

Aluminum Lock Nut Hydraulic Cylinder, 1002 kN, 100 mm Stroke - Enerpac RACL1004

ENERPAC Original product
Net price (excl. VAT)
€5,016.11 €4,215.22
Item ENP-RACL1004
Manufacturer no. RACL1004
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.RACL1004
Country of originUnited States
ConditionNew
Add to Wish List Add to Compare
Artikel
ENP-RACL1004

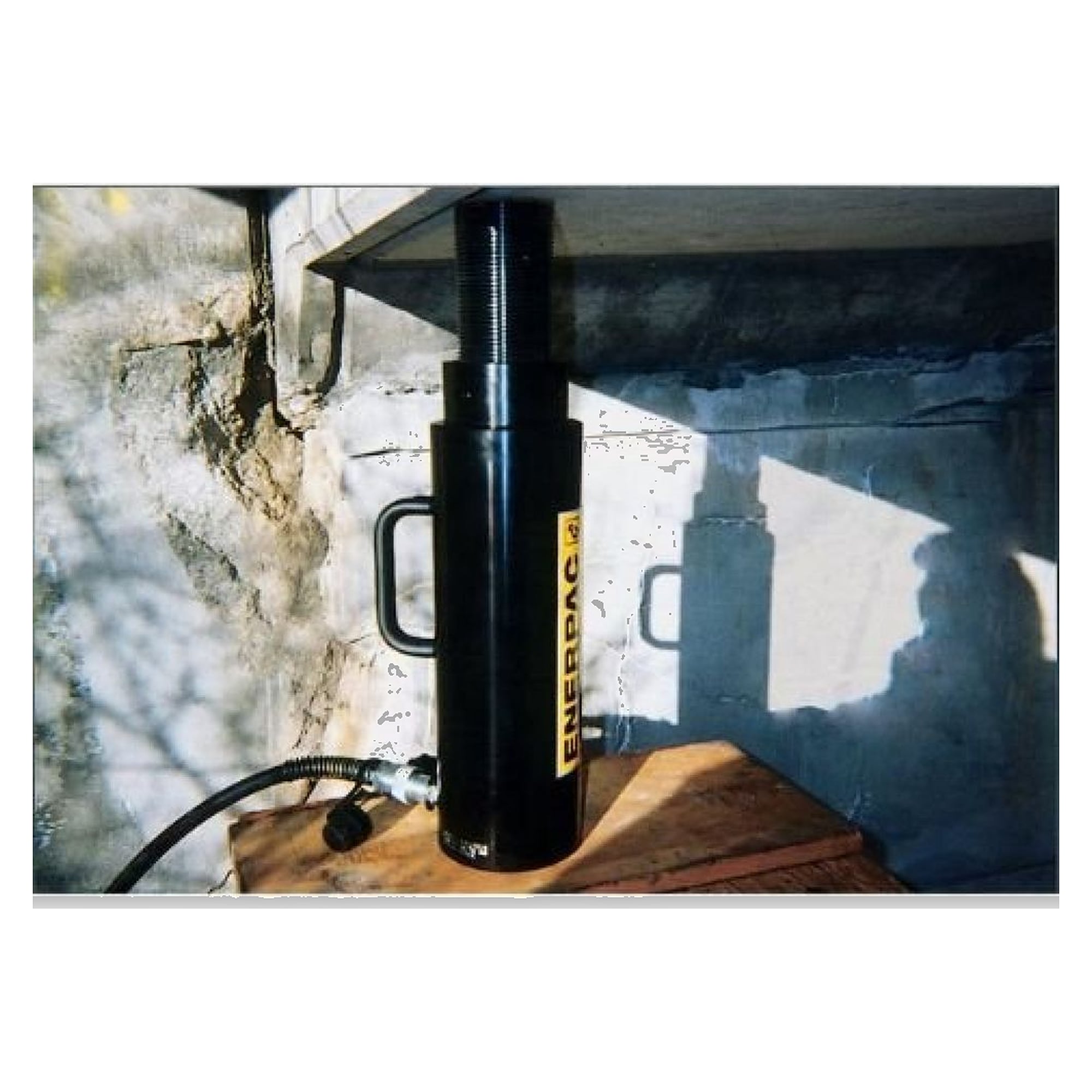

The RACL1004 lifts and supports loads with 1002 kN over a 100 mm stroke and then secures the position mechanically. The aluminum lock nut holds the load for extended periods, independent of hydraulic pressure.

Benefits

  • Aluminum lock nut for mechanical load holding over long periods
  • Composite bearings prevent metal-to-metal contact and improve side-load capacity
  • Integral stop ring limits plunger travel and withstands the full cylinder capacity
  • Hard-anodized aluminum body at about half the weight of steel
  • High-strength return spring, steel base plate and carrying handle as standard, CR400 coupler with dust cap

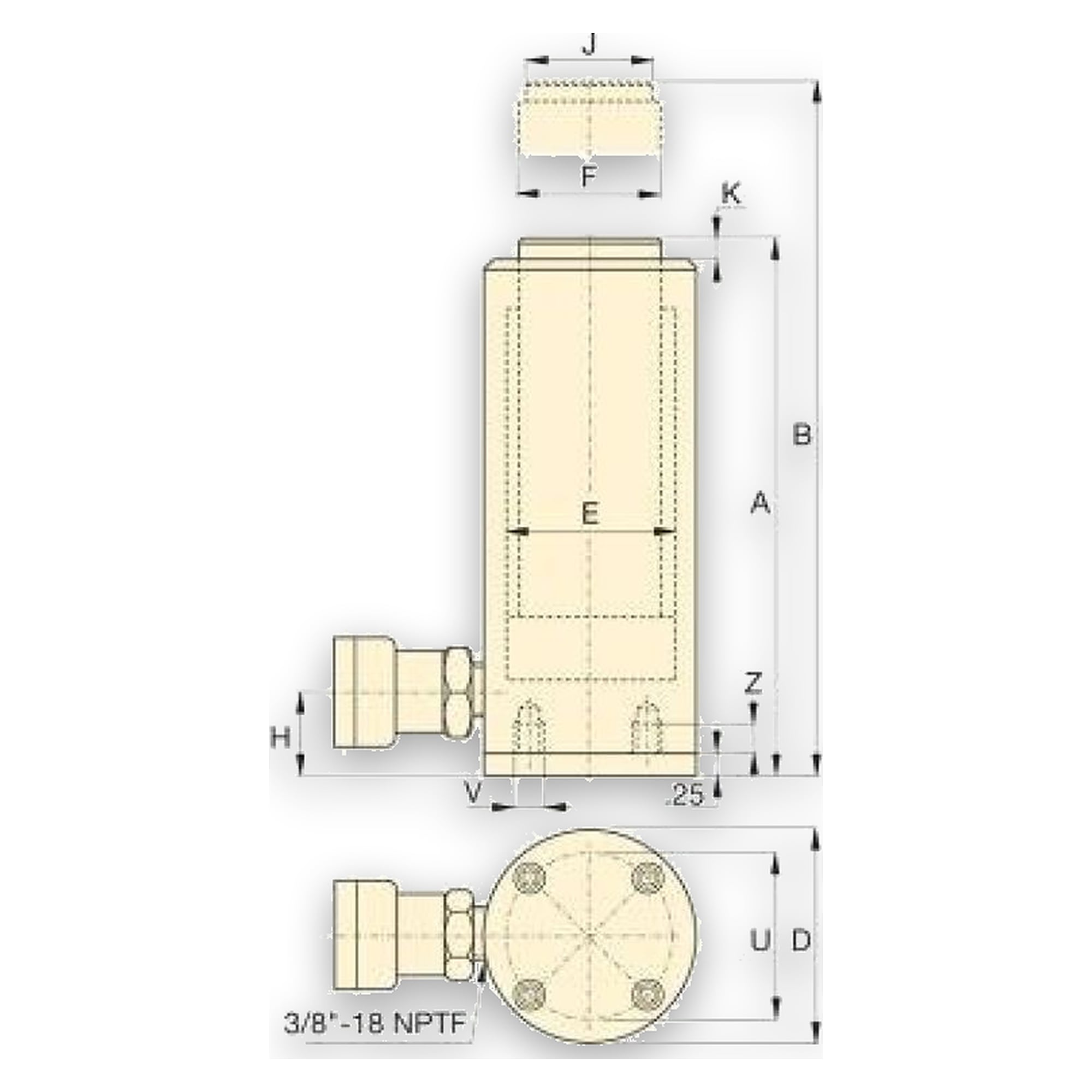

Technical data

  • Capacity: 1002 kN
  • Stroke: 100 mm
  • Operating pressure: 700 bar
  • Type: single-acting, spring return
  • Outside diameter: 180 mm
  • Plunger thread (lock nut): Tr 110 x 6
  • Lock nut height: 75 mm
  • Base mounting thread: M10
  • Weight: 24.2 kg
  • Series: RACL

Standards

  • Compliant with ASME B30.1
More Information
Hersteller-Nr RACL1004
Manufacturer Enerpac
Country of Manufacture United States
Weight 24.200000
Hinweis Industriewerkzeuge
GPSR Herstellerdaten Enerpac GmbH, Willstätterstraße 13, DE-40549 Düsseldorf, www.enerpac.com
Artikel-Authentizität Original product
Artikelzustand New
Series RACL
Kapazität, kN 1000-2000 kN
Position sensing No
