High Tonnage Hydraulic Cylinder, 1002 kN, 100 mm Stroke - Enerpac HCG1004

The HCG1004 high tonnage cylinder delivers 1002 kN over a 100 mm stroke and handles heavy lifting and pressing tasks in industrial and structural steel work. Its hardened surface absorbs up to 10% side load across the full stroke, keeping it tolerant of unavoidable lateral forces.

Benefits

• Hardened surface resists side-loading and cyclic wear
• Up to 10% side-load resistance over the full stroke
• Stop-ring prevents plunger blow-out
• Weather protected inside and out for outdoor use
• Upper and lower replaceable bearings support the plunger throughout the stroke
• Certified lifting eyes, base mounting holes and collar threads

Technical data

• Type: High tonnage hydraulic cylinder
• Capacity: 1002 kN
• Stroke: 100 mm
• Working pressure: 700 bar
• Series: HCG
• Weight: 40 kg

Applications

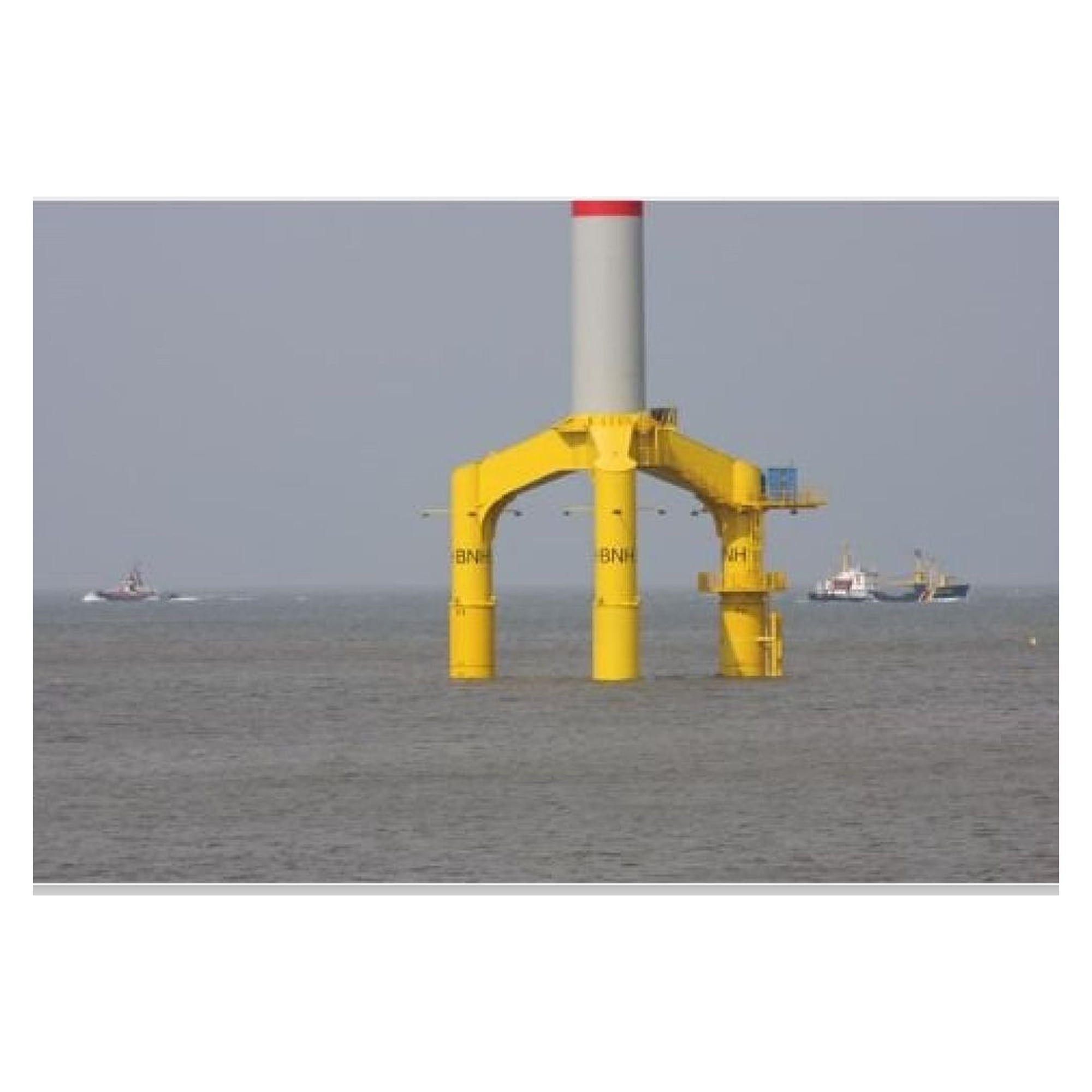

For heavy lifting, pressing and positioning tasks in plant, bridge and structural steel work where high forces must be applied safely in a confined space.
