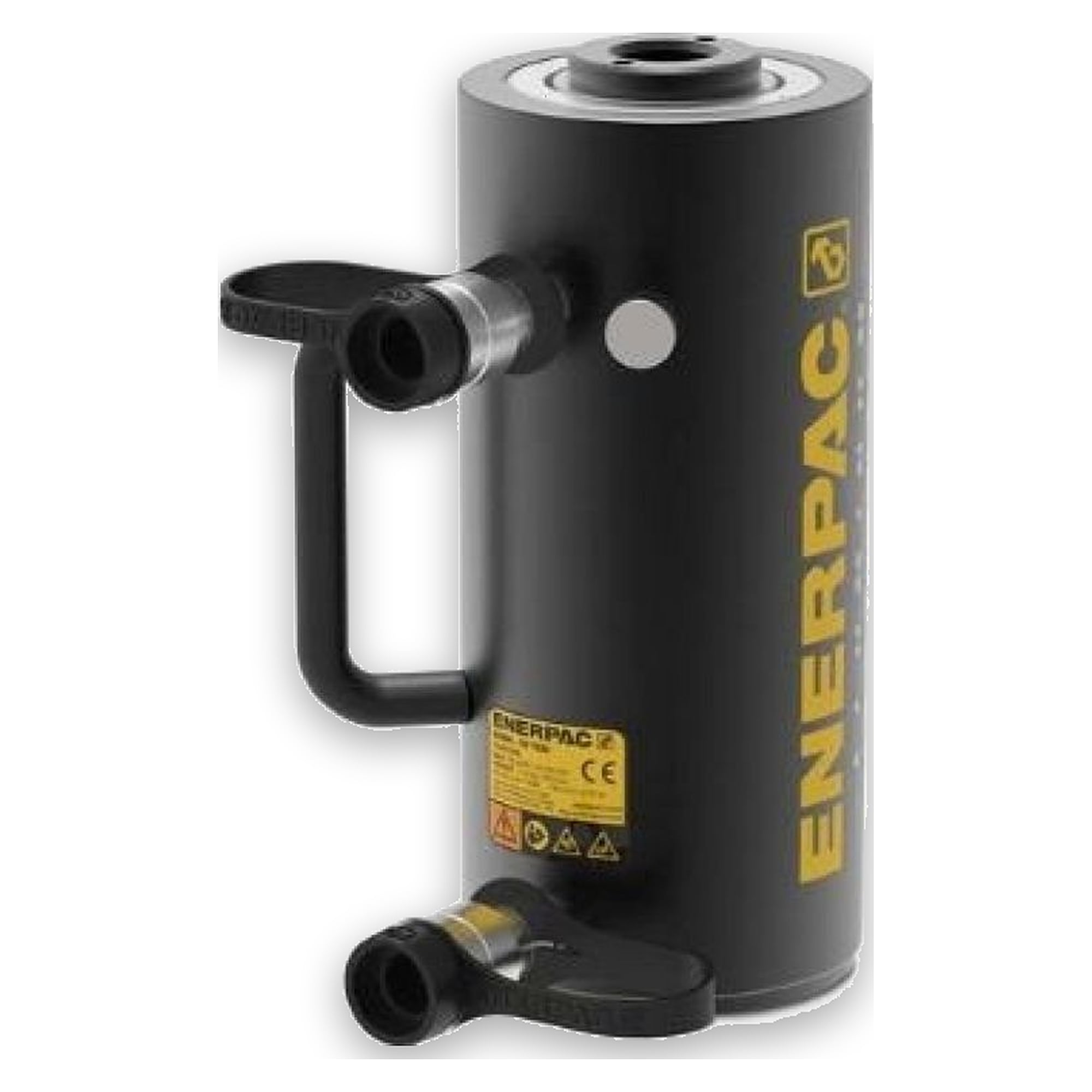

Aluminum Hollow Plunger Hydraulic Cylinder, 359 kN, 150 mm Stroke - Enerpac RARH306

The RARH306 is a double-acting hollow plunger cylinder with 359 kN of force and a 150 mm stroke, whose through-hole supports both push and pull tasks such as tensioning and drawing.

Benefits

• Hollow plunger design for both push and pull work such as tensioning or drawing components
• Double-acting for fast plunger retraction, built-in safety valve prevents accidental over-pressure
• Lighter and with a shorter collapsed height than comparable RACH models at 359 kN
• Composite bearings and hardened coating raise side-load resistance and extend service life
• Floating centre tube increases seal life, handles and CR400 coupler fitted as standard

Technical data

• Capacity: 359 kN
• Stroke: 150 mm
• Action: double-acting, hollow plunger
• Operating pressure: 700 bar
• Collapsed height: 309 mm
• Extended height: 459 mm
• Outside diameter: 135 mm
• Bore diameter: 95 mm
• Weight: 11.9 kg
• Series: RARH
• Standard: ASME B30.1
