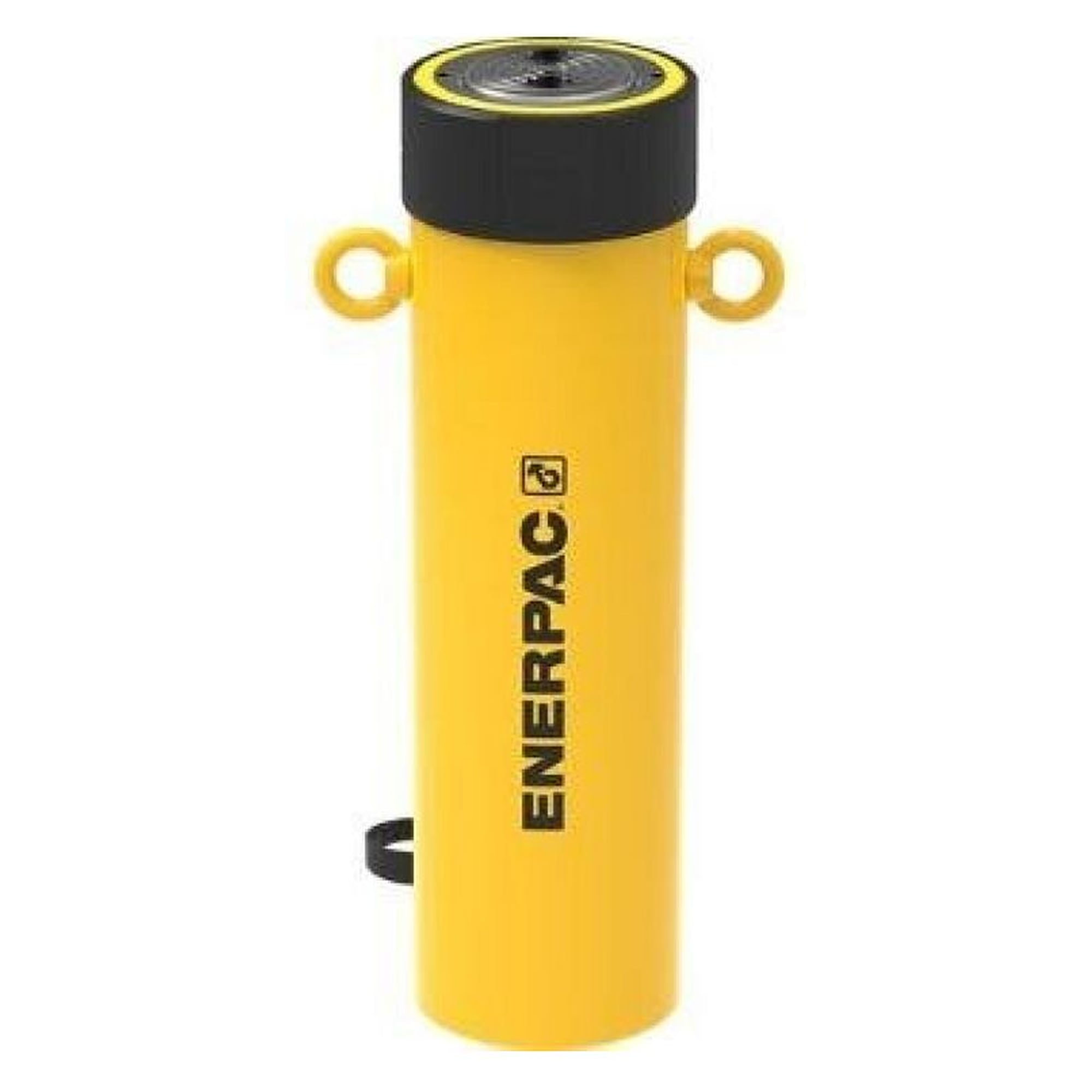

General Purpose Hydraulic Cylinder, 498 kN, 337 mm Stroke - Enerpac RC5013

The RC5013 lifts and presses heavy loads with 498 kN of force over a 337 mm stroke. As a single-acting RC-TRIO series cylinder it retracts on its own through the pre-tensioned return spring and runs on the standard Enerpac pressure of 700 bar.

Benefits

• Trio bearing system with up to four wear bands for greater sideload resistance and longer service life
• Hybrid spring-return system for faster retraction and higher productivity
• Nickel-plated high-strength steel plunger for improved corrosion protection
• Hardened, removable saddle protects the plunger end
• Unchanged model numbers, dimensions and threads keep compatibility with earlier RC cylinders

Technical data

• Capacity: 498 kN
• Stroke: 337 mm
• Type: single-acting, spring return
• Operating pressure: 700 bar
• Weight: 37.6 kg
• Series: RC (RC-TRIO)

Applications

For general lifting, pressing and clamping in industry, maintenance and assembly. Mounting threads and bearing surfaces make it easy to integrate into fixtures.
