Aluminum Hydraulic Cylinder, 218 kN, 150 mm Stroke - Enerpac RAR206

The RAR206 delivers 218 kN of force over a 150 mm stroke and retracts quickly and under control thanks to its double-acting design, regardless of hose length and system losses.

Benefits

• Double-acting design for rapid, controlled retraction regardless of hose length and system losses
• Aluminum build at around half the weight of steel at 218 kN, less corrosive and easier to handle
• Wear bands and hard coat finish improve side-load tolerance and extend service life
• Integral stop ring withstands the full cylinder capacity, built-in safety valve guards against over-pressure
• Handles as standard, bolt-on hardened saddle and steel base plate protect against load damage

Technical data

• Capacity: 218 kN
• Stroke: 150 mm
• Action: double-acting
• Operating pressure: 700 bar

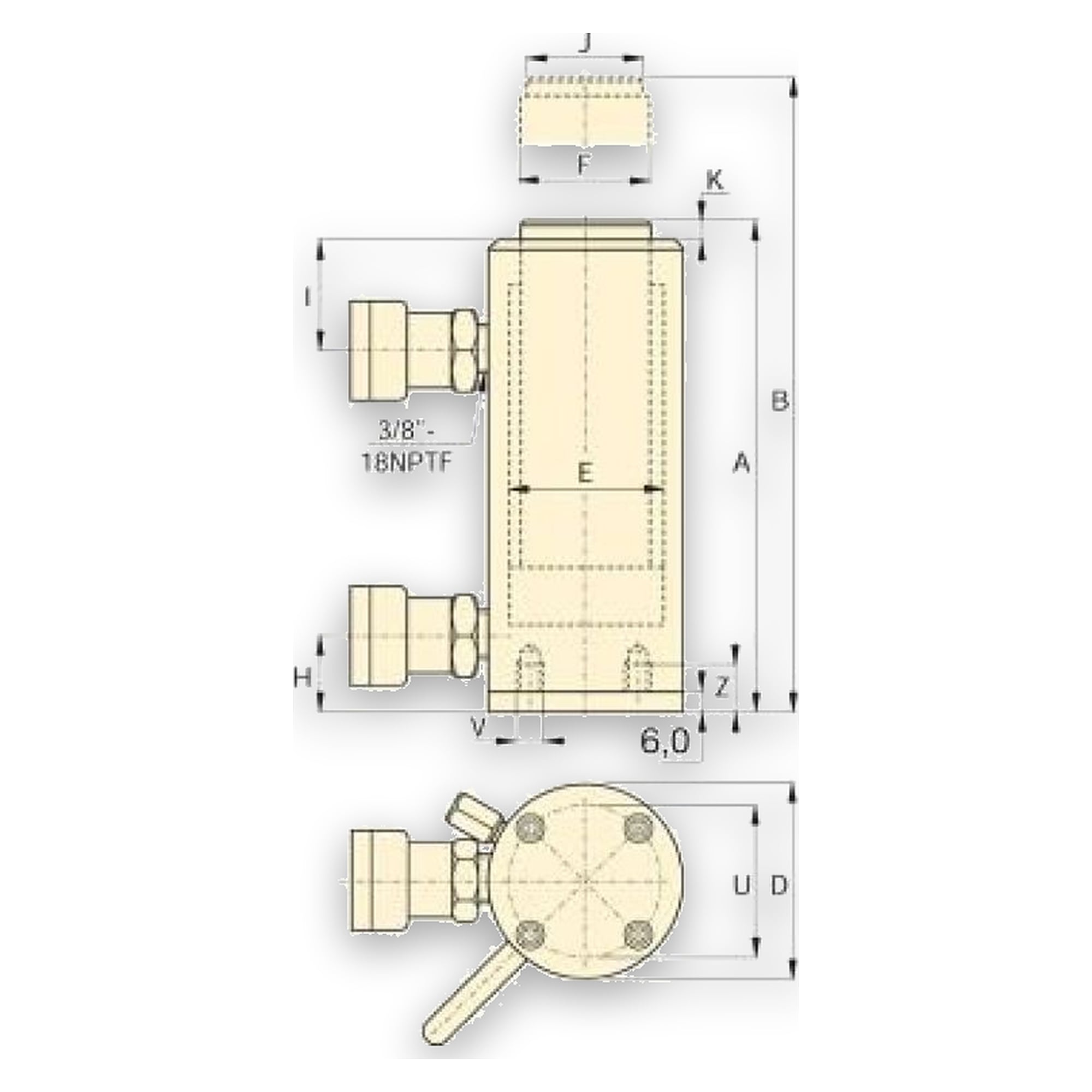

• Collapsed height: 289 mm
• Extended height: 439 mm
• Outside diameter: 113 mm
• Bore diameter: 63 mm
• Weight: 8.6 kg
• Series: RAR
• Standard: ASME B30.1
