Single-acting aluminum hollow plunger cylinder with 358 kN capacity and 150 mm stroke. The through-hole plunger handles both pull and push forces, and the return spring gives rapid retraction.
Aluminum Hollow Plunger Hydraulic Cylinder, 358 kN, 150 mm Stroke - Enerpac RACH306
ENERPAC Original product
Net price (excl. VAT)
€3,713.48 €3,120.57
Item ENP-RACH306
Manufacturer no. RACH306
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.RACH306
Country of originUnited States
ConditionNew
Artikel
ENP-RACH306
Frequently Bought Together
- This Item: €3,713.48 €3,120.57
- High Tonnage Hydraulic Cylinder, 5114 kN, 200 mm Stroke - Enerpac HCR5008 €0.00 €0.00
- Collet-Lok Swing Cylinder double-acting 4.4 kN - Enerpac MPFR50V €2,823.30 €2,372.52

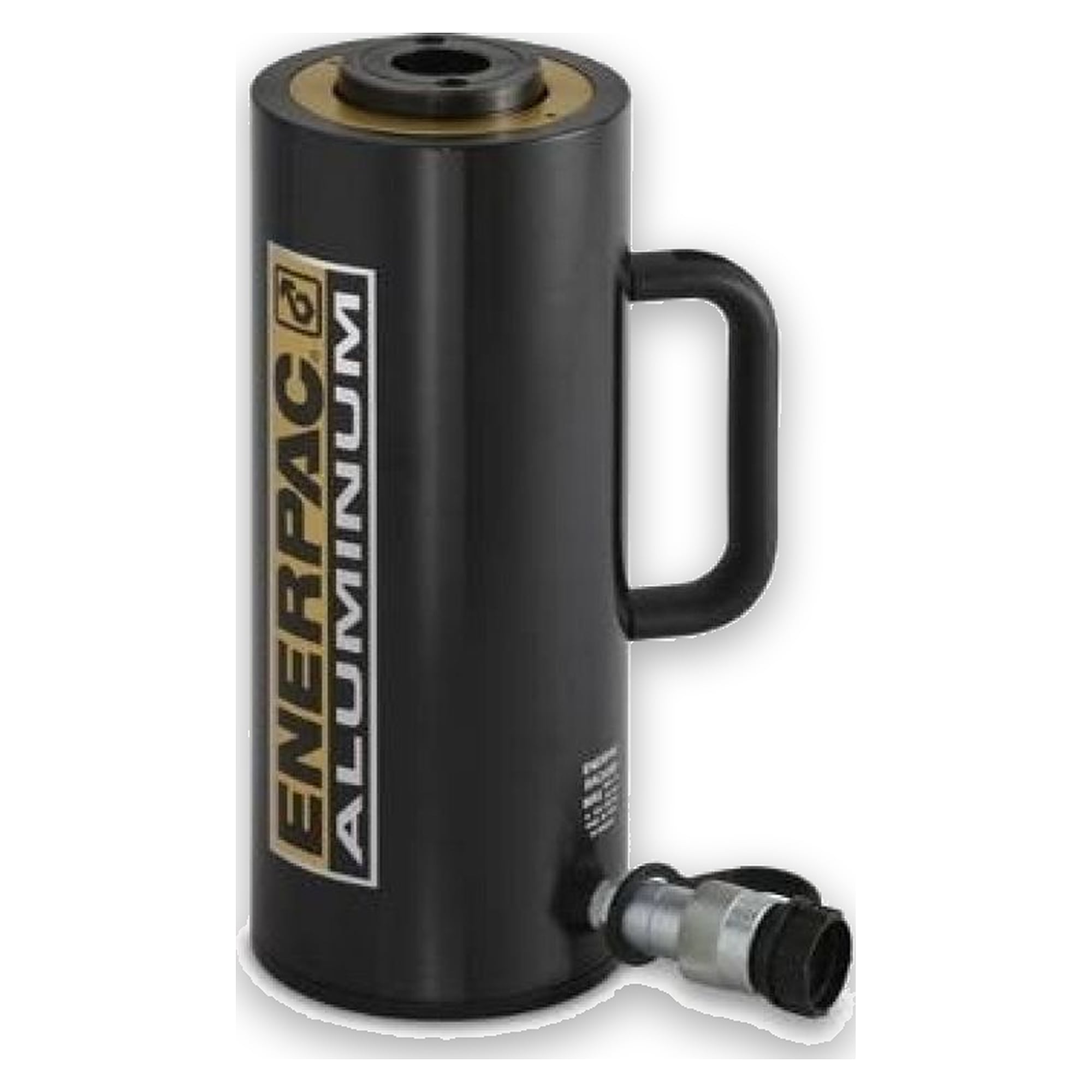

The RACH306 is a single-acting aluminum hollow plunger cylinder rated at 358 kN with a 150 mm stroke. The through-hole plunger carries both pull and push forces, so components can be pulled as well as pushed.
Benefits
- Hollow plunger with internal thread for pull and push forces, ideal for tensioning, pulling and testing
- Composite bearings improve side-load resistance and extend service life
- Anodized hard coat protects the aluminum body against wear and corrosion
- Floating center tube extends seal life
- Integral stop ring prevents plunger over-travel at full capacity
- High-strength return spring for rapid plunger retraction
- Aluminum construction cuts the weight to 11.2 kg for easier transport and positioning
Technical data
- Capacity: 358 kN
- Stroke: 150 mm
- Action: single-acting, spring return
- Operating pressure: 700 bar
- Type: hollow plunger cylinder
- Material: anodized aluminum
- Weight: 11.2 kg
- Series: RACH
Applications

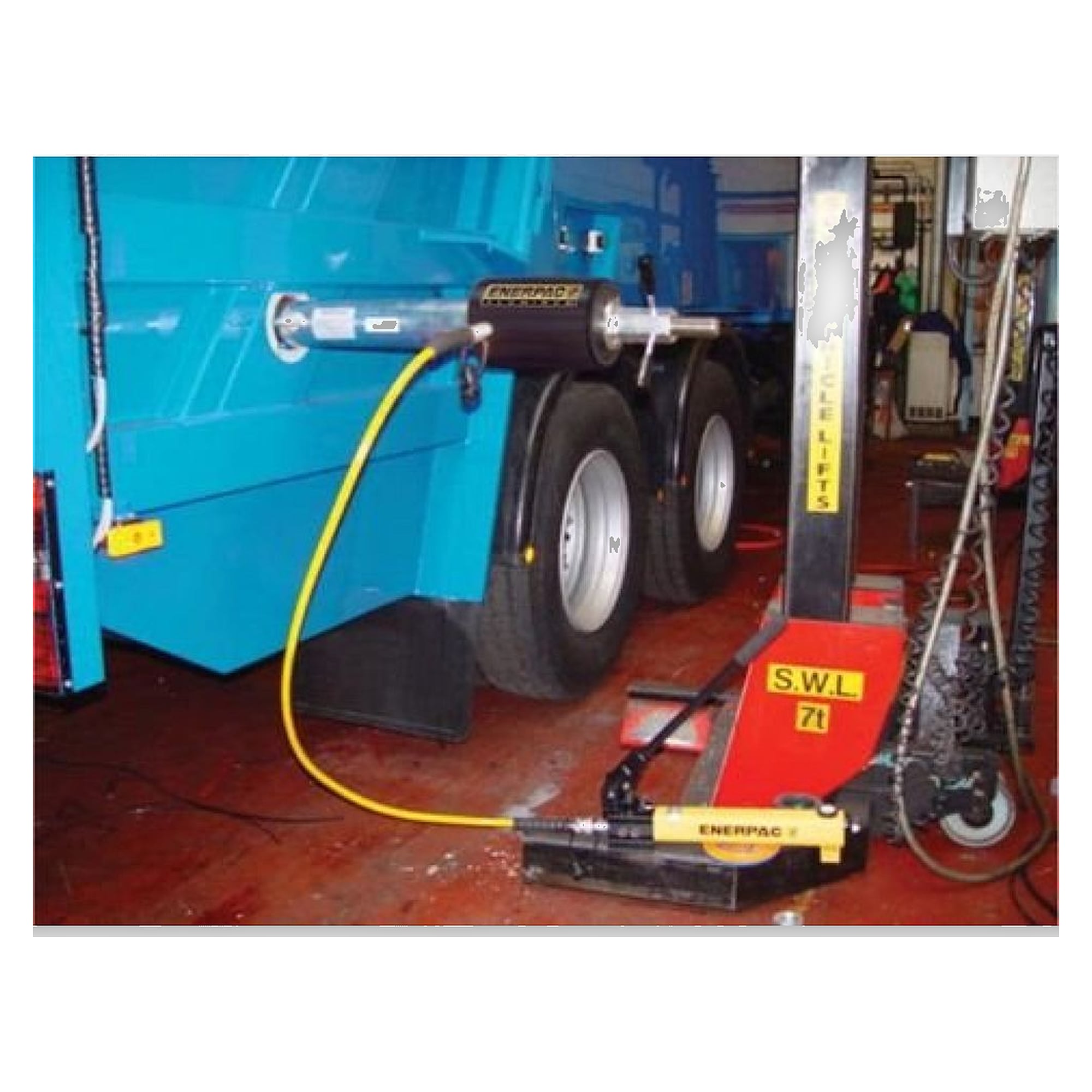

Suited to tensioning, pulling, testing and lifting. The internal thread on the hollow plunger allows the component to be pulled to be fixed directly to the cylinder.
In the box
- Steel base plate and bolt-on hardened steel saddle
- Carrying handle
- CR400 coupler with dust cap
Standards
- ASME B30.1
| Hersteller-Nr | RACH306 |
|---|---|
| Manufacturer | Enerpac |
| Country of Manufacture | United States |
| Weight | 11.200000 |
| Hinweis | Industriewerkzeuge |
| GPSR Herstellerdaten | Enerpac GmbH, Willstätterstraße 13, DE-40549 Düsseldorf, www.enerpac.com |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Series | RACH |
| Kapazität, kN | 250-500 kN |
| Position sensing | No |
