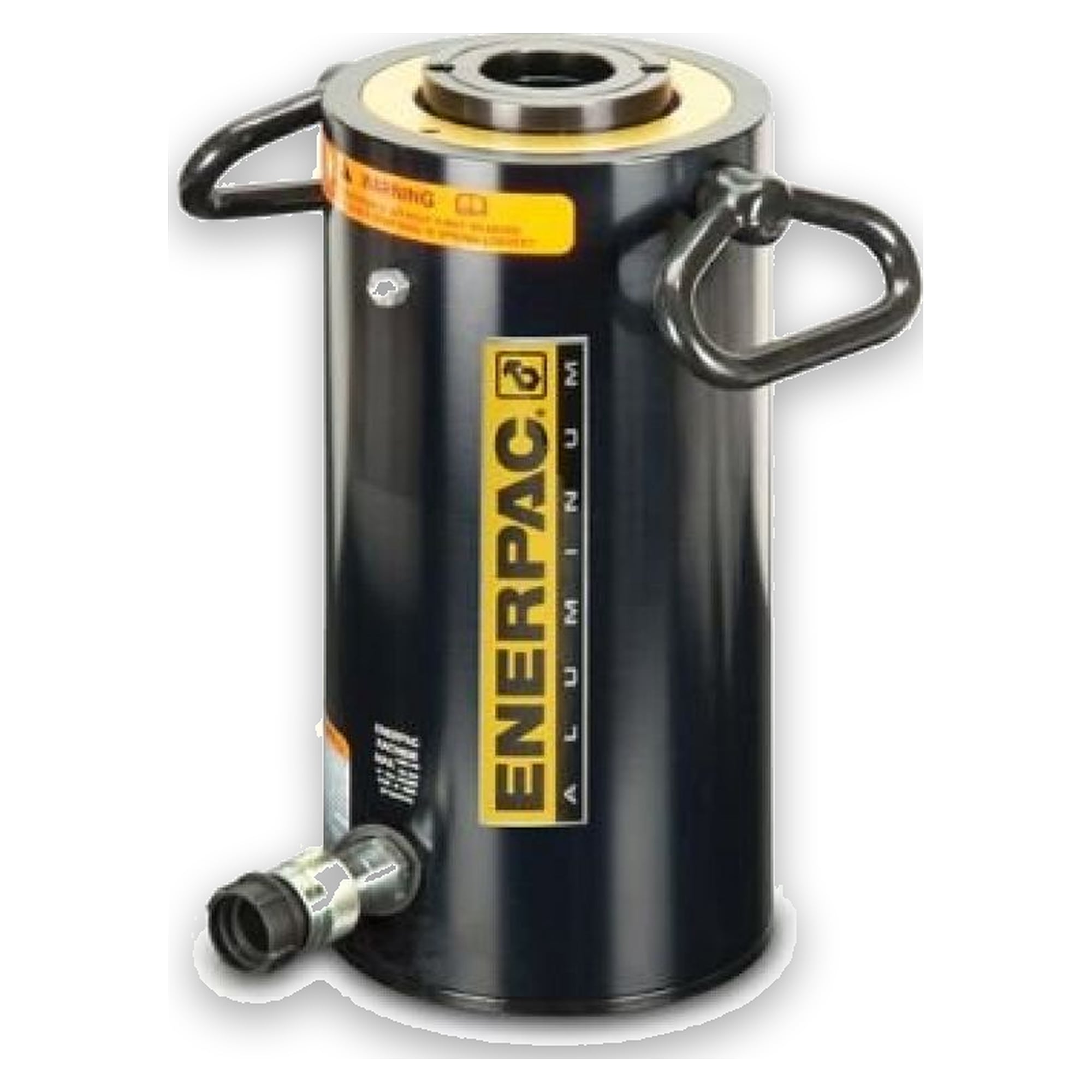

Aluminum Hollow Plunger Hydraulic Cylinder, 229 kN, 100 mm Stroke - Enerpac RACH204

The RACH204 hollow plunger cylinder pulls and pushes loads with 229 kN over a 100 mm stroke. Its through-hole plunger accepts tie rods or spindles, which suits tensioning, pulling, testing and lifting.

Benefits

• Hollow plunger handles both pull and push forces, ideal for tensioning and pulling
• Bearing bands improve side-load capacity and extend service life
• Floating center tube increases seal life
• Integral stop ring limits plunger travel and withstands the full cylinder capacity
• Hard-anodized aluminum body, light and corrosion-resistant, with return spring and carrying handle

Technical data

• Capacity: 229 kN
• Stroke: 100 mm
• Operating pressure: 700 bar
• Type: single-acting, spring return
• Outside diameter: 100 mm
• Plunger diameter: 55 mm
• Center hole diameter: 27 mm
• Base mounting thread: M6
• Weight: 6.1 kg
• Series: RACH

Applications

Suited to bolt tensioning, testing and pulling tasks, and to lifting where the load is anchored to the hollow plunger.

Standards

• Compliant with ASME B30.1
