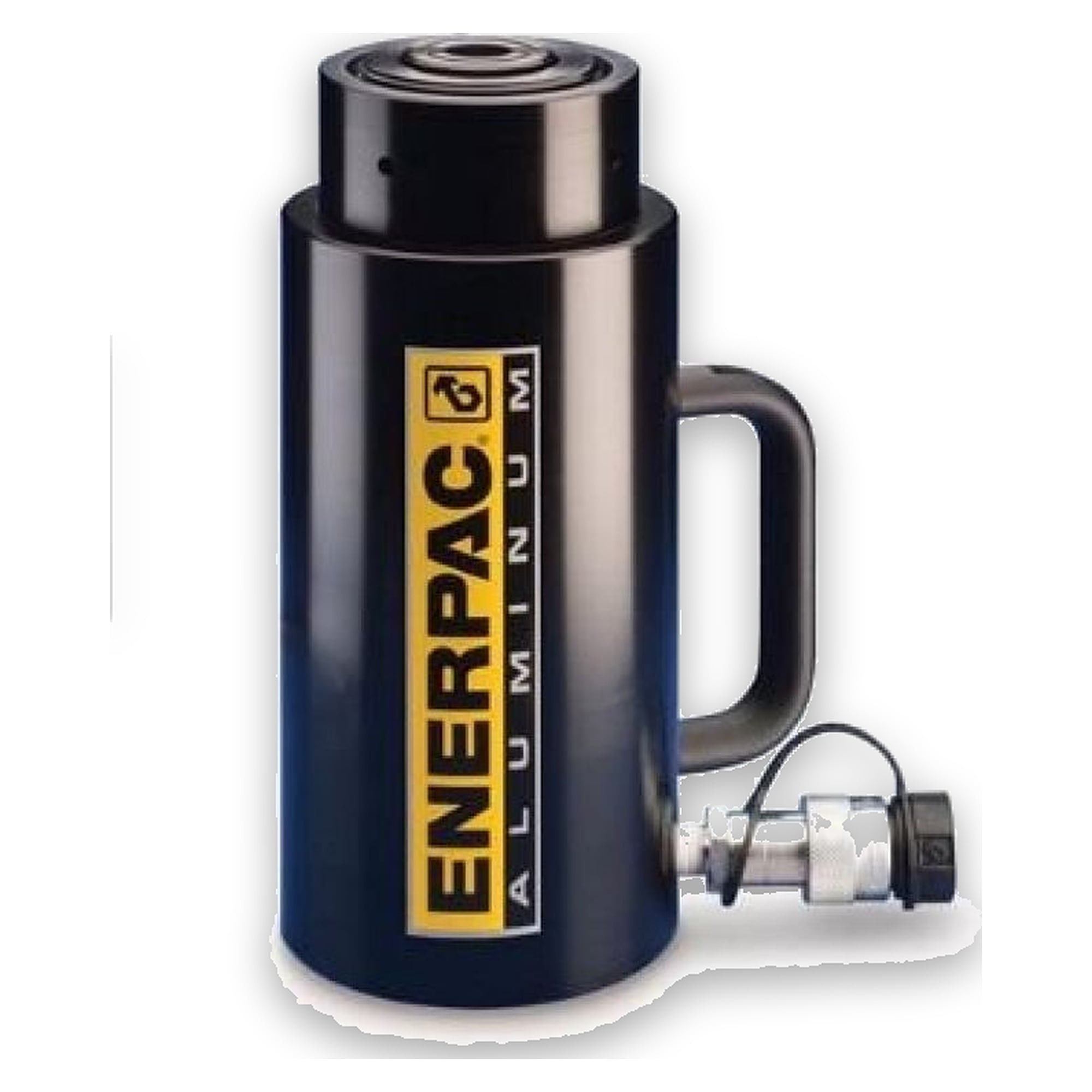

Aluminum Lock Nut Hydraulic Cylinder, 218 kN, 150 mm Stroke - Enerpac RACL206

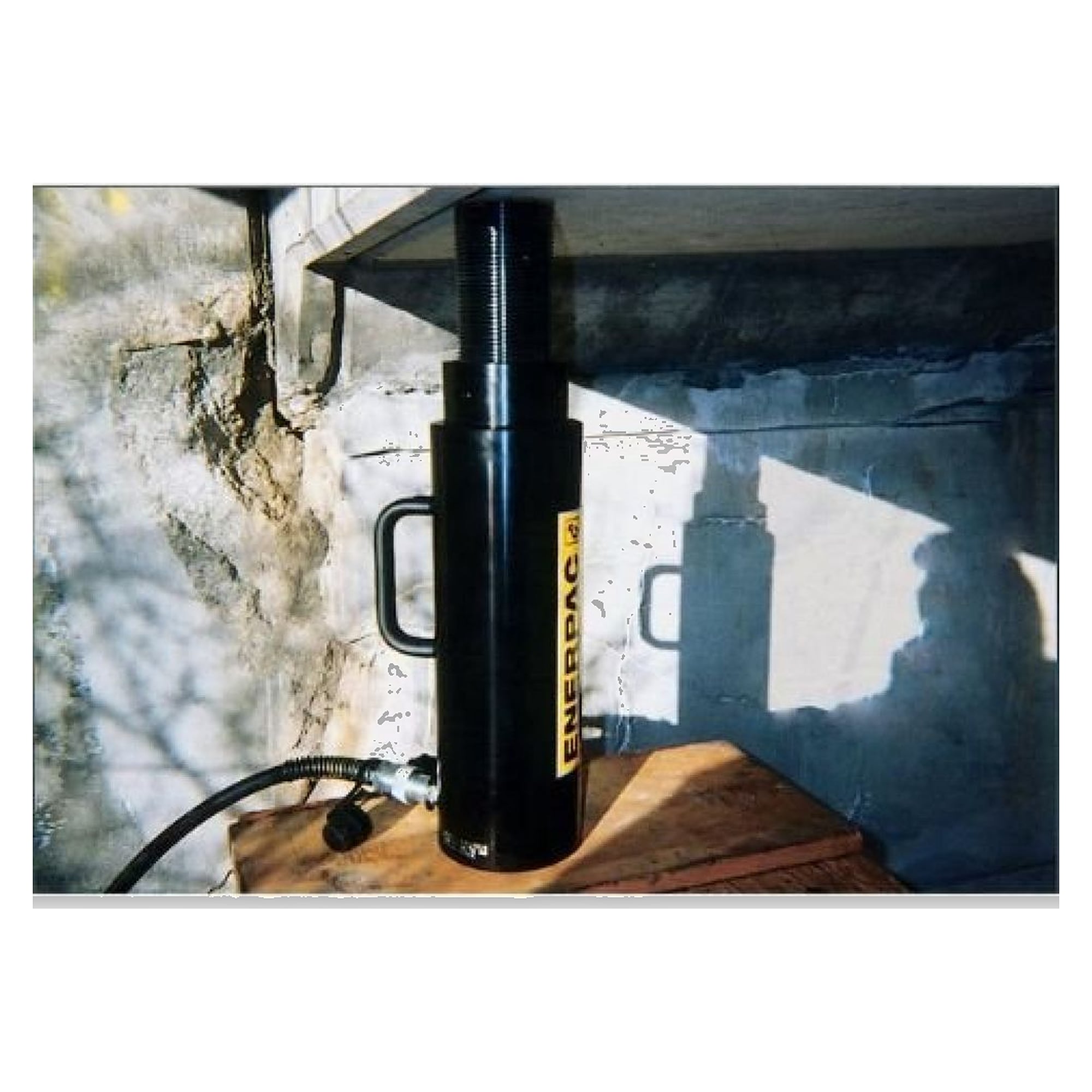

The RACL206 lifts and supports loads with 218 kN over a 150 mm stroke and then secures the position mechanically. The aluminum lock nut holds the load for extended periods, independent of hydraulic pressure.

Benefits

• Aluminum lock nut for mechanical load holding over long periods
• Composite bearings prevent metal-to-metal contact and improve side-load capacity
• Integral stop ring limits plunger travel and withstands the full cylinder capacity
• Hard-anodized aluminum body at about half the weight of steel
• High-strength return spring, steel base plate and carrying handle as standard, CR400 coupler with dust cap

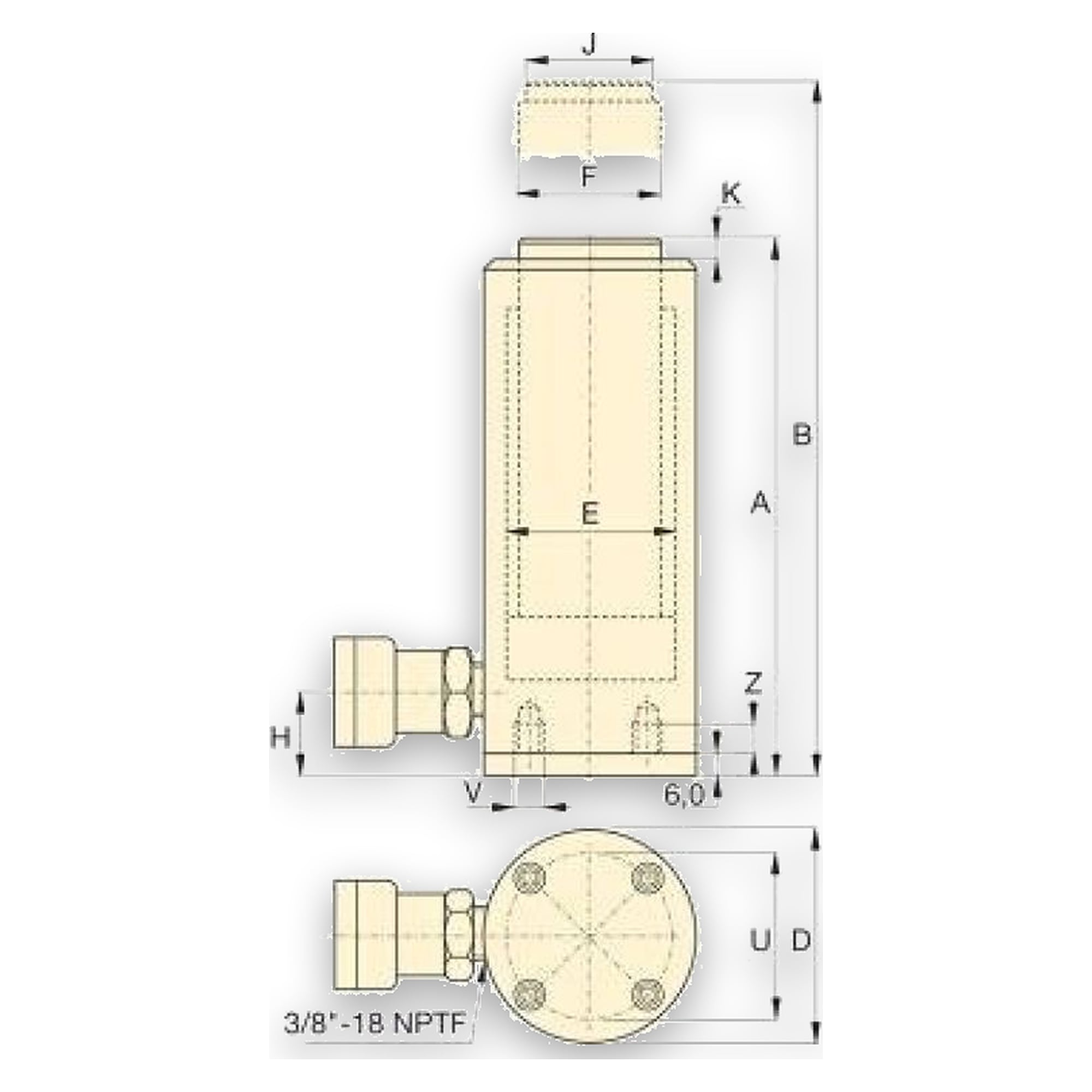

Technical data

• Capacity: 218 kN
• Stroke: 150 mm
• Operating pressure: 700 bar
• Type: single-acting, spring return
• Outside diameter: 85 mm
• Plunger thread (lock nut): Tr 55 x 4
• Lock nut height: 50 mm
• Base mounting thread: M6
• Weight: 5.2 kg
• Series: RACL

Standards

• Compliant with ASME B30.1
