Single-acting aluminum hollow plunger cylinder rated 229 kN with 50 mm stroke. The through-hole plunger transfers pull and push forces for tensioning, pulling and lifting, at just 5.2 kg.

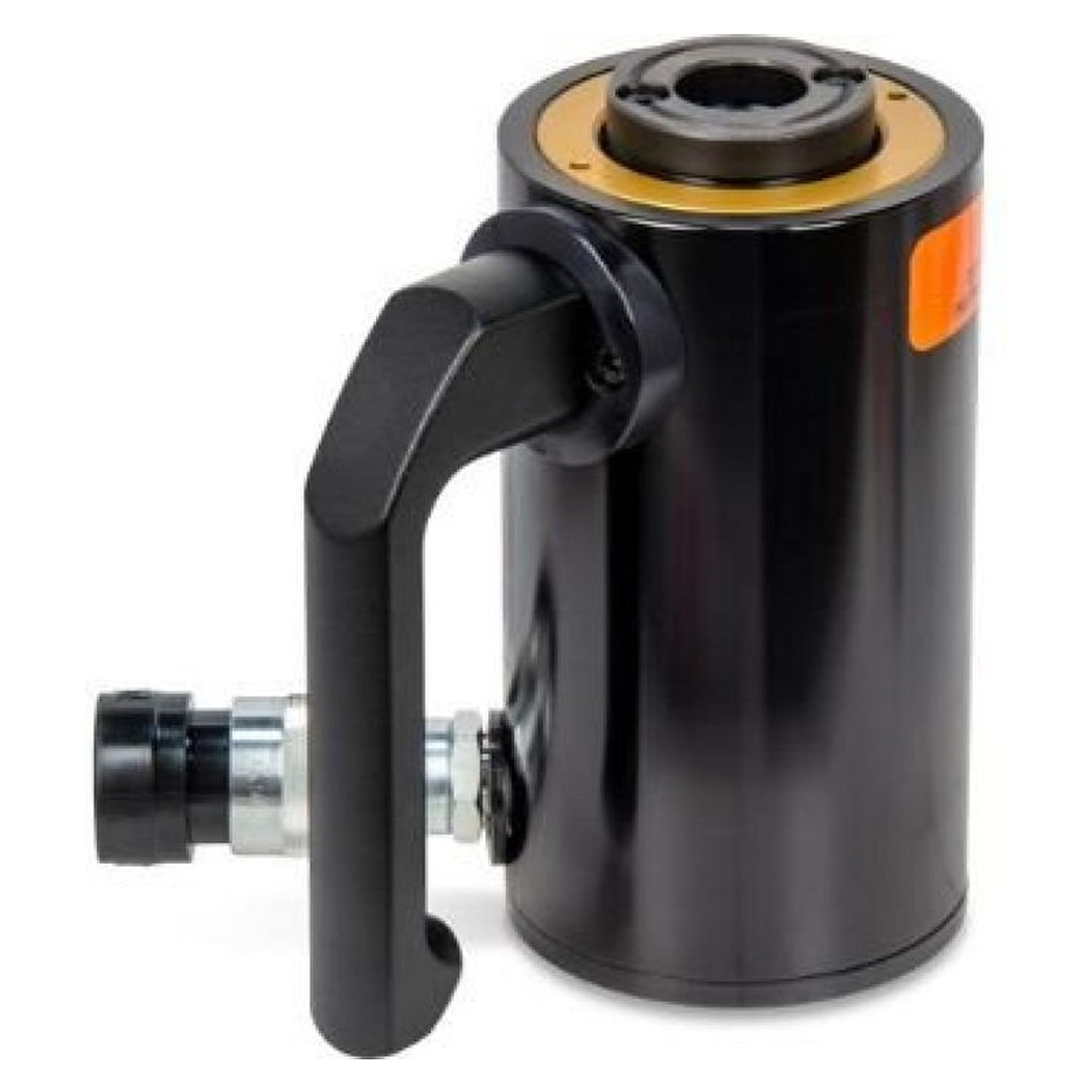

Aluminum Hollow Plunger Hydraulic Cylinder, 229 kN, 50 mm Stroke - Enerpac RACH202
ENERPAC Original product
Net price (excl. VAT)
€2,275.84 €1,912.47
Item ENP-RACH202
Manufacturer no. RACH202
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.RACH202
Country of originUnited States
ConditionNew
Artikel
ENP-RACH202
Frequently Bought Together
- This Item: €2,275.84 €1,912.47
- High Tonnage Hydraulic Cylinder, 1985 kN, 100 mm Stroke - Enerpac HCG2004 €0.00 €0.00
- General Purpose Hydraulic Cylinder, 45 kN, 127 mm Stroke - Enerpac RC55 €594.39 €499.49
The RACH202 hollow plunger cylinder pulls and pushes loads with 229 kN over a 50 mm stroke. Its through-hole plunger accepts tie rods or spindles, which suits tensioning, pulling, testing and lifting.
Benefits
- Hollow plunger handles both pull and push forces, ideal for tensioning and pulling
- Bearing bands improve side-load capacity and extend service life
- Floating center tube increases seal life
- Integral stop ring limits plunger travel and withstands the full cylinder capacity
- Hard-anodized aluminum body, light and corrosion-resistant, with return spring and carrying handle
Technical data
- Capacity: 229 kN
- Stroke: 50 mm
- Operating pressure: 700 bar
- Type: single-acting, spring return
- Outside diameter: 100 mm
- Plunger diameter: 55 mm
- Center hole diameter: 27 mm
- Base mounting thread: M6
- Weight: 5.2 kg
- Series: RACH
Applications
Suited to bolt tensioning, testing and pulling tasks, and to lifting where the load is anchored to the hollow plunger.
Standards
- Compliant with ASME B30.1
| Hersteller-Nr | RACH202 |
|---|---|
| Manufacturer | Enerpac |
| Country of Manufacture | United States |
| Weight | 5.200000 |
| Hinweis | Industriewerkzeuge |
| GPSR Herstellerdaten | Enerpac GmbH, Willstätterstraße 13, DE-40549 Düsseldorf, www.enerpac.com |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Series | RACH |
| Kapazität, kN | 100-250 kN |
| Position sensing | No |
