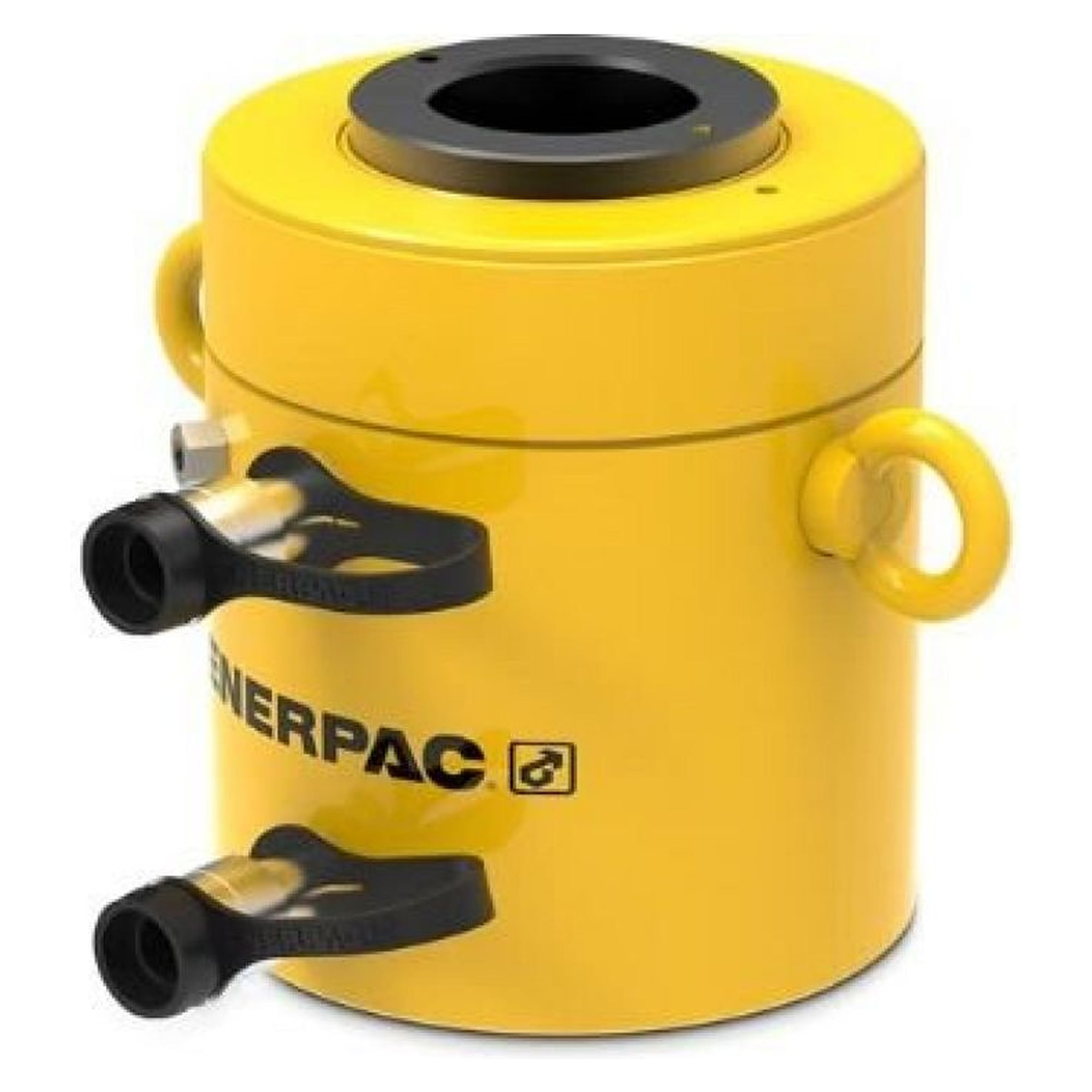

Hollow Plunger Cylinder, 931 kN, 76 mm Stroke - Enerpac RRH1003

The RRH1003 transmits 931 kN of push and pull force over a 76 mm stroke. Its through-hole hollow plunger allows pulling work with threaded rods, while the double-acting design retracts the plunger quickly.

Benefits

• Hollow plunger design for combined push and pull work
• Double-acting operation for fast plunger retraction
• Safety valve guards against damage from over-pressure
• Baked enamel finish for increased corrosion resistance
• CR400 couplers with dust caps fitted as standard
• Plunger wiper keeps out contamination and extends cylinder life

Technical data

• Push and pull force: 931 kN
• Stroke: 76 mm
• Type: double-acting, hollow plunger
• Operating pressure: 700 bar
• Collapsed height: 254 mm
• Extended height: 330 mm
• Outer diameter: 212 mm
• Saddle diameter: 126 mm
• Weight: 61 kg
• Series: RRH

Applications

The hollow plunger cylinder suits tensioning, pulling and testing tasks such as pre-tensioning threaded rods or drawing components. The open bore lets tension members pass through under load.

Standards

• Compliant with ASME B30.1
