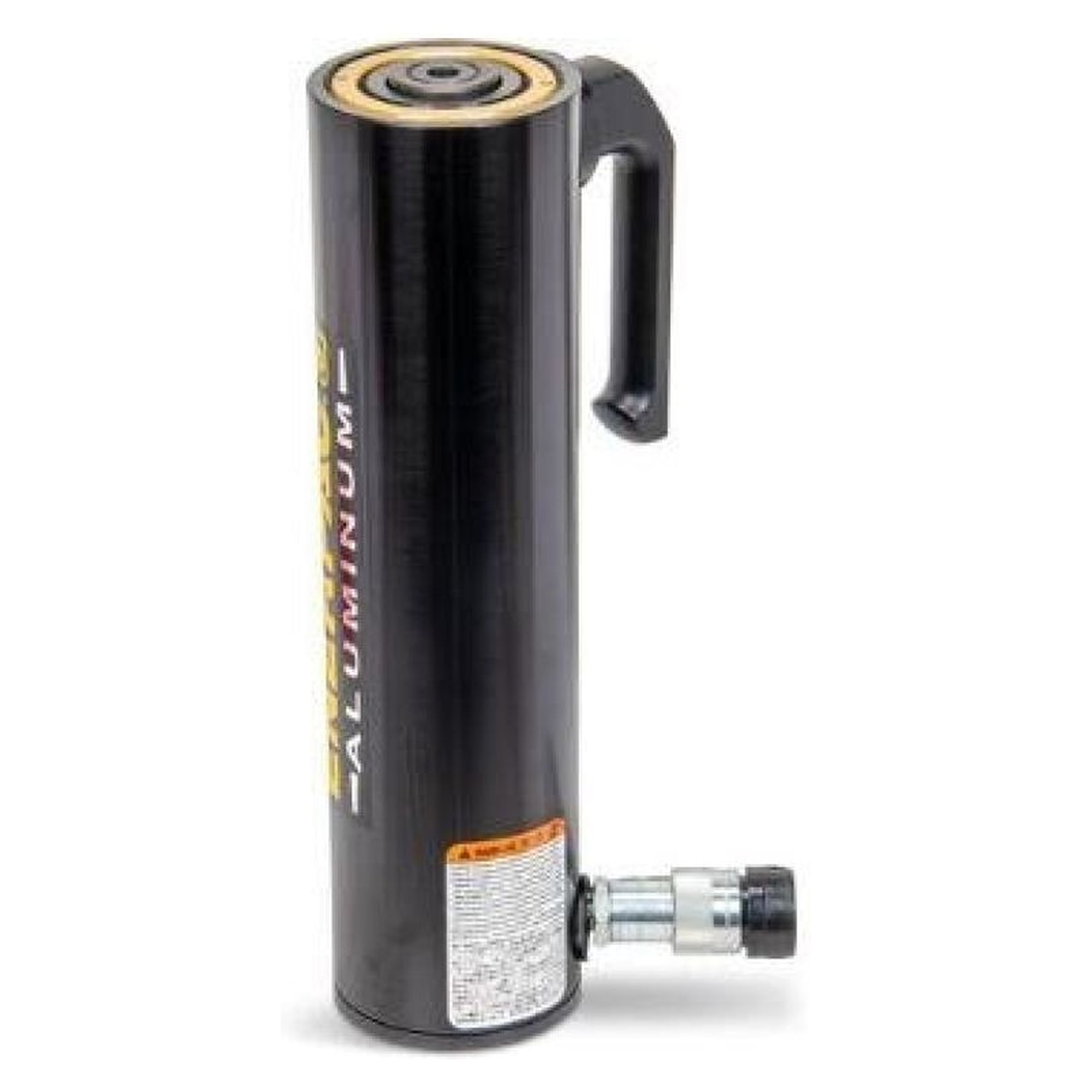

Aluminum Hydraulic Cylinder, 309 kN, 250 mm Stroke - Enerpac RAC3010

The RAC3010 delivers 309 kN of force over a 250 mm stroke while weighing only about half as much as an equivalent steel cylinder, which makes it easier to carry and position on mobile lifting and pushing jobs.

Benefits

• Composite bearings prevent metal-to-metal contact and take side loads up to 10 %, extending service life
• Hard anodized coating resists damage and is inherently more corrosion resistant than steel
• Carrying handles and steel baseplate included as standard for safe handling and load protection
• Integral stop ring limits plunger travel and withstands the full cylinder capacity
• High-strength return spring for rapid plunger retraction
• CR400 coupler and dust cap fitted as standard

Technical data

• Capacity: 309 kN
• Stroke: 250 mm
• Type: single-acting, spring return
• Operating pressure: 700 bar
• Material: aluminum, hard anodized
• Collapsed height: 381 mm
• Extended height: 631 mm
• Cylinder bore: 75 mm
• Weight: 7.3 kg
• Series: RAC

Applications

The low weight and corrosion-resistant finish suit changing worksites and demanding environments. Pair it with the lightweight P392 and P802 composite hand pumps for a fully portable set.

Standards

• Complies with ASME B30.1
