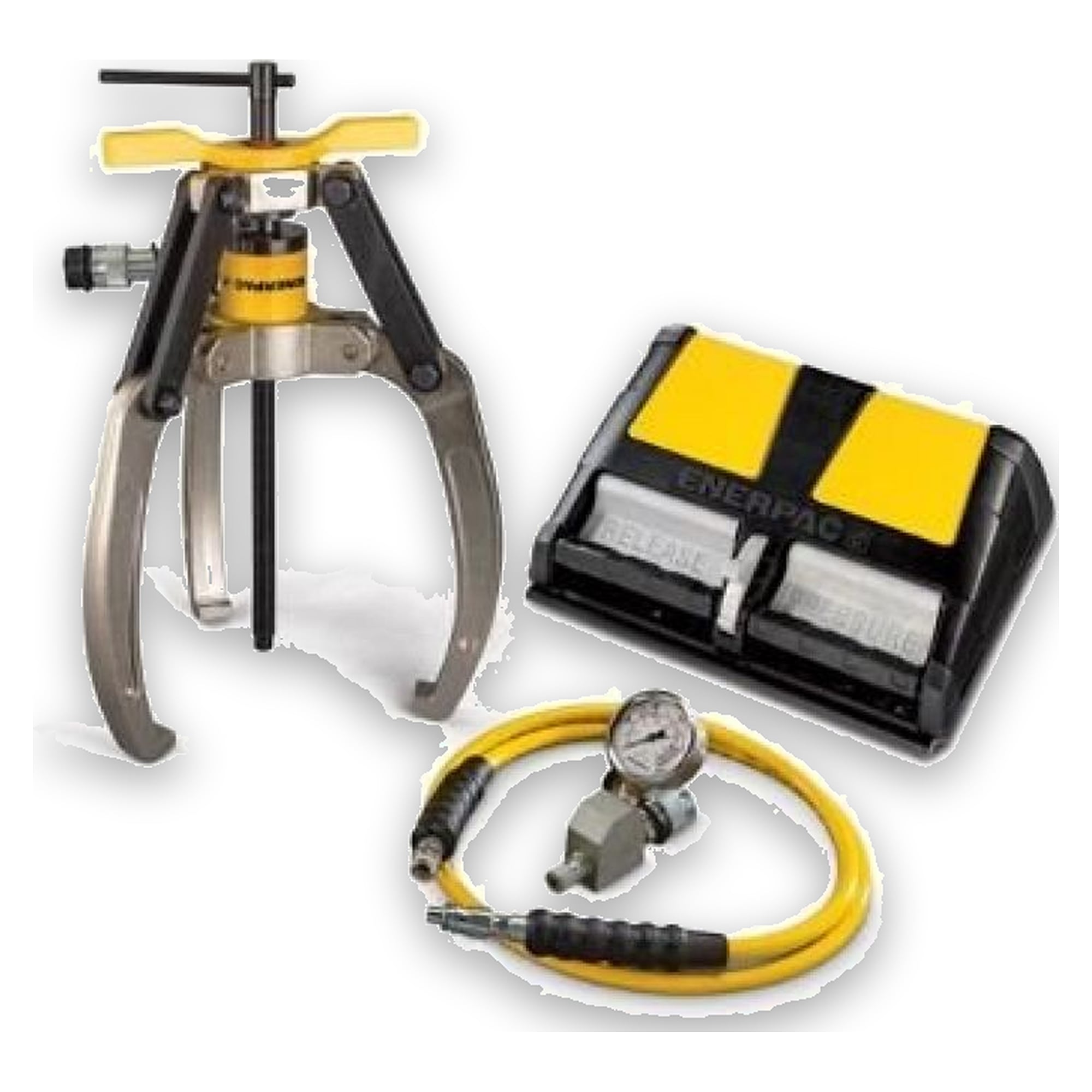

Hydraulic Lock-Grip Puller, 10 t, 3 Jaw - Enerpac LGH310

The LGH310 pulls seized parts off shafts with 10 t capacity, with the pulling force applied by a 700 bar hydraulic cylinder rather than by hand.

Benefits

• Hydraulically applied force increases pulling capacity and reduces operator fatigue
• Lock-on jaws grip securely, three-jaw design for a stable seat
• Synchronous jaw movement lets one operator complete the whole job
• The handle locks the jaws onto the part, which frees as the spindle is turned

Technical data

• Capacity: 10 t
• Configuration: 3 jaw, hydraulic
• Operating pressure: 700 bar
• Dimension A: 215 mm
• Dimension C: 192 mm
• Weight: 13 kg
• Series: LGH

Applications

For pulling seized, shaft-mounted parts. The puller MUST be used with a point protector when the shaft end has no drilled centre hole; one point protector is included. Always wear safety goggles and gloves.
