Lock-Grip Master Puller Set, 10 t, 3 Jaw, Electric Pump 230 V - Enerpac LGHMS310EE

The LGHMS310EE combines a three-jaw 700 bar hydraulic puller rated at 10 t with a full accessory set for shaft, bearing and cross-pulling jobs.

Benefits

• Hydraulically applied force increases pulling capacity and reduces fatigue
• Lock-on jaws and synchronous movement allow single-operator use
• Reconfigures for cross, bearing and bearing-cup pulling across many tasks
• Runs from the electric pump 230 V, with no separate power unit needed

Technical data

• Capacity: 10 t
• Puller: 3 jaw, hydraulic, 700 bar
• Pump: electric pump 230 V
• Pressure limit with accessories: 7 US-ton (75 kN)

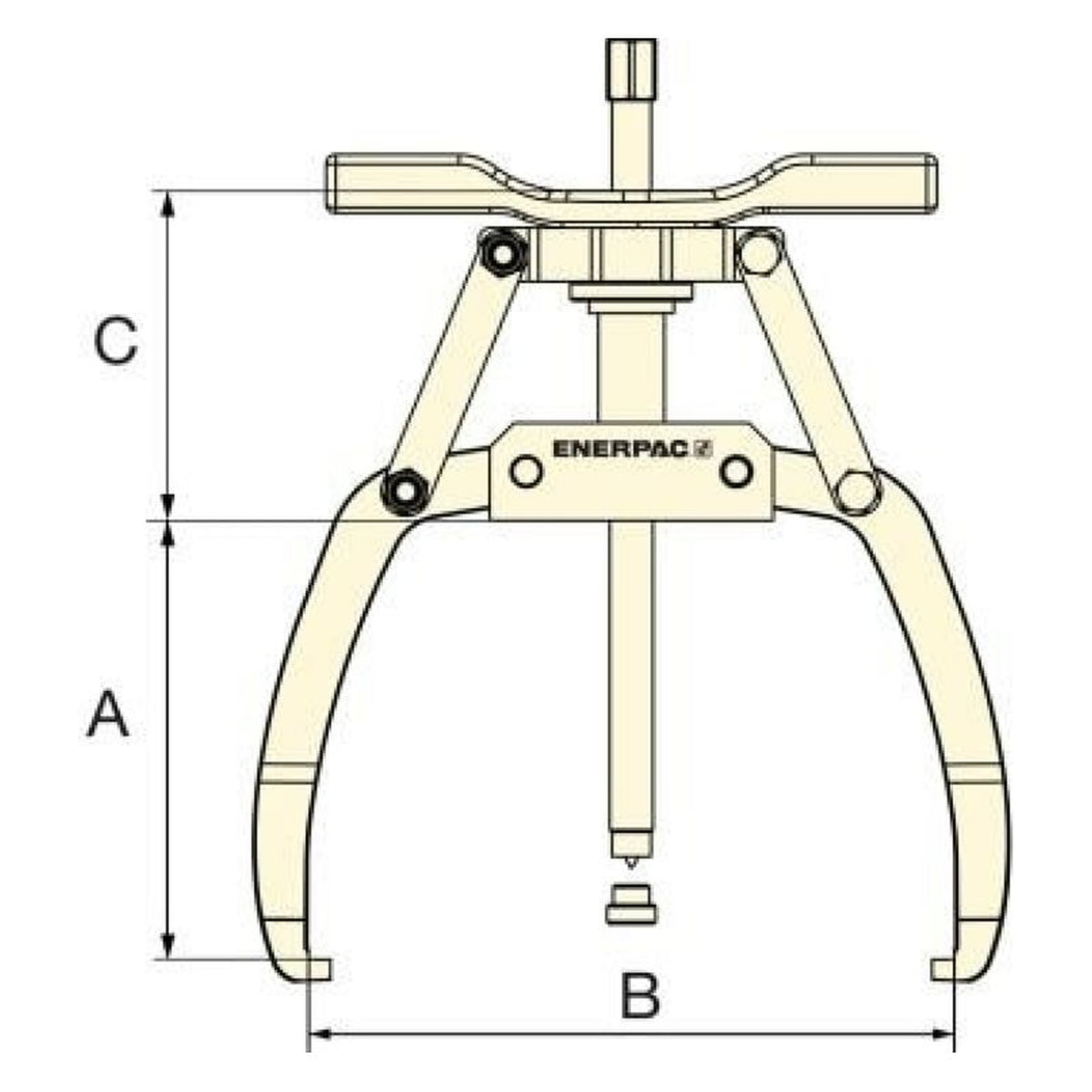

• Dimension A: 215 mm
• Dimension C: 192 mm
• Weight: 13 kg
• Series: LGHMS

In the box

• LGH-Series hydraulic puller, 3 jaw
• Cross puller
• Bearing separator
• Bearing cup puller
• Detachable hollow cylinder
• Hose
• Gauge
• electric pump 230 V

Applications

For shaft, bearing and cross-pulling work. Do not operate the cross puller above 350 bar; with accessories limit the pressure to 7 US-ton (75 kN). A point protector is included. Always wear safety goggles and gloves.
