Pull Hydraulic Cylinder, 24 kN, 127 mm Stroke - Enerpac BRC25

The BRC25 generates pulling forces up to 24 kN over a 127 mm stroke and suits cable and bar tensioning as well as general pulling tasks. Threads on the collar, plunger and base accept chains, saddles and extension tubes.

Benefits

• Single-acting spring return for fast retraction
• Hard chrome-plated plunger for long life and corrosion resistance
• Plunger wiper keeps out contamination and extends service life
• Threads on collar, plunger and base for optional accessories
• CR400 coupler and dust cap included as standard

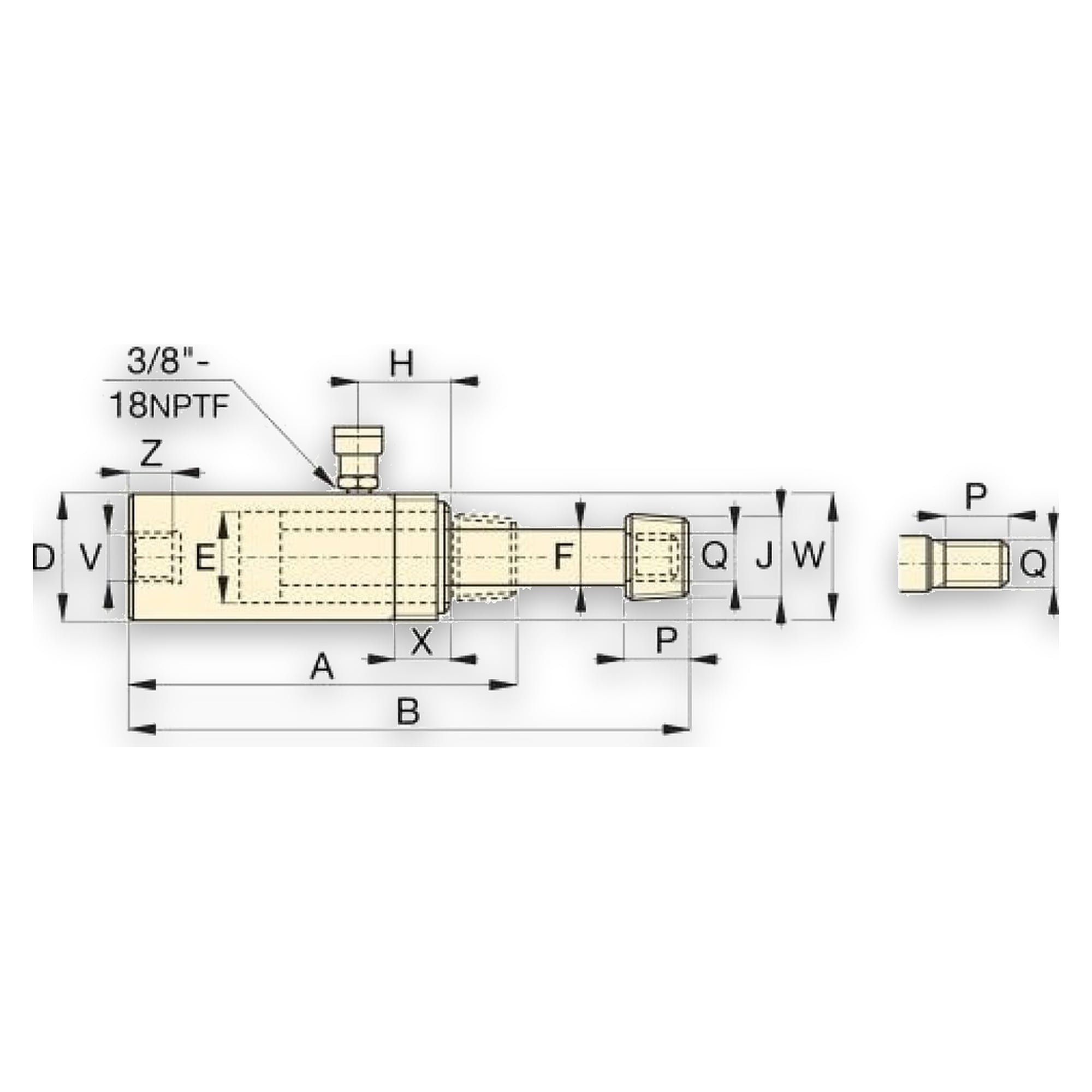

Technical data

• Pulling force: 24 kN
• Stroke: 127 mm
• Operating pressure: 700 bar
• Collapsed height: 264 mm
• Extended height: 391 mm
• Plunger diameter: 19.0 mm
• Weight: 1.8 kg
• Series: BRC

Standards

Complies with ASME B30.1.
