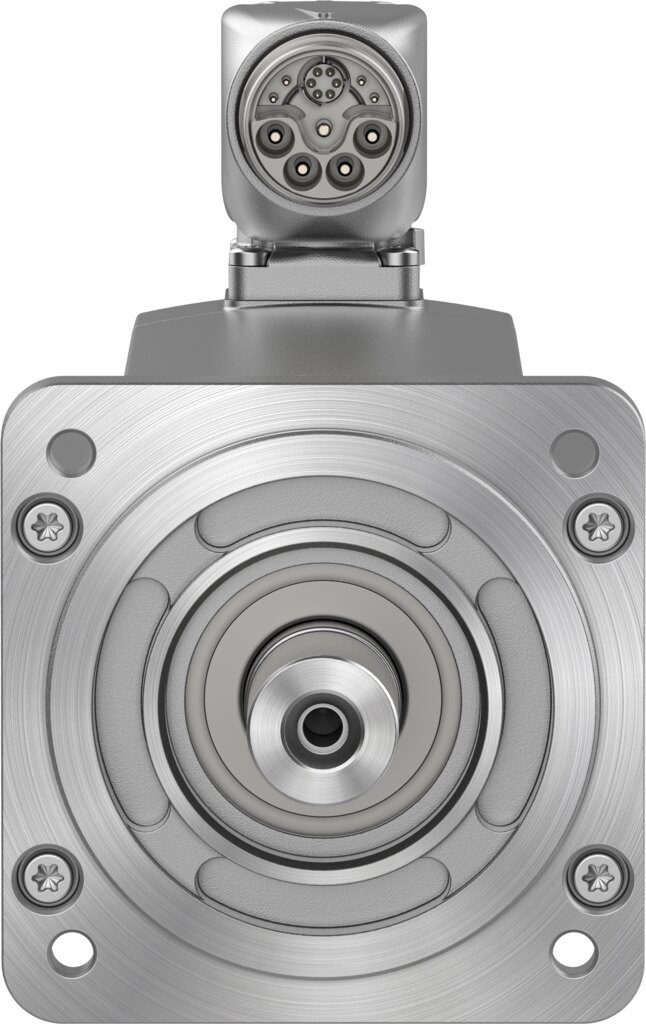

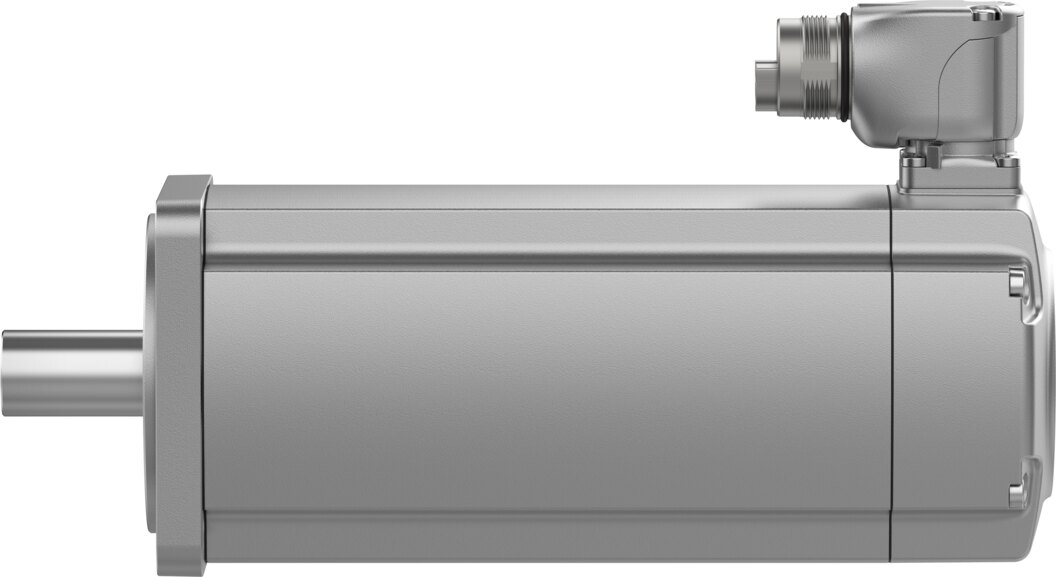

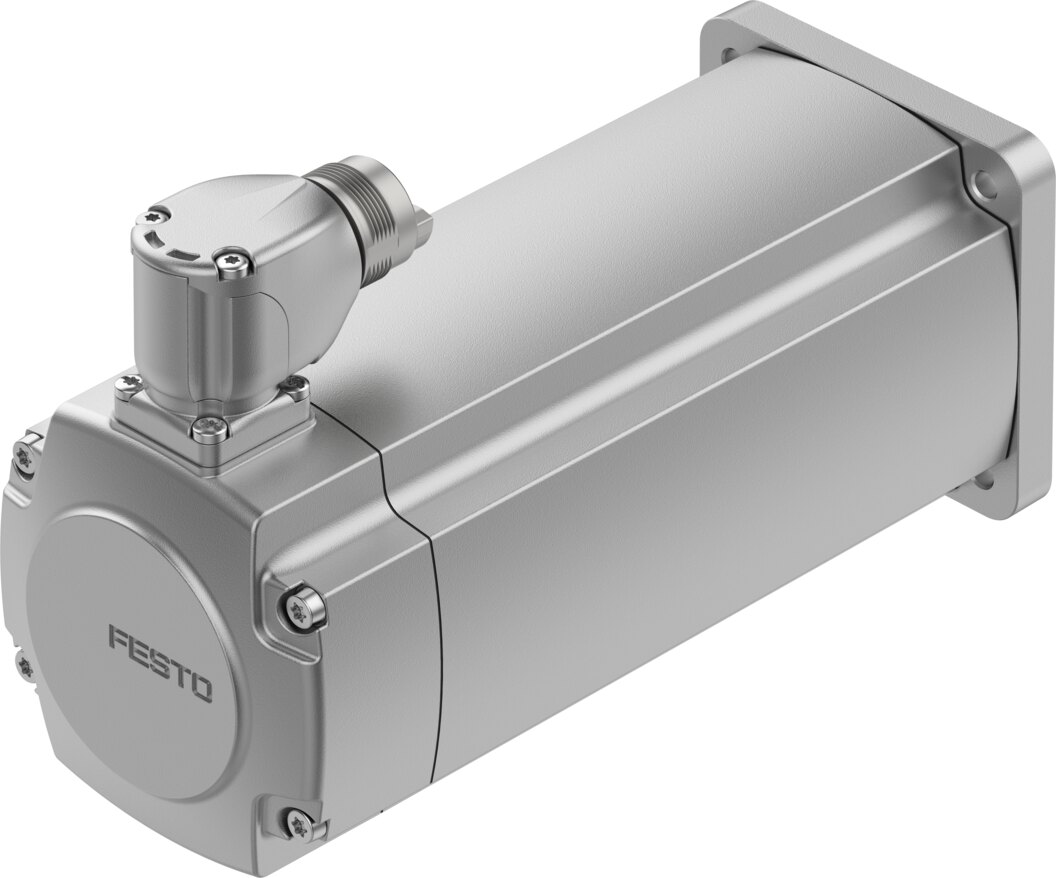

Servo motor 690 W, 2.6 Nm standstill torque, holding brake, multi-turn encoder EMMT-AS-80-M-HS-RMB - Festo 5255440
With 2.6 Nm standstill torque and 6.4 Nm peak torque, the Festo EMMT-AS-80-M-HS-RMB holds and accelerates loads precisely. Rated power 690 W at 3000 1/min, designed for 680 V DC. A multi-turn absolute encoder (EnDat 22) captures the rotor position, the holding brake holds 4.5 Nm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
2.2 Nm nominal torque at 3000 1/min: the Festo EMMT-AS-80-M-HS-RMB servo motor delivers 690 W rated power to the axis. Total moment of inertia is 1.285 kgcm².
Benefits
- Peak torque 6.4 Nm for short cycles and acceleration phases
- Speed up to 6800 1/min, nominal speed 3000 1/min
- Multi-turn absolute encoder with 4096 absolute revolutions, no homing run after power-up
- Holding brake 4.5 Nm, operating voltage 24 V DC
- Cogging torque below 1.0 % of peak torque, smooth running even at low speeds
- Degree of protection IP40, ambient temperature -40 to 40 °C
Application
Typical uses are positioning axes, feed systems and pick-and-place units. Before mounting, match the interface and shaft loads of the EMMT-AS-80-M-HS-RMB to the mechanics.
Technical data
| Type | EMMT-AS-80-M-HS-RMB |
|---|---|
| Festo part no. | 5255440 |
| Weight | 4.1 kg |
| Ambient temperature | -40 to 40 °C |
| Note on ambient temperature | Up to 80°C with derating of -1.5% per degree Celsius |
| Maximum installation height | 4000 m |
| Note on maximum installation height | As of 1,000 m: only with derating of -1.0% per 100 m |
| Storage temperature | -40 to 70 °C |
| Relative air humidity | 0 - 90% |
| Conforms to standard | IEC 60034 |
| Temperature class as per EN 60034-1 | F |
| Maximum winding temperature | 155 °C |
| Rating class as per EN 60034-1 | S1 |
| Temperature monitoring | Digital motor temperature transmission via EnDat® 2.2 |
| Motor type to EN 60034-7 | IM V1, IM V3 |
| Mounting position | Any |
| Degree of protection | IP40 |
| Note on degree of protection | IP67 for motor housing including connection components |
| Concentricity, coaxiality, axial runout to DIN SPEC 42955 | N |
| Balance quality | G 2.5 |
| Detent torque | <,1.0% of peak torque |
| Bearing lifetime under nominal conditions | 20000 h |
| Interface code, motor out | 80P |
| Electrical connection 1, connection type | Hybrid plug |
| Electrical connection 1, connector system | M23x1 |
| Electrical connection 1, number of connections/cores | 15 |
| Electrical connection 1, connection pattern | 00995913 |
| Pollution degree | 2 |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Approval | RCM, c UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Certificate issuing authority | UL E342973 |
| Nominal operating voltage DC | 680 V |
| Type of winding switch | Star inside |
| Number of pole pairs | 5 |
| Standstill torque | 2.6 Nm |
| Nominal torque | 2.2 Nm |
| Peak torque | 6.4 Nm |
| Nominal rotary speed | 3000 1/min |
| Maximum rotational speed | 6800 1/min |
| Maximum mechanical speed | 14000 1/min |
| Angular acceleration | 100000 rad/s² |
| Nominal power rating of motor | 690 W |
| Continuous stall current | 2.6 A |
| Nominal motor current | 2.2 A |
| Peak current | 9 A |
| Motor constant | 1 Nm/A |
| Standstill torque constant | 1.17 Nm/A |
| Voltage constant, phase-to-phase | 70.7 mVmin |
| Phase-phase winding resistance | 7.43 Ohm |
| Phase-phase winding inductance | 31.8 mH |
| Winding longitudinal inductivity Ld (phase) | 19.4 mH |
| Winding cross inductivity Lq (phase) | 23.8 mH |
| Electric time constant | 6.4 ms |
| Thermal time constant | 45 min |
| Thermal resistance | 0.78 K/W |
| Measuring flange | 250 x 250 x 15 mm, steel |
| Total mass moment of inertia of output | 1.285 kgcm² |
| Product weight | 3360 g |
| Permissible axial shaft load | 120 N |
| Permissible radial shaft load | 620 N |
| Rotor position sensor | Absolute encoder, multi-turn |
| Rotor position sensor, manufacturer designation | EQI 1131 |
| Rotor position sensor, absolute detectable revolutions | 4096 |
| Rotor position encoder interface | EnDat 22 |
| Rotor position sensor, encoder measuring principle | Inductive |
| Rotor position sensor, DC operating voltage | 5 V |
| Rotor position sensor, DC operating voltage range | 3.6 to 14 V |
| Rotor position sensor, position values per revolution | 524288 |
| Rotor position transducer resolution | 19 bit |
| Rotor position sensor, system accuracy of angle measurement | -120 to 120 arcsec |
| Brake holding torque | 4.5 Nm |
| Operating voltage DC for brake | 24 V |
| Brake current consumption | 0.5 A |
| Power consumption, brake | 12 W |
| Brake coil resistance | 48 Ohm |
| Brake coil inductivity | 1000 mH |
| Brake separation time | 55 ms |
| Brake closing time | 15 ms |
| DC brake response delay | 3 ms |
| Maximum brake no-load speed | 10000 1/min |
| Maximum friction per braking process | 8200 J |
| Number of emergency stops per hour | 1 |
| Total brake friction | 580 kJ |
| Mass moment of inertia of brake | 0.249 kgcm² |
| Switching cycles holding brake | 10 million idle actuations (without friction work) |
| Mean time to failure (MTTF), subcomponent | 190 years, rotor position encoder |
| Energy efficiency | ENEFF (CN) / Class 2 |
| Manufacturer | Festo |
| Hersteller-Nr | EMMT-AS-80-M-HS-RMB |
| EAN | 4052568460419 |
| Zolltarifnummer | 85015100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Multiturn-Absolutwertgeber, mit Haltebremse |
| Norm | DIN EN 60034-1, DIN EN 60034-7, DIN EN 60034 |
| Series | EMMT |
| Protection rating | IP40 |
| Temperature (max.) | 40 |
