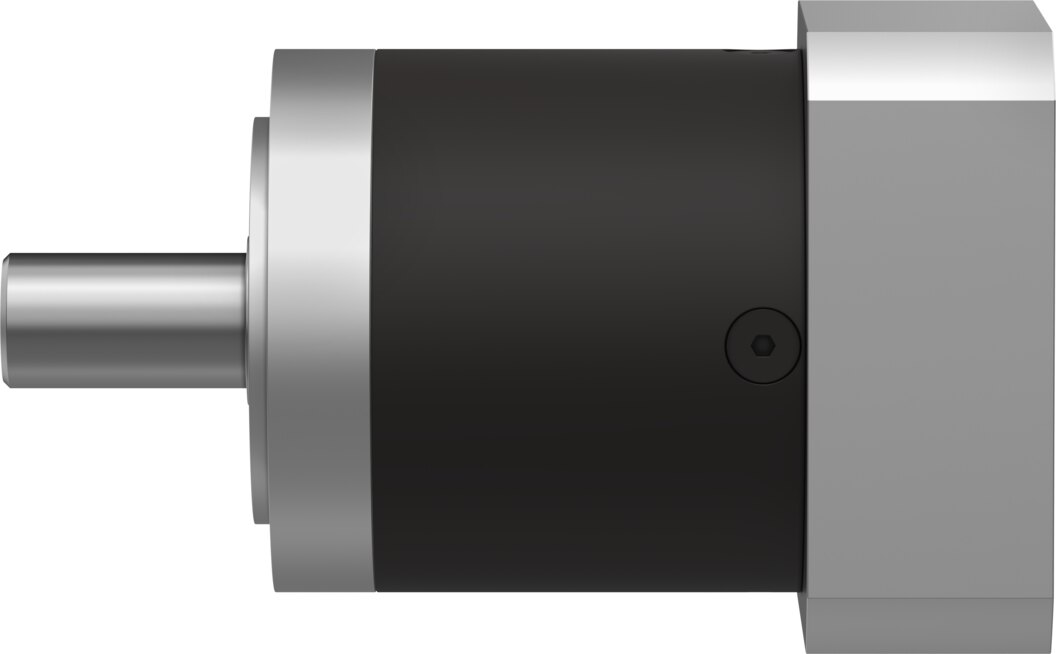

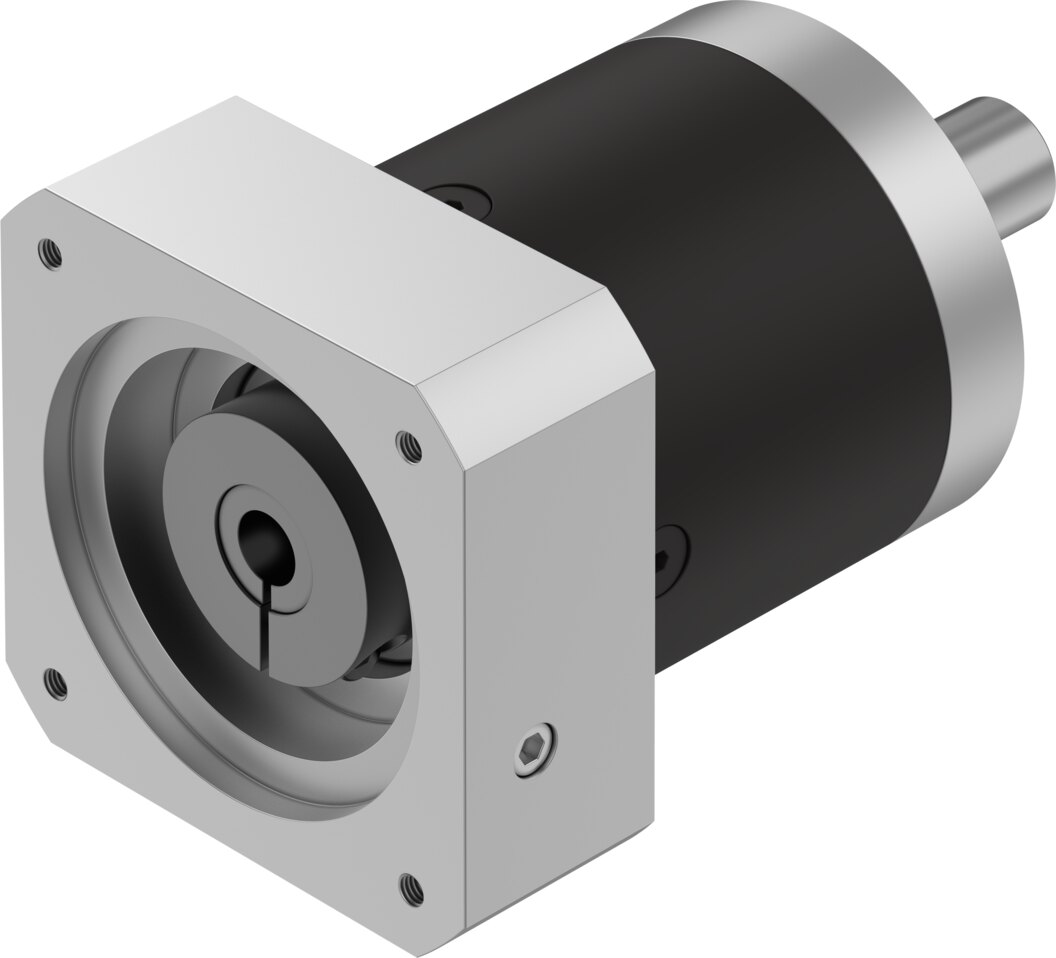

Planetary gear unit 12:1, 120 Nm continuous output torque, flange 80 mm, motor 87 mm EMGA-80-P-G12-SST-87 - Festo 8141767
The EMGA-80-P-G12-SST-87 planetary gear unit reduces motor speed at a ratio of 12:1 and transmits 120 Nm continuously. Torsional backlash 0.15°, efficiency up to 97 %. Motor side flange 87 mm with interface 87A, output side 80 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo EMGA-80-P-G12-SST-87 is a planetary gear unit with a 12:1 ratio and 192 Nm max. output torque.
Benefits
- Ratio 12:1, continuous output torque 120 Nm
- Max. output torque 192 Nm for start-up and braking
- Torsional backlash 0.15° for repeatable positions
- Efficiency up to 97 %
- Torsional stiffness 10.4 Nm/arcmin
- Input speed up to 7000 1/min
Application
The EMGA-80-P-G12-SST-87 reduces speed, multiplies torque by a factor of 12 and improves the inertia ratio between load and motor.
Technical data
| Type | EMGA-80-P-G12-SST-87 |
|---|---|
| Festo part no. | 8141767 |
| Weight | 2.9 kg |
| Gear unit flange size | 80 mm |
| Motor flange size | 87 mm |
| Torsional backlash | 0.15° |
| Type of gear unit | Planetary gear set |
| Gear unit ratio | 12:1 |
| Maximum drive speed | 7000 1/min |
| Operating temperature of gear unit | -25 to 90 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 120 Nm |
| Mass moment of inertia of gear unit | 0.589 kgcm² |
| Maximum output torque | 192 Nm |
| Maximum efficiency | 97 % |
| Torsional rigidity | 10.4 Nm/arcmin |
| Product weight | 2600 g |
| Permissible axial shaft load | 1000 N |
| Permissible radial shaft load | 750 N |
| Gear unit interface, output shaft | 80G |
| Gear unit interface, drive shaft | 87A |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EMGA-80-P-G12-SST-87 |
| EAN | 4052568565435 |
| Zolltarifnummer | 84834090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Planetengetriebe 12:1 |
| Series | EMGA |
| Protection rating | IP54 |
| Temperature (max.) | 90 |
