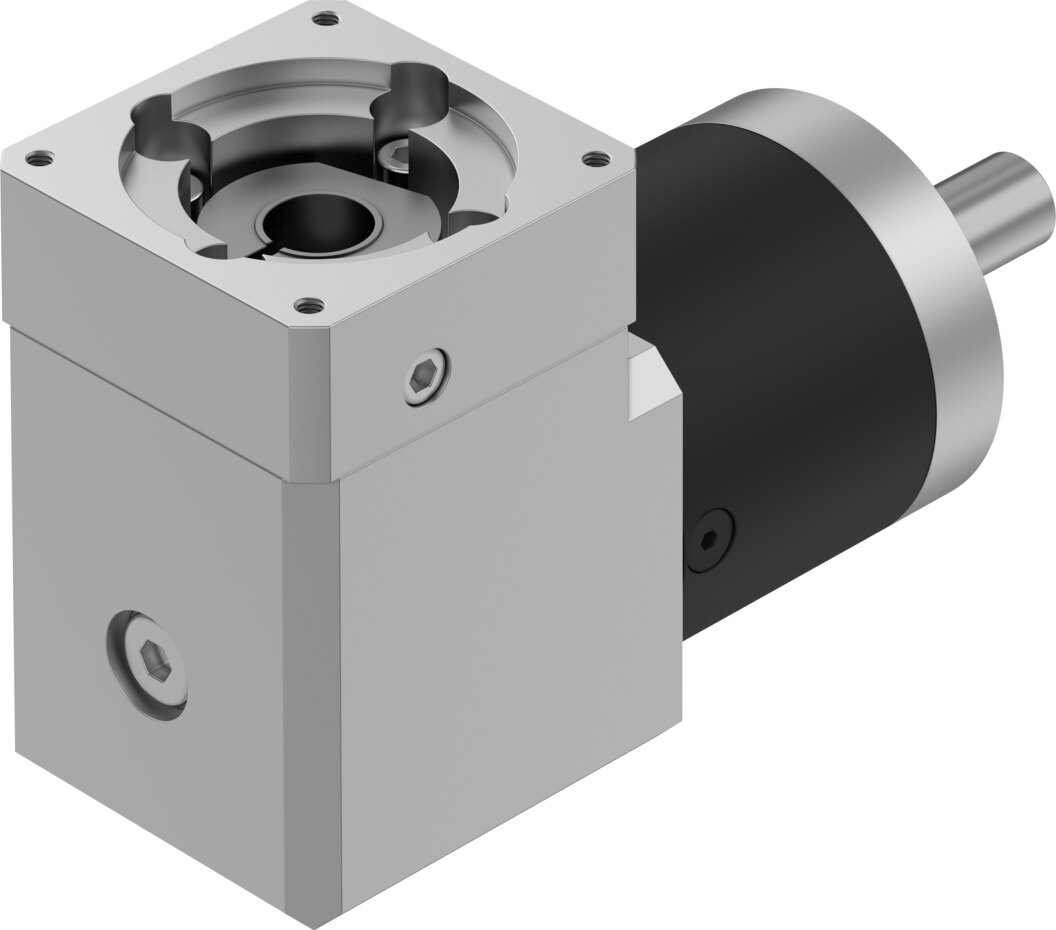

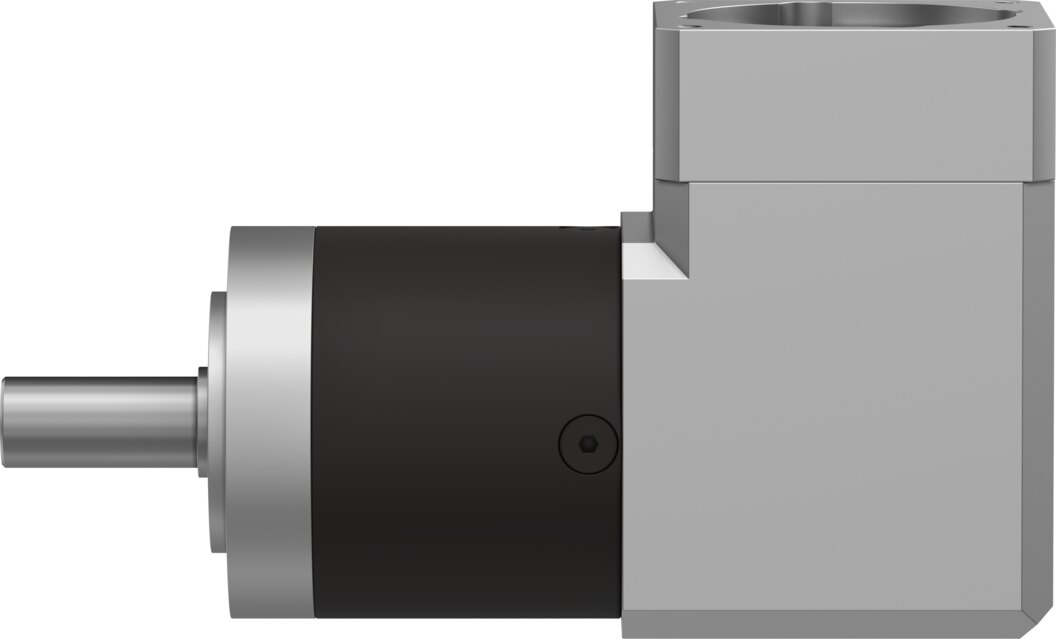

Right-angle gear unit 20:1, 44 Nm continuous output torque, flange 60 mm, motor 60 mm EMGA-60-A-G20-60P - Festo 8141740

Festo ✓ Original product Brand new

With a 20:1 ratio and 44 Nm continuous output torque, the Festo EMGA-60-A-G20-60P matches motor power to the load. Torsional backlash 0.3°, efficiency up to 92 %. Motor side flange 60 mm with interface 60P, output side 60 mm.

Net
€1,057.87
excl. VAT
Item FES-8141740
Manufacturer no. EMGA-60-A-G20-60P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

44 Nm continuously at the output with a 20:1 ratio: the Festo EMGA-60-A-G20-60P right-angle gear unit sits between motor and axis.

Benefits

  • Ratio 20:1, continuous output torque 44 Nm
  • Max. output torque 70 Nm for start-up and braking
  • Torsional backlash 0.3° for repeatable positions
  • Efficiency up to 92 %
  • Torsional stiffness 2 Nm/arcmin
  • Input speed up to 13000 1/min

Application

The right-angle gear unit turns the drive by 90° and saves installation space in the axis direction. Before ordering, check flange 60 mm and interface 60P against the motor.

Technical data

TypeEMGA-60-A-G20-60P
Festo part no.8141740
Weight2 kg
Gear unit flange size60 mm
Motor flange size60 mm
Torsional backlash0.3°
Type of gear unitRight-angle gear unit
Gear unit ratio20:1
Maximum drive speed13000 1/min
Operating temperature of gear unit-25 to 90 °C
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP54
Continuous output torque44 Nm
Mass moment of inertia of gear unit0.256 kgcm²
Maximum output torque70 Nm
Maximum efficiency92 %
Torsional rigidity2 Nm/arcmin
Product weight1900 g
Permissible axial shaft load500 N
Permissible radial shaft load400 N
Gear unit interface, output shaft60G
Gear unit interface, drive shaft60P
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEMGA-60-A-G20-60P
EAN4052568565190
Zolltarifnummer84834090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungWinkelgetriebe 20:1
SeriesEMGA
Protection ratingIP54
Temperature (max.)90
