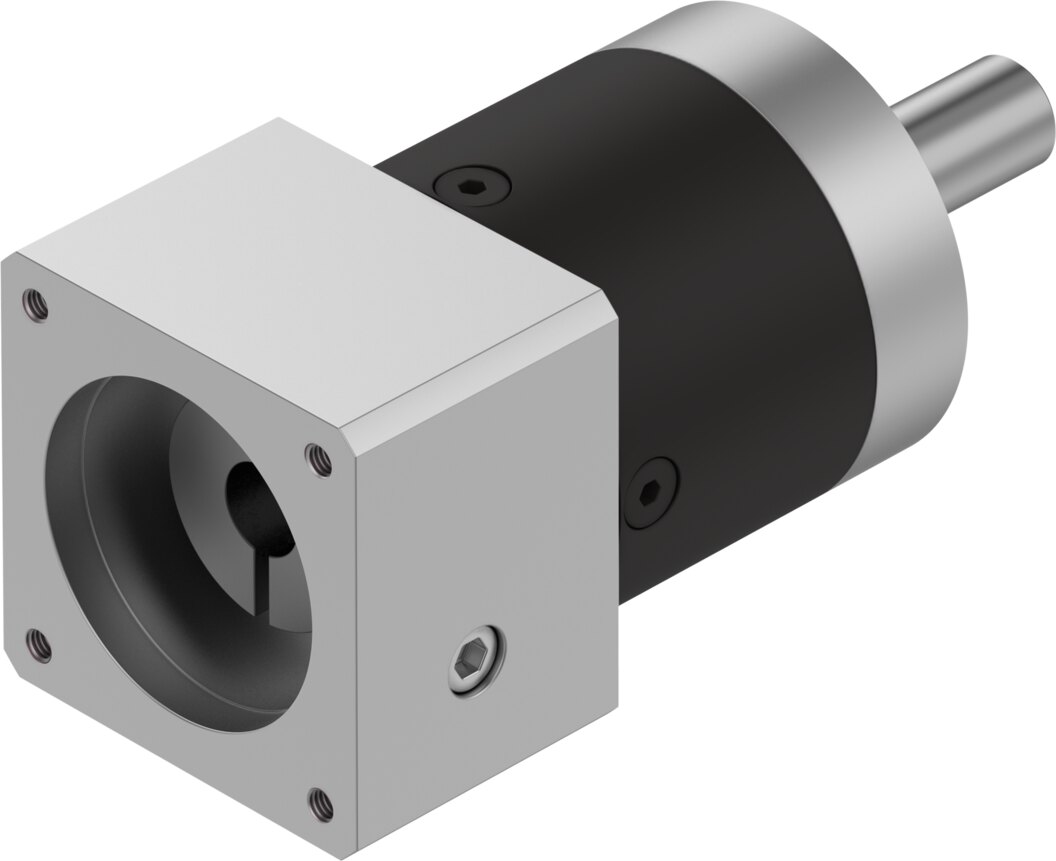

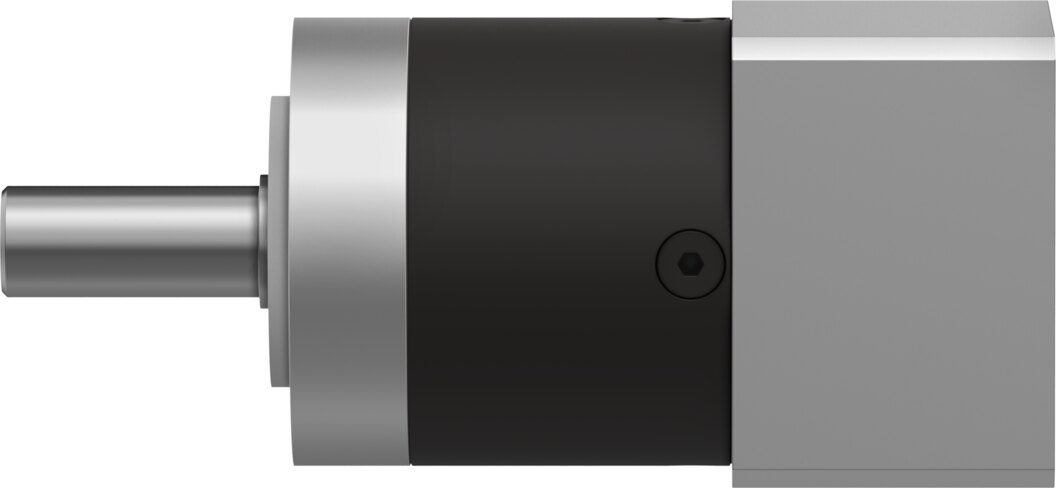

Planetary gear unit 8:1, 6 Nm continuous output torque, flange 40 mm, motor 40 mm EMGA-40-P-G8-EAS-40 - Festo 8141729

Festo ✓ Original product Brand new

With a 8:1 ratio and 6 Nm continuous output torque, the Festo EMGA-40-P-G8-EAS-40 matches motor power to the load. Torsional backlash 0.25°, efficiency up to 96 %. Motor side flange 40 mm with interface 40P, output side 40 mm.

Net
€428.13
excl. VAT
Item FES-8141729
Manufacturer no. EMGA-40-P-G8-EAS-40
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Planetary gear unit EMGA-40-P-G8-EAS-40: ratio 8:1, torsional backlash 0.25°, 40 mm flange on the output side.

Benefits

  • Ratio 8:1, continuous output torque 6 Nm
  • Max. output torque 10 Nm for start-up and braking
  • Torsional backlash 0.25° for repeatable positions
  • Efficiency up to 96 %
  • Torsional stiffness 0.85 Nm/arcmin
  • Input speed up to 18000 1/min

Application

Used between motor and axis, for example on toothed belt axes and rotary modules. Before mounting, check flange 40 mm and shaft loads of the EMGA-40-P-G8-EAS-40.

Technical data

TypeEMGA-40-P-G8-EAS-40
Festo part no.8141729
Weight0.41 kg
Gear unit flange size40 mm
Motor flange size40 mm
Torsional backlash0.25°
Type of gear unitPlanetary gear set
Gear unit ratio8:1
Maximum drive speed18000 1/min
Operating temperature of gear unit-25 to 90 °C
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP54
Continuous output torque6 Nm
Mass moment of inertia of gear unit0.015 kgcm²
Maximum output torque10 Nm
Maximum efficiency96 %
Torsional rigidity0.85 Nm/arcmin
Product weight350 g
Permissible axial shaft load200 N
Permissible radial shaft load200 N
Gear unit interface, output shaft40G
Gear unit interface, drive shaft40P
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEMGA-40-P-G8-EAS-40
EAN4052568565084
Zolltarifnummer84834090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungPlanetengetriebe 8:1
SeriesEMGA
Protection ratingIP54
Temperature (max.)90
