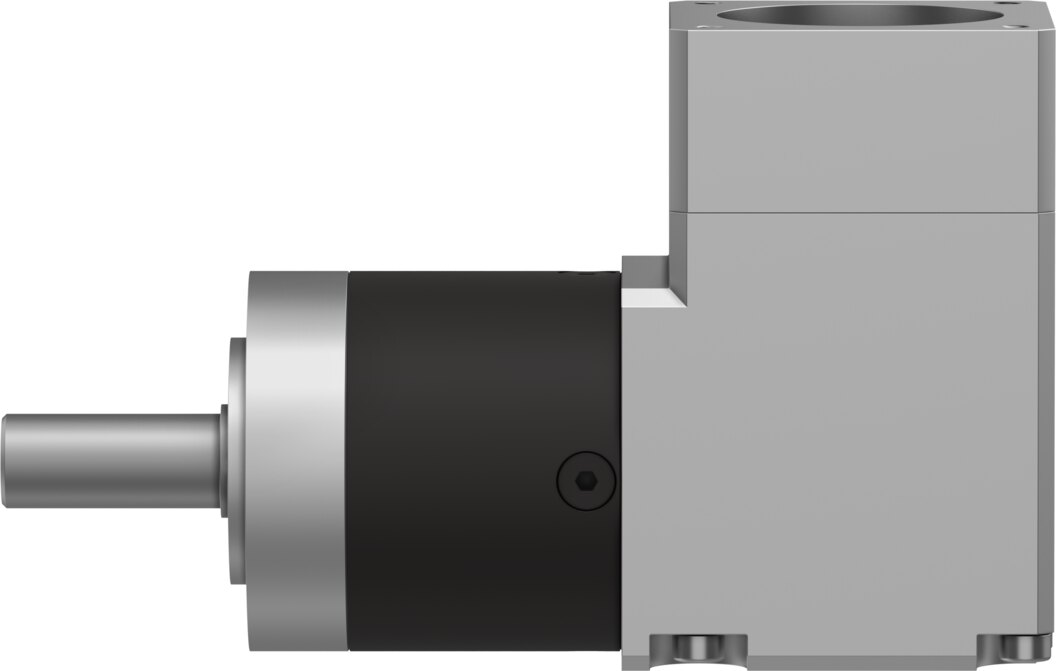

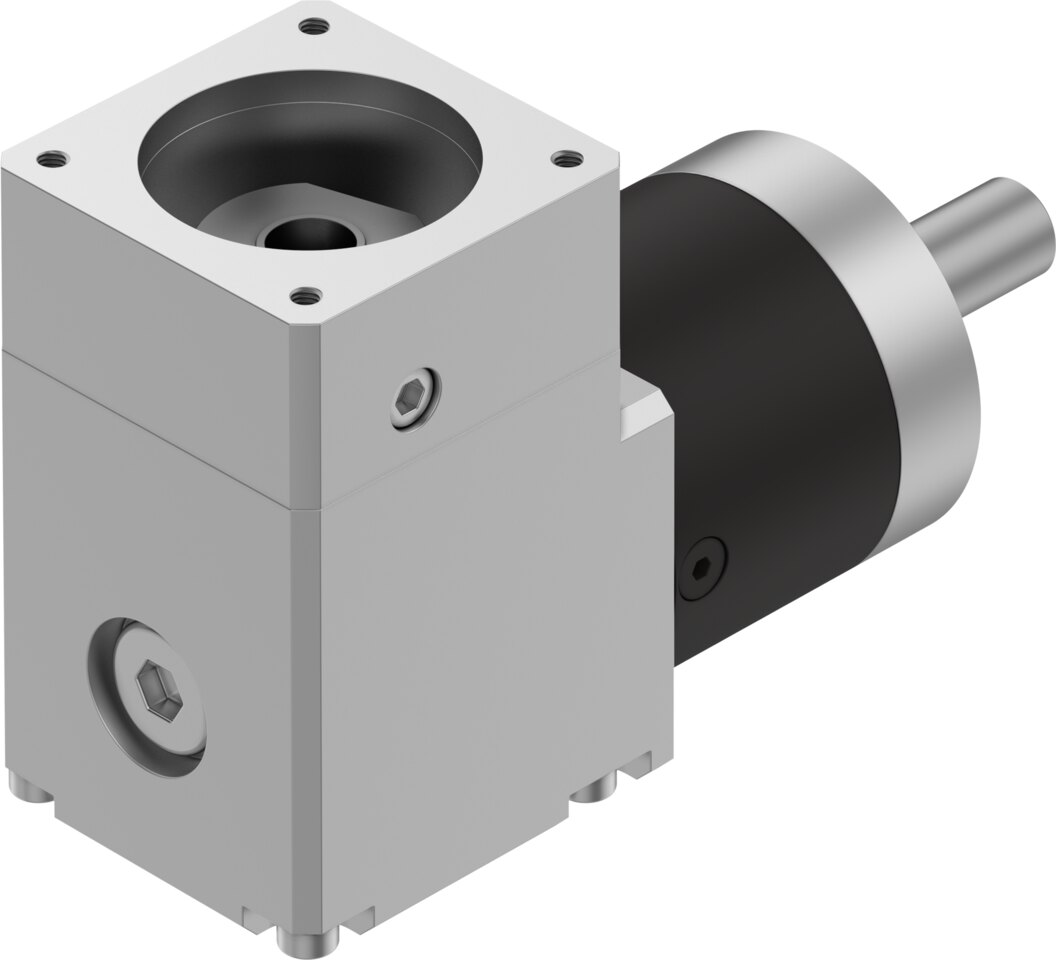

Right-angle gear unit 8:1, 6 Nm continuous output torque, flange 40 mm, motor 40 mm EMGA-40-A-G8-40P - Festo 8141732
With a 8:1 ratio and 6 Nm continuous output torque, the Festo EMGA-40-A-G8-40P matches motor power to the load. Torsional backlash 0.35°, efficiency up to 92 %. Motor side flange 40 mm with interface 40P, output side 40 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
6 Nm continuously at the output with a 8:1 ratio: the Festo EMGA-40-A-G8-40P right-angle gear unit sits between motor and axis.
Benefits
- Ratio 8:1, continuous output torque 6 Nm
- Max. output torque 10 Nm for start-up and braking
- Torsional backlash 0.35° for repeatable positions
- Efficiency up to 92 %
- Torsional stiffness 0.7 Nm/arcmin
- Input speed up to 18000 1/min
Application
The right-angle gear unit turns the drive by 90° and saves installation space in the axis direction. Before ordering, check flange 40 mm and interface 40P against the motor.
Technical data
| Type | EMGA-40-A-G8-40P |
|---|---|
| Festo part no. | 8141732 |
| Weight | 0.7 kg |
| Gear unit flange size | 40 mm |
| Motor flange size | 40 mm |
| Torsional backlash | 0.35° |
| Type of gear unit | Right-angle gear unit |
| Gear unit ratio | 8:1 |
| Maximum drive speed | 18000 1/min |
| Operating temperature of gear unit | -25 to 90 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 6 Nm |
| Mass moment of inertia of gear unit | 0.032 kgcm² |
| Maximum output torque | 10 Nm |
| Maximum efficiency | 92 % |
| Torsional rigidity | 0.7 Nm/arcmin |
| Product weight | 500 g |
| Permissible axial shaft load | 200 N |
| Permissible radial shaft load | 200 N |
| Gear unit interface, output shaft | 40G |
| Gear unit interface, drive shaft | 40P |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EMGA-40-A-G8-40P |
| EAN | 4052568565114 |
| Zolltarifnummer | 84834090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Winkelgetriebe 8:1 |
| Series | EMGA |
| Protection rating | IP54 |
| Temperature (max.) | 90 |
