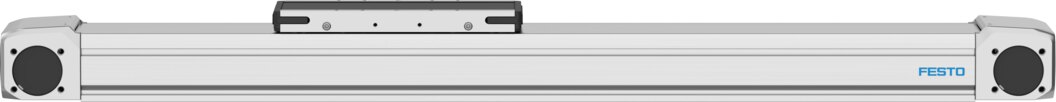

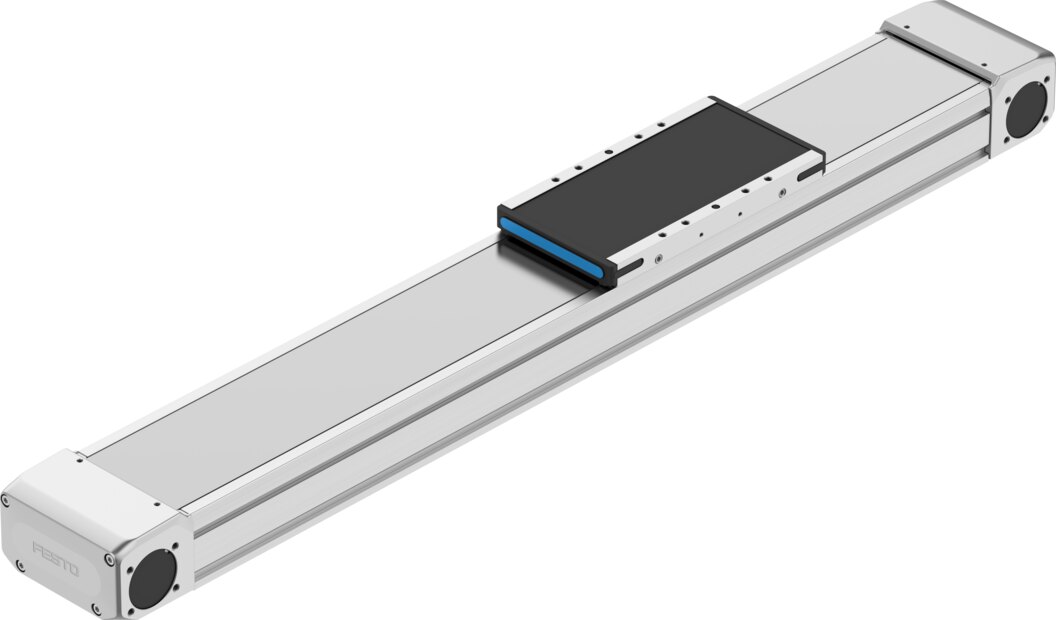

Toothed belt axis stroke 300 mm up to 3 m/s ELGD-TB-KF-WD-100-300-0H-L-PU2 - Festo 8192375

Festo ✓ Original product Brand new

With a 300 mm stroke and ±0.04 mm repeatability, the toothed belt axis ELGD-TB-KF-WD-100-300-0H-L-PU2 handles exact positioning tasks. Toothed belt with 3 mm pitch and 84 mm/U feed constant, feed force up to 240 N and travel speed up to 3 m/s.

Net
€959.67
excl. VAT
Item FES-8192375
Manufacturer no. ELGD-TB-KF-WD-100-300-0H-L-PU2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo toothed belt axis ELGD-TB-KF-WD-100-300-0H-L-PU2 at a glance: 300 mm stroke, size 100, up to 3 m/s. The toothed belt with 3 mm pitch delivers 84 mm feed per revolution, allowing speeds up to 3 m/s at 100 m/s² acceleration.

Advantages

  • Positions repeatable within ±0.04 mm.
  • Feed force up to 240 N in the direction of motion.
  • Up to 3 m/s and 100 m/s² acceleration for short cycle times.
  • Recirculating ball bearing guide for transverse forces up to 4376 N and moments up to 130 Nm.
  • Lifetime lubrication, reference service life 5000 km.
  • Cleanroom class 6 to ISO 14644-1 (extraction: class 4).

Application

The toothed belt axis ELGD-TB-KF-WD-100-300-0H-L-PU2 suits long, fast travel over 300 mm in handling and gantry systems. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 0.01 kg.

Technical data

TypeELGD-TB-KF-WD-100-300-0H-L-PU2
Effective diameter of drive pinion26.74 mm
Working stroke300 mm
Size100
Stroke reserve0 mm
Toothed-belt pitch3 mm
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith toothed belt
Type of motorStepper motor, servo motor
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration100 m/s²
Maximum speed3 m/s
Repetition accuracy±0.04 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), class 6 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.00075 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy347100 mm⁴
2nd moment of area Iz2268000 mm⁴
Maximum drive torque3.2 Nm
Maximum force Fy4376 N
Maximum force Fz4286 N
Maximum force Fy total axis4092 N
Maximum force Fz total axis2250 N
Fy at theoretical life value of 100 km (only guide consideration)18415 N
Fz at theoretical life value of 100 km (only guide consideration)18415 N
Maximum idle running transfer resistance29.9 N
Maximum moment Mx130 Nm
Maximum moment My200 Nm
Maximum moment Mz200 Nm
Maximum moment Mx total axis150 Nm
Maximum moment My total axis191 Nm
Maximum moment Mz total axis270 Nm
Mx at theoretical life value of 100 km (only guide consideration)645 Nm
My at theoretical life value of 100 km (only guide consideration)720 Nm
Mz at theoretical life value of 100 km (only guide consideration)720 Nm
Distance between slide surface and guide centre47 mm
Maximum feed force Fx240 N
Frictional torque independent of load0.4 Nm
Torsional mass moment of inertia It108900 mm⁴
Mass moment of inertia JH per metre of stroke0.2252 kgcm²
Mass moment of inertia JL per kg of working load1.7876 kgcm²
Mass moment of inertia JO2.9542 kgcm²
Feed constant84 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass1337 g
Product weight5514 g
Basic weight for 0 mm stroke3864 g
Additional weight per 10 mm stroke55 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorL38
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material pulleysHigh-alloy stainless steel
Material slideWrought aluminium alloy
Material toothed beltPolyurethane with steel cord
Weight (price list)0.01 kg
Weight0.01 kg
ManufacturerFesto
Hersteller-NrELGD-TB-KF-WD-100-300-0H-L-PU2
EAN4052568645113
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]300
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
