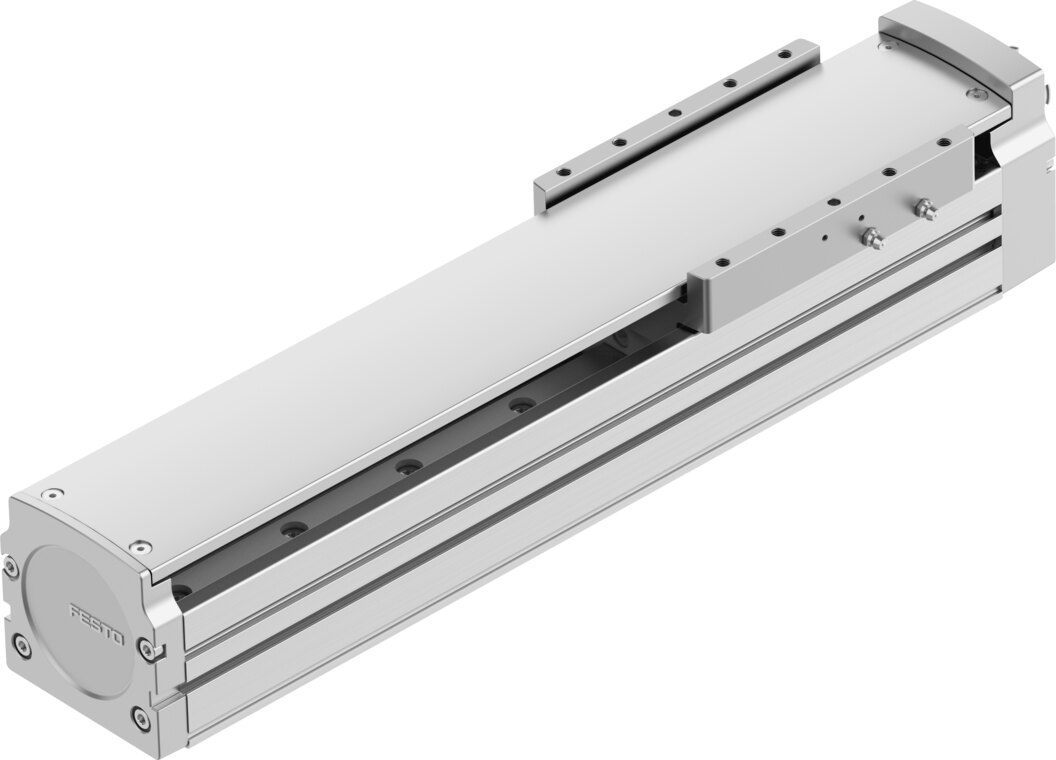

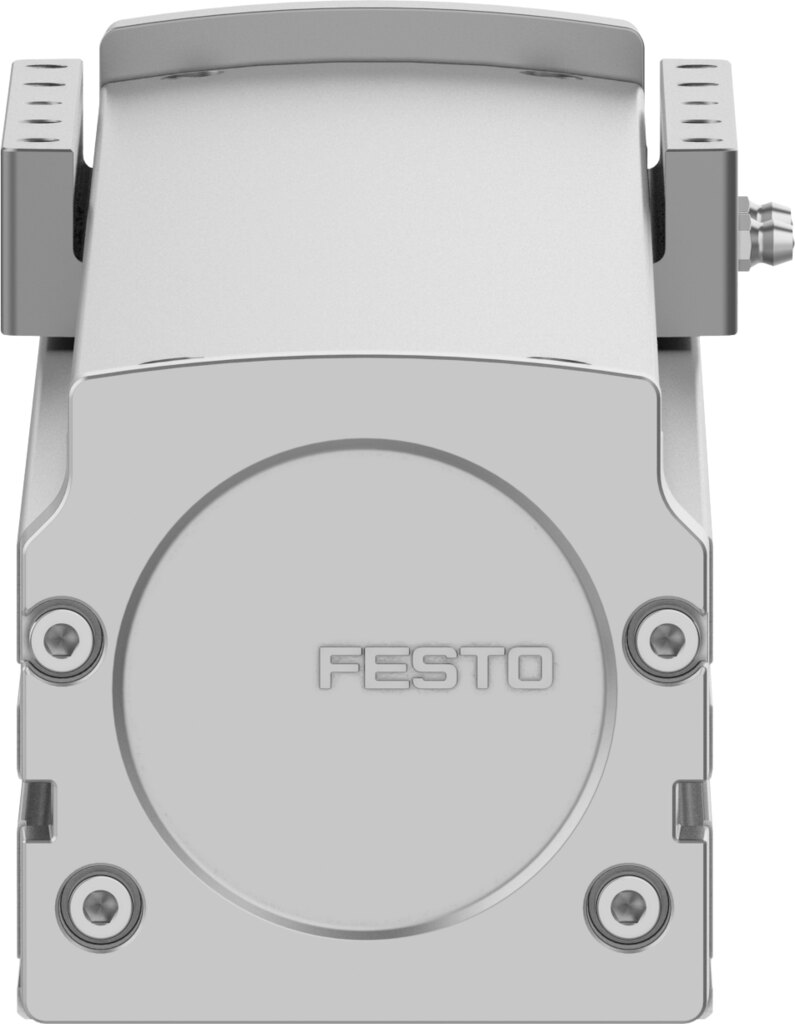

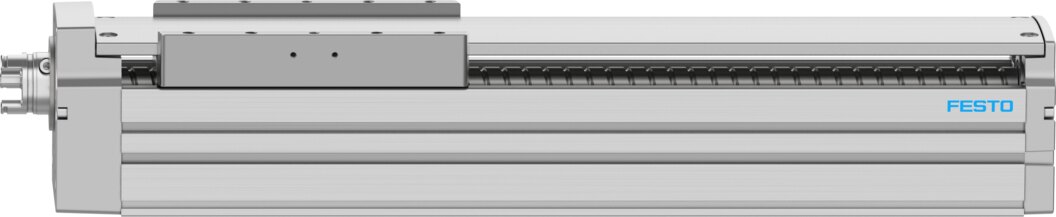

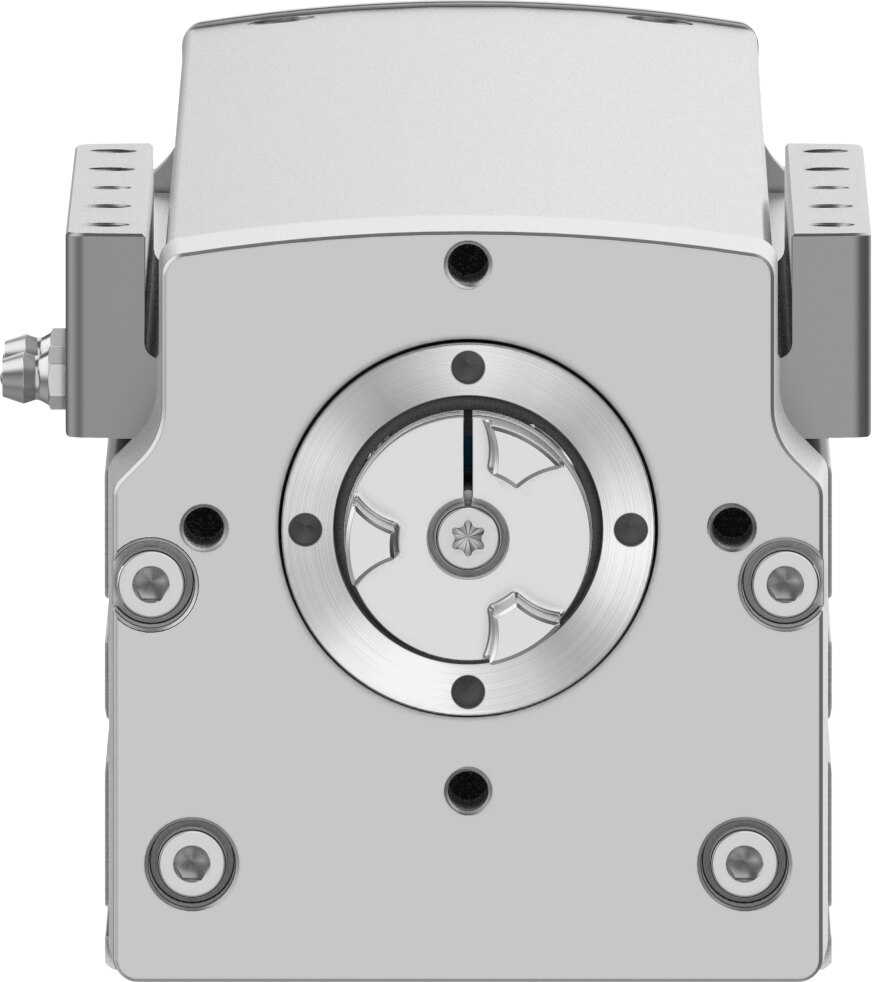

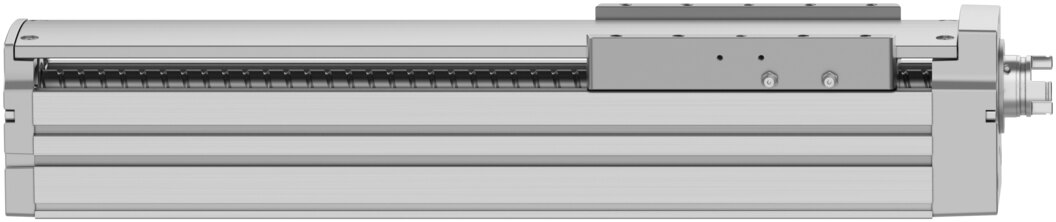

Ball screw axis size 90 stroke 250 mm pitch 20 mm ELGT-BS-90-250-20P - Festo 8124422

Festo ✓ Original product Brand new

Over a working stroke of 250 mm, the ball screw axis ELGT-BS-90-250-20P positions loads in size 90 at up to 1 m/s. 810 N of feed force and ±0.02 mm repetition accuracy make the movement strong and repeatable. Per motor revolution the slide travels 20 mm via the ball screw. Festo part number 8124422.

Net
€1,567.15
excl. VAT
Item FES-8124422
Manufacturer no. ELGT-BS-90-250-20P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

250 mm of working stroke, up to 1 m/s and ±0.02 mm repetition accuracy: these are the key values of the Festo ball screw axis ELGT-BS-90-250-20P in size 90.

Why this axis

  • Up to 1 m/s travel speed and 15 m/s² acceleration for short cycle times
  • Repetition accuracy of ±0.02 mm for reproducible positions
  • Feed force up to 810 N
  • Recirculating ball bearing guide for transverse forces up to 4710 N (Fy) and 5600 N (Fz) and moments up to 51 Nm (My)
  • Spindle pitch of 20 mm/rev with a 15 mm spindle diameter for a defined feed per revolution
  • Cleanroom suitable: Class 6 according to ISO 14644-1

Applications

Typical uses are infeed axes, test stations and joining processes with 250 mm of travel in size 90. Suitable drives are stepper and servo motors, with motor mounting to interface code T46 for the ELGT-BS-90-250-20P. Any mounting position is possible.

Technical data

TypeELGT-BS-90-250-20P
Festo part number8124422
Working stroke250 mm
Size90
Stroke reserve0 mm
Reversing backlash, theoretical150 µm
Spindle diameter15 mm
Spindle pitch20 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use, Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Maximum acceleration15 m/s²
Maximum rotational speed3000 1/min
Maximum speed1 m/s
Repetition accuracy±0.02 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Degree of protectionIP20
Ambient temperature0 to 50 °C
Continuous feed force810 N
2nd moment of area Iy631000 mm⁴
2nd moment of area Iz1948000 mm⁴
Idle torque at vmax0.2 Nm
Idle torque at vmin0.04 Nm
Maximum force Fy4710 N
Maximum force Fz5600 N
Fy at theoretical life value of 100 km (only guide consideration)17352 N
Fz at theoretical life value of 100 km (only guide consideration)20631 N
Maximum moment Mx65 Nm
Maximum moment My51 Nm
Maximum moment Mz51 Nm
Mx at theoretical life value of 100 km (only guide consideration)239 Nm
My at theoretical life value of 100 km (only guide consideration)188 Nm
Mz at theoretical life value of 100 km (only guide consideration)188 Nm
Maximum radial force at drive shaft290 N
Maximum feed force Fx810 N
Torsional mass moment of inertia It151000 mm⁴
Mass moment of inertia JH per metre of stroke0.2522 kgcm²
Mass moment of inertia JL per kg of working load0.1013 kgcm²
Mass moment of inertia JO0.2291 kgcm²
Feed constant20 mm/U
Moving mass1645 g
Product weight6911 g
Basic weight for 0 mm stroke4353 g
Additional weight per 10 mm stroke104 g
Dynamic deflection (moving load)0.05% of the axis length, max, 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT46
Material end capPainted die cast aluminium
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material drive coverPainted die cast aluminium
Material guide slideSteel
Material guide railSteel
Material slideAnodised wrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
ManufacturerFesto
Hersteller-NrELGT-BS-90-250-20P
EAN4052568554927
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]250
Housing materialAluminium, anodised
Protection ratingIP20
Temperaturbereich0-50 °C
Temperature (max.)50
